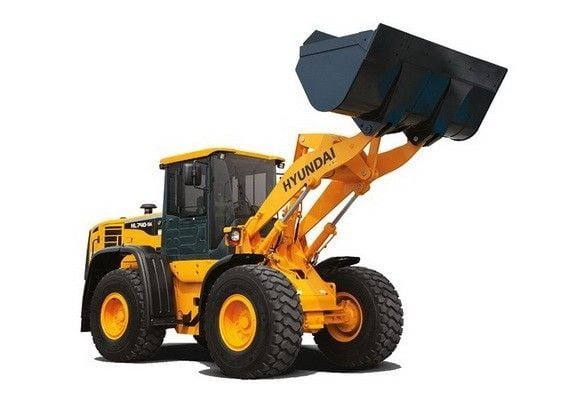

Hyundai HL740XTD-7

Series: Hyundai Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the HL740XTD-7, Hyundai offers a model from the Hyundai Wheel Loader series. The engine delivers 134.8 hp (104.4 kW), with a displacement of 5,901 cm³. Torque is 588.4 Nm. Rated speed is 2,200 rpm. The unladen weight is 11,847.8 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 417.6 mm. The tank holds 228.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 177.2 l/min. The hydraulic tank holds 165 litres. The cooling system holds 35.2 litres. The electrical system runs on 24 V. The engine fitted is the QSB5,9-C. Tyre size: 20,5-25. 16 PR L3. The Hyundai Wheel Loader series covers 36 models. Rated output within it ranges from 126.7 to 352.8 hp; the HL740XTD-7 sits at the bottom of that range with 134.8 hp. Its immediate neighbours are the HL730XTD-7A below it with 126.7 hp and the HL740-7A above it with 139.9 hp. 391 Hyundai models across 22 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSB5.9-Ccorrect
Power134.8 hp (104.4 kW)correct
Rated speed2,200 rpmcorrect
Torque588.4correct
Speed at max. torque1,500 rpmcorrect
Displacement5,901 cm³correct
Aspirationturbochargedcorrect
Coolant capacity35.2 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance417.6correct
Unladen weight11,847.8 kgcorrect

Drivetrain and chassis

Gearbox type3-elements, single-stage single-phasecorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5-25, 16 PR L3correct
System voltage24 Vcorrect

Working data

Pump flow177.2 l/mincorrect
Hydraulic oil capacity165 lcorrect
Fuel tank capacity228.3 lcorrect

Other data

Height3,261.4correct

Where this model stands

Power-to-weight ratio: 8.8 kW/t (104 kW / 11.8 t)

Stronger than 53% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hyundai HL740XTD-7 have?

The Hyundai HL740XTD-7 delivers 135 hp.

How much does the Hyundai HL740XTD-7 weigh?

The unladen weight is 11,848 kg.

What engine does the Hyundai HL740XTD-7 have?

5,901 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
