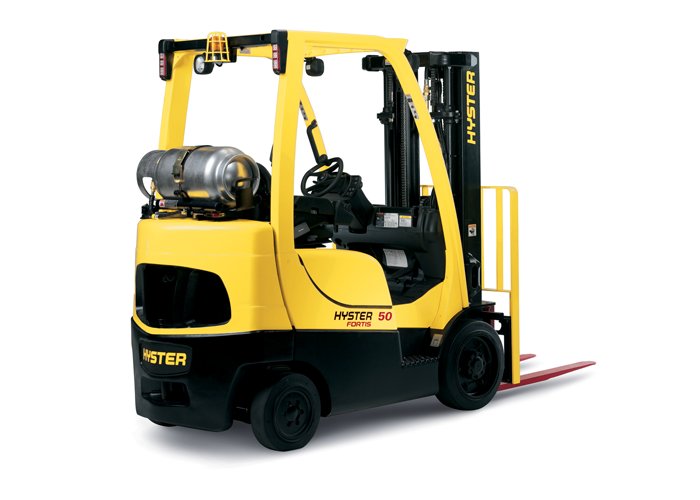

Hyster S55FTS (Fortis)
Series: Hyster Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hyster forklifts — drive type, capacity, series
A Hyster designation has three parts. The leading letter gives the drive type: H for internal-combustion trucks, E for electric. The number that follows denotes capacity — in the European ranges in tonnes, as the factory designation H2.0-3.0XT for the 2,000 to 3,000 kg band shows. The letters at the end mark the series.
Read on 3 more paragraphs
Those series codes are the real key to the build year. FT, XT and A stand for successive generations of the same basic concept; the FT series, for instance, was designed for the Stage V emissions standard. Two trucks of identical capacity can therefore be years apart technically — the number alone says nothing about it.
Above the standard classes the designation grows longer. An H210HD is a rough-terrain truck with a rated capacity of 9.53 tonnes at a 1,220 mm load centre on pneumatic tyres. The HD code marks this heavy-duty version; trailing digits as in H210HD2 indicate the generation.
When comparing two offers the load centre matters as much as the capacity. A rated capacity always applies to a specific load centre distance — move the load forward and the permissible mass drops sharply. That figure is on the data plate and in the machine's capacity chart, not in the model designation.
Sources: Hyster: H2.0-3.0XT, LECTURA Specs, Hyster: H2.0-3.5FT
Technical data
Engine
| Engine model | 2.0Lcorrect |
|---|---|
| Fuel | LP/Gascorrect |
| Rated speed | 2,600 rpmcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,000.9 cm³correct |
Dimensions and weights
| Width | 1,109.5correct |
|---|---|
| Wheelbase | 1,432.6correct |
| Ground clearance | 91.2correct |
| Unladen weight | 4,184 kgcorrect |
Drivetrain and chassis
| Tyre type | cushion tyrescorrect |
|---|---|
| Top speed | 16.7 km/hcorrect |
| Turning radius | 1,940 mmcorrect |
Working data
| Lifting capacity | 2,495 kgcorrect |
|---|---|
| Lift height | 3,290 mmcorrect |
Other data
| Lift speed | 33.5 m/mincorrect |
|---|---|
| Mast tilt back | 8°correct |
| Mast tilt forward | 5°correct |
More machines with this engine (2.0L, 9)
Frequently asked questions
How much does the Hyster S55FTS (Fortis) weigh?
The unladen weight is 4,184 kg.
What engine does the Hyster S55FTS (Fortis) have?
4 cylinders, 2,001 cm³ displacement, LP/Gas.
How fast does the Hyster S55FTS (Fortis) go?
Top speed is 16.7 km/h.
What is the load capacity of the Hyster S55FTS (Fortis)?
Load capacity is 2,495 kg, lift height 3,290 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
