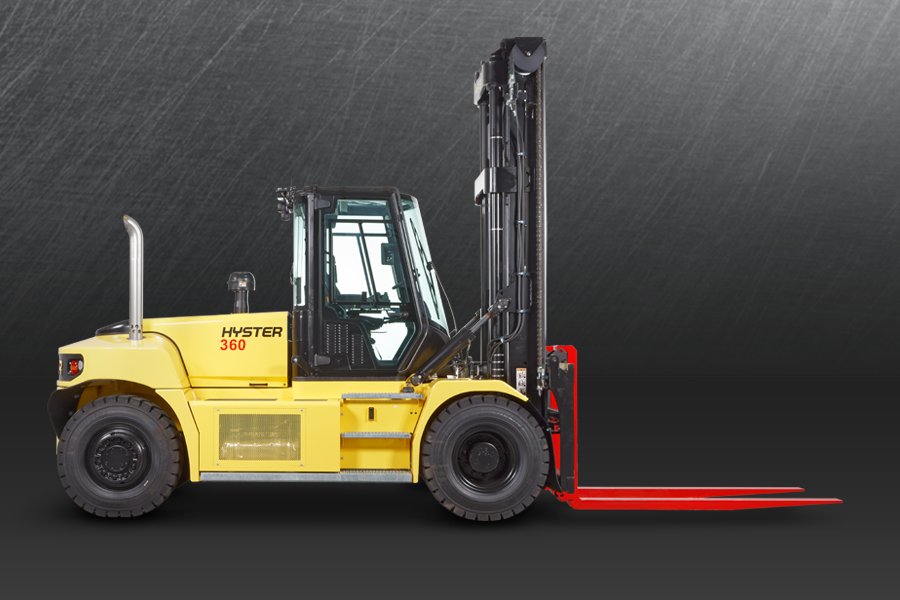

Hyster H360-36HD
Series: Hyster Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hyster forklifts — drive type, capacity, series
A Hyster designation has three parts. The leading letter gives the drive type: H for internal-combustion trucks, E for electric. The number that follows denotes capacity — in the European ranges in tonnes, as the factory designation H2.0-3.0XT for the 2,000 to 3,000 kg band shows. The letters at the end mark the series.
Read on 3 more paragraphs
Those series codes are the real key to the build year. FT, XT and A stand for successive generations of the same basic concept; the FT series, for instance, was designed for the Stage V emissions standard. Two trucks of identical capacity can therefore be years apart technically — the number alone says nothing about it.
Above the standard classes the designation grows longer. An H210HD is a rough-terrain truck with a rated capacity of 9.53 tonnes at a 1,220 mm load centre on pneumatic tyres. The HD code marks this heavy-duty version; trailing digits as in H210HD2 indicate the generation.
When comparing two offers the load centre matters as much as the capacity. A rated capacity always applies to a specific load centre distance — move the load forward and the permissible mass drops sharply. That figure is on the data plate and in the machine's capacity chart, not in the model designation.
Sources: Hyster: H2.0-3.0XT, LECTURA Specs, Hyster: H2.0-3.5FT
Technical data
Engine
| Engine make | Cumminscorrect |
|---|---|
| Engine model | QSB 6.7Lcorrect |
| Fuel | dieselcorrect |
| Rated speed | 2,300 rpmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,700.7 cm³correct |
Dimensions and weights
| Width | 2,542correct |
|---|---|
| Wheelbase | 3,752.1correct |
| Ground clearance | 368correct |
Drivetrain and chassis
| Gearbox type | ZF / WG161correct |
|---|---|
| Tyre type | pneumatic tyrescorrect |
| Top speed | 27.4 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Hydraulic oil capacity | 159 lcorrect |
|---|---|
| Fuel tank capacity | 204.4 lcorrect |
Frequently asked questions
What engine does the Hyster H360-36HD have?
6 cylinders, 6,701 cm³ displacement, Diesel.
How fast does the Hyster H360-36HD go?
Top speed is 27.4 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
