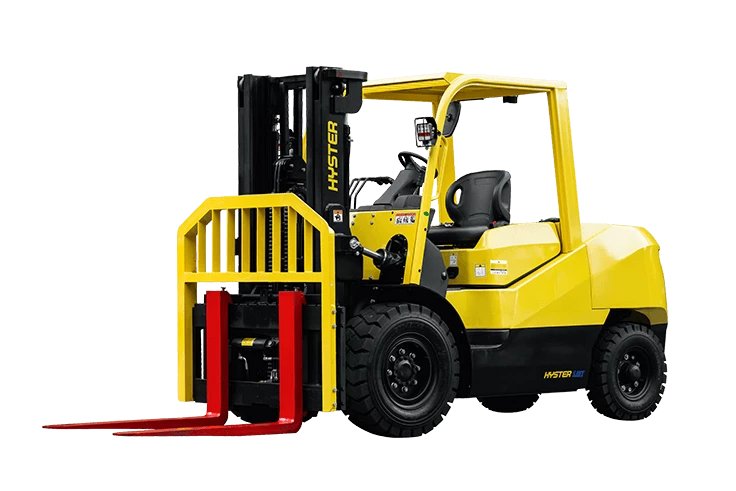

Hyster E45Z (36V)
Series: Hyster Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hyster forklifts — drive type, capacity, series
A Hyster designation has three parts. The leading letter gives the drive type: H for internal-combustion trucks, E for electric. The number that follows denotes capacity — in the European ranges in tonnes, as the factory designation H2.0-3.0XT for the 2,000 to 3,000 kg band shows. The letters at the end mark the series.
Read on 3 more paragraphs
Those series codes are the real key to the build year. FT, XT and A stand for successive generations of the same basic concept; the FT series, for instance, was designed for the Stage V emissions standard. Two trucks of identical capacity can therefore be years apart technically — the number alone says nothing about it.
Above the standard classes the designation grows longer. An H210HD is a rough-terrain truck with a rated capacity of 9.53 tonnes at a 1,220 mm load centre on pneumatic tyres. The HD code marks this heavy-duty version; trailing digits as in H210HD2 indicate the generation.
When comparing two offers the load centre matters as much as the capacity. A rated capacity always applies to a specific load centre distance — move the load forward and the permissible mass drops sharply. That figure is on the data plate and in the machine's capacity chart, not in the model designation.
Sources: Hyster: H2.0-3.0XT, LECTURA Specs, Hyster: H2.0-3.5FT
Technical data
Dimensions and weights
| Ground clearance | 91.2 mmcorrect |
|---|---|
| Unladen weight | 4,112 kgcorrect |
Drivetrain and chassis
| Tyre type | cushion tyrescorrect |
|---|---|
| Top speed | 17.7 km/hcorrect |
Working data
| Lifting capacity | 2,041 kgcorrect |
|---|
Other data
| Front wheels | 2correct |
|---|---|
| Kraftstoffart | electriccorrect |
| Lift speed | 30.8 m/mincorrect |
| Load centre | 609.6 mmcorrect |
| Mast stufen | 2correct |
| Mast tilt back | 8 Gradcorrect |
| Mast tilt forward | 5 Gradcorrect |
| Rear wheels | 2correct |
| Senkgeschwindigkeit mmin | 30.5 m/mincorrect |
Frequently asked questions
How much does the Hyster E45Z (36V) weigh?
The unladen weight is 4,112 kg.
How fast does the Hyster E45Z (36V) go?
Top speed is 17.7 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
