Hypac C330B (4-6ton)

Series: Hypac Static Smooth Drum Roller

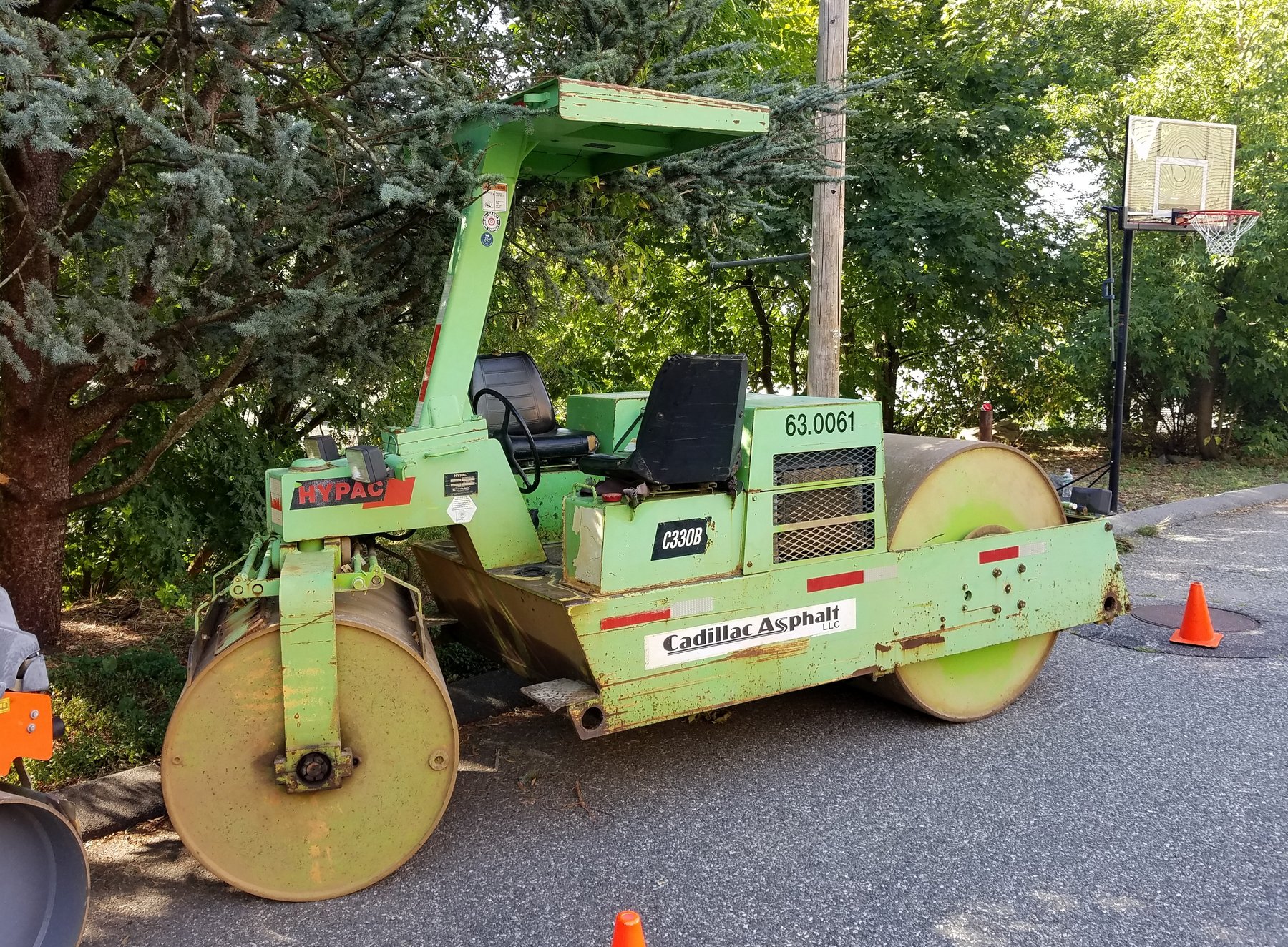

The photo shows the C330B from the same series. Source: https://commons.wikimedia.org/w/index.php?curid=94004481 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the C330B (4-6ton), Hypac offers a model from the Hypac Static Smooth Drum Roller series. The engine delivers 47.7 hp (35 kW), has 4 cylinders. Rated speed is 2,600 rpm. The wheelbase measures 2,743.2 mm. Ground clearance is 381 mm. Top speed is 17.7 km/h. The tank holds 64.4 litres. The hydraulic tank holds 56.8 litres. The cooling system holds 18.2 litres. The electrical system runs on 12 V. The engine fitted is the A2300. The Hypac Static Smooth Drum Roller series covers 7 models. Rated output within it ranges from 47.7 to 85.2 hp; the C330B (4-6ton) sits at the bottom of that range with 47.7 hp. Its immediate neighbours are the C350D (10-14ton) above it with 79.1 hp. 28 Hypac models across 4 series are on record. The model is listed under Road construction. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine modelA2300correct
Power47.7 hp (35 kW)correct
Rated speed2,600 rpmcorrect
Cylinders4correct
Coolant capacity18.2 lcorrect

Dimensions and weights

Width2,136.6correct
Wheelbase2,743.2correct
Ground clearance381correct

Drivetrain and chassis

Top speed17.7 km/hcorrect
System voltage12 Vcorrect

Working data

Hydraulic oil capacity56.8 lcorrect
Fuel tank capacity64.4 lcorrect

Frequently asked questions

How much power does the Hypac C330B (4-6ton) have?

The Hypac C330B (4-6ton) delivers 47.7 hp.

What engine does the Hypac C330B (4-6ton) have?

4 cylinders.

How fast does the Hypac C330B (4-6ton) go?

Top speed is 17.7 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
