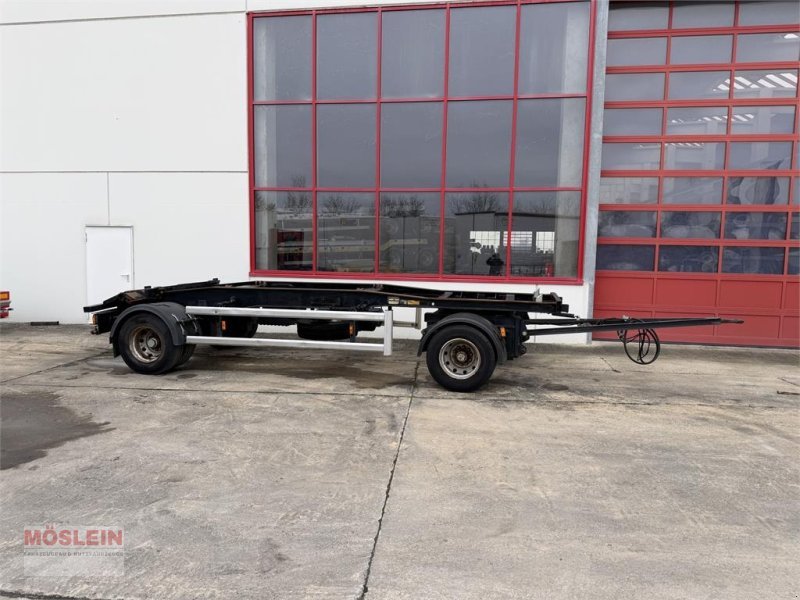

Huffermann HSA 28.70
Built: 2022-2022 · Series: HSA
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Huffermann HSA – the range of heavy semi-trailers, 16 versions with unladen weight 3,322 to 4,550 kg, gross weight 18,000 to 30,000 kg, lengths 9.07 to 10.06 m
Huffermann's HSA range, from a German maker of hooklift and skip-loader systems, covers semi-trailers for swap-body and container transport. Model designations such as HSA 18.70, HSA 24-70 and HSA 30.71 follow a numeric scheme in which the numbers before and after the point mark the version within the range.
Read on 3 more paragraphs
The register lists here 16 versions with unladen weights from 3,322 to 4,550 kg, gross weights from 18,000 to 30,000 kg, lengths from 9,070 to 10,060 mm and widths from 2,500 to 2,550 mm.
With an unladen weight comparatively low for semi-trailers against gross weights up to 30 tonnes, the HSA types are built for high payload, as needed when carrying skip containers, swap bodies and building-site containers. The market for hooklift systems is strongly shaped by construction and waste-disposal companies, which use the semi-trailers interchangeably with several tractor units.
On used examples of this class, the condition of the hooklift or roller frame, wear on the hook, rollers and guide rails, the function of the hydraulics, rust on the chassis and the brakes and air suspension of the axles count; parts and service run through Huffermann and affiliated commercial-vehicle workshops. On used HSA types it is also worth checking the wear plate at the tipping bearing, which takes particular strain from the daily setting-down and picking-up of containers.
Sources: Kennwerte der Modelle Huffermann HSA
Technical data
Dimensions and weights
| Length | 9,950 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,210 mmcorrect |
| Unladen weight | 4,266 kgcorrect |
| Gross vehicle weight | 28,000 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Huffermann HSA 28.70 weigh?
The unladen weight is 4,266 kg.
What is the gross vehicle weight of the Huffermann HSA 28.70?
28,000 kg.
Up to what speed is the Huffermann HSA 28.70 approved?
Approved up to 100 km/h.
What are the dimensions of the Huffermann HSA 28.70?
9,950 mm × 2,550 mm.
When was the Huffermann HSA 28.70 built?
Production years: 2022.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
