Start › Crawler cranes › Hitachi › KH150-3

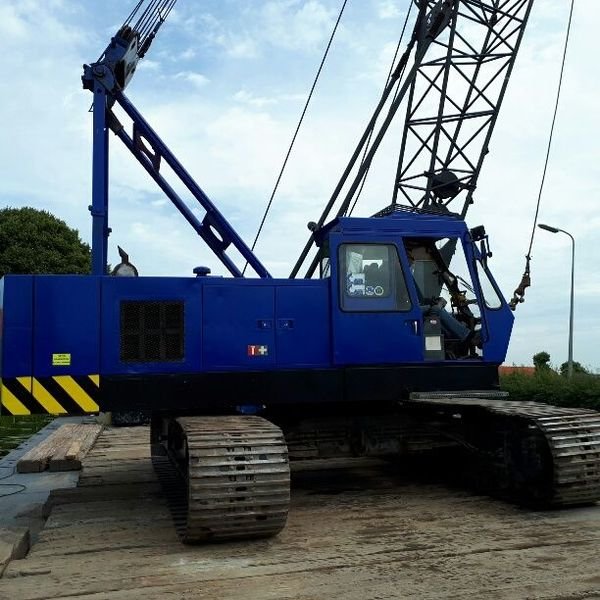

Hitachi KH150-3

Series: Hitachi Crawler Crane

Source: https://www.lectura-specs.com/en/model/cranes/crawler-cranes

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hitachi KH150-3 is a model in the Hitachi Crawler Crane series. The engine delivers 149.6 hp (110.1 kW), has 6 cylinders. The engine comes from Hino. Torque is 530.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 41,000 kg. Ground clearance is 426.7 mm. Top speed is 1.6 km/h. The tank holds 250.2 litres. Maximum torque is reached at 1,800 rpm. The hydraulic tank holds 285 litres. The cooling system holds 35.2 litres. The oil fill is 27.3 litres. The electrical system runs on 24 V. The engine fitted is the H06C-T. Rated output across the Hitachi range ranges from 20.3 to 3,942.9 hp; the KH150-3 sits at the bottom of that range with 149.6 hp. Its immediate neighbours are the DX145 below it with 128.8 hp and the EX220-3 above it with 160.5 hp. 347 Hitachi models across 20 series are on record. The model is listed under Cranes & access platforms. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine make	Hinocorrect
Engine model	H06C-Tcorrect
Power	149.6 hp (110.1 kW)correct
Rated speed	2,000 rpmcorrect
Torque	530.1correct
Speed at max. torque	1,800 rpmcorrect
Cylinders	6correct
Coolant capacity	35.2 lcorrect
Engine oil capacity	27.3 lcorrect

Dimensions and weights

Ground clearance	426.7correct
Unladen weight	41,000 kgcorrect

Drivetrain and chassis

Top speed	1.6 km/hcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	285 lcorrect
Fuel tank capacity	250.2 lcorrect

Where this model stands

Power-to-weight ratio: 2.7 kW/t (110 kW / 41 t)

Stronger than 15% of the crawler cranes in the register — out of 56 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hitachi KH150-3 have?

The Hitachi KH150-3 delivers 150 hp.

How much does the Hitachi KH150-3 weigh?

The unladen weight is 41,000 kg.

What engine does the Hitachi KH150-3 have?

6 cylinders.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
