Hino J08E-VB

Built: 2012-2012 · Series: Other models

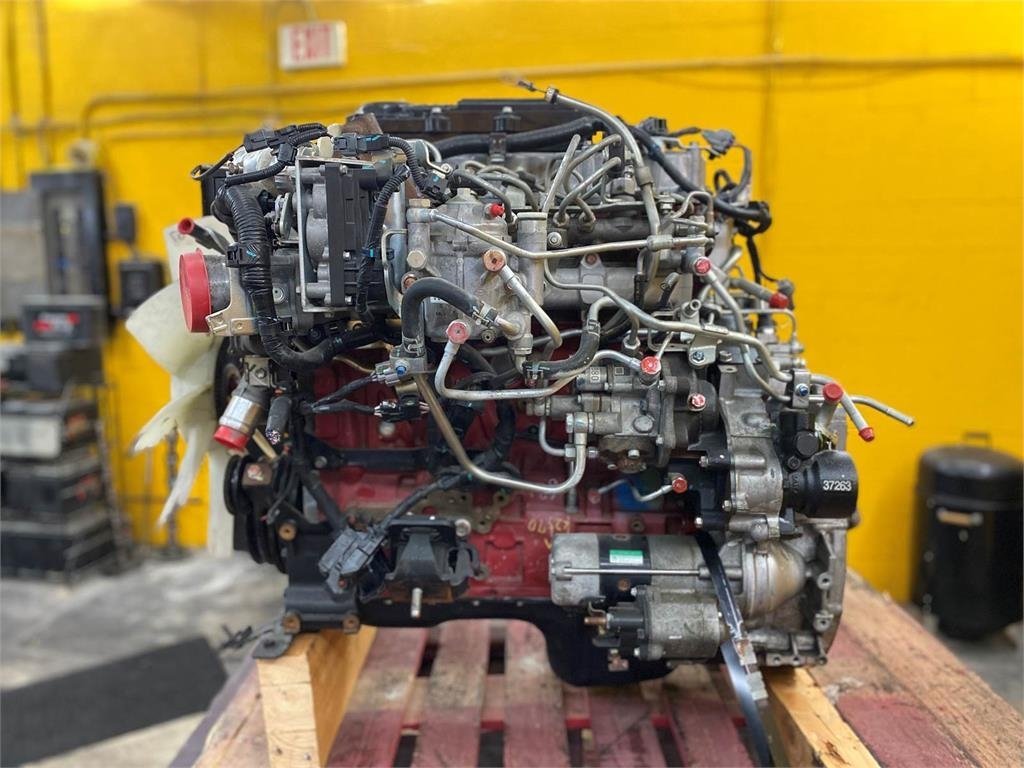

The photo shows the J05E-TP from the same series. Source: https://www.ritchielist.com/consumer-items/parts-engine/hino

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hino J08E-VB is a machine built by Hino. Production: 2012. The fuel is diesel. The rated output is 260 bhp. Application: HHDD. The engine is single-stage turbocharged. Fuel reaches the combustion chamber through electronically controlled direct injection. It is a diesel engine. Rated output across the Hino range ranges from 210 to 260 kW; the J08E-VB sits at the top of that range with 260 kW. Its immediate neighbours are the J08E-VC below it with 220 kW. 36 Hino models across 28 series are on record. The model is listed under Heavy-duty on-road engines. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine codeVBD1correct
Engine familyCHMXH07.7JVB; DHMXH07.7JVB; EHMXH07.7JVB; FHMXH07.7JVBcorrect
Engine familiesCHMXH07.7JVB; DHMXH07.7JVB; EHMXH07.7JVB; FHMXH07.7JVBcorrect
Fueldieselcorrect
Rated output260 bhpcorrect
Rated speed2,500 rpmcorrect
Maximum torque660 ft·lbfcorrect
Speed at max. torque1,500 rpmcorrect
Operating cycledieselcorrect
Injectionelectronic direct injectioncorrect
Aspirationsingle-stage turbocorrect

Origin and approval

Built from2012correct
Built to2015correct
Model year from2012correct
Model year to2015correct

Other data

AnwendungsbereichHHDDcorrect

Frequently asked questions

How much power does the Hino J08E-VB have?

The Hino J08E-VB delivers 260 kW.

When was the Hino J08E-VB built?

Production years: 2012.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

J05E-TP

J05E-UG

J08E-VC

Sources: [1]

Diesel engine in 3D section

Turn the model, look inside and click an assembly — each one is explained.

Teile zu diesem Motor (20)

Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.

Teilenummer Bezeichnung Hersteller
23810-E0170 Common Rail Hino
23810-E0420 Common Rail Hino
89663-E2P20 ECM / Motorsteuergerät Hino
89663-E3020 ECM / Motorsteuergerät Hino
89663-E3650 ECM / Motorsteuergerät Hino
89663-E3660 ECM / Motorsteuergerät Hino
89663-E3L30 ECM / Motorsteuergerät Hino
25608-E0050 EGR Cooler Hino
83420-1250 Gage Assy,Water Temperature Hino
S8342-01250 Gage Assy,Water Temperature Hino
23710-E0020 Injector Assy, Exhaust Fuel Addition Hino
23670-E0400 Injektor Hino
22204-E0010 Meter Sub-Assy,Intake Air Flow Hino
89411-E0050 Sensor Assy, Speed Hino
22100-E0351 Supply Pump Hino
17201-E0652 Turbolader Hino
17201-E0653 Turbolader Hino
17201-E0654 Turbolader Hino
S2210-E0032 VALVE ASSY, FUEL ADDITION CUT Hino
S2210-E0033 Valve Assy, Fuel Addition Cut Hino

Quelle: 2012 Model Year On-Highway Heavy-Duty Engine Certification Data
