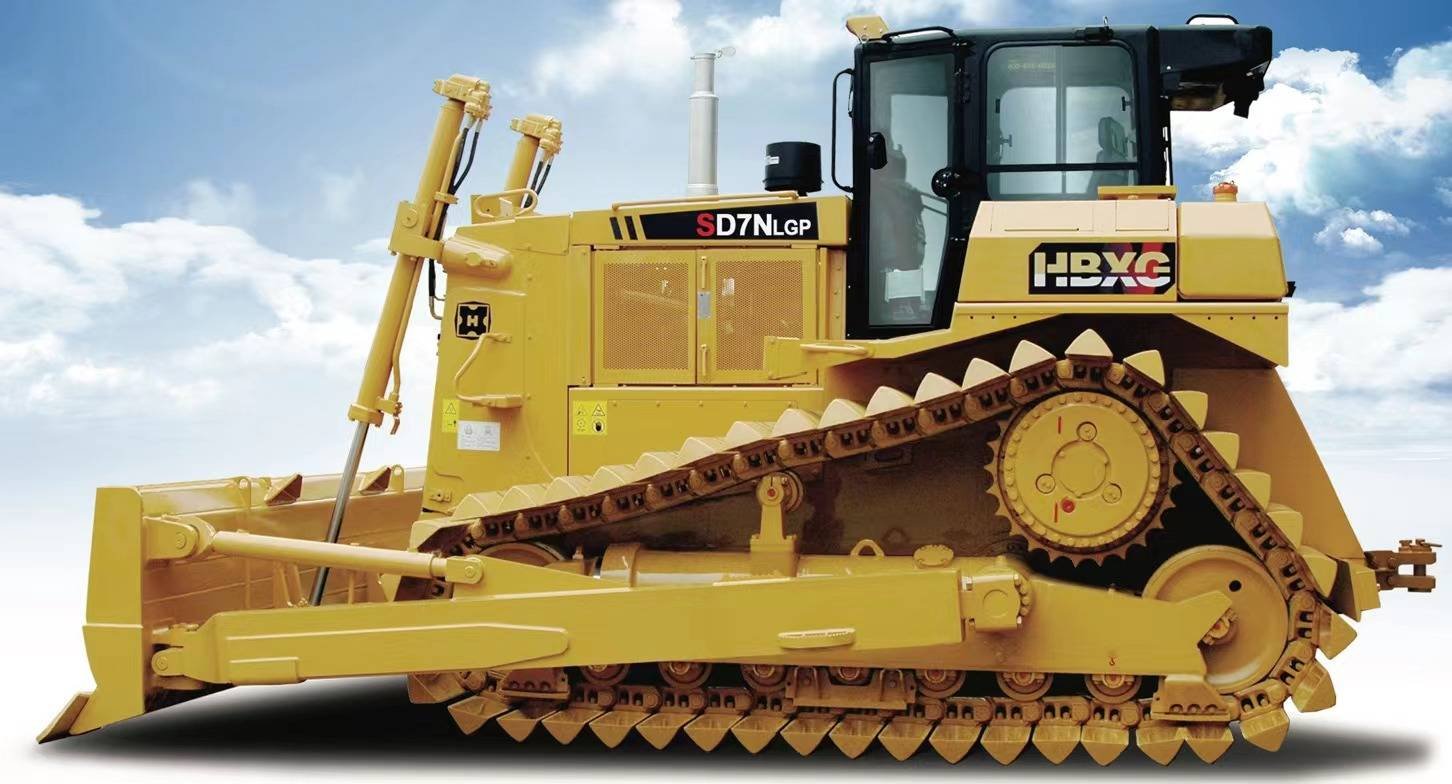

HBXG SD-7 LGP Crawler

Series: Other models

Source: https://hbxg.org/hbxg-sd7lgp/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HBXG SD-7 LGP is a model in the HBXG Crawler Tractor series. The engine delivers 220.3 hp (162 kW), has 6 cylinders, with a displacement of 14,001.1 cm³. Torque is 1,000.1 Nm. Rated speed is 2,100 rpm. The unladen weight is 25,900 kg. Ground clearance is 487.7 mm. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,450 rpm. The engine fitted is the CQNTA855-C280. The HBXG Crawler Tractor series covers 5 models. Rated output within it ranges from 110.2 to 334.5 hp; the SD-7 LGP sits in the middle of that range with 220.3 hp. Its immediate neighbours are the TY165-2 below it with 164.6 hp and the SD-8 above it with 334.5 hp. 5 HBXG models are on record. The model is listed under Mining equipment. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCQNTA855-C280correct
Power220.3 hp (162 kW)correct
Rated speed2,100 rpmcorrect
Torque1,000.1correct
Speed at max. torque1,450 rpmcorrect
Cylinders6correct
Displacement14,001.1 cm³correct

Dimensions and weights

Ground clearance487.7correct
Unladen weight25,900 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears3correct
Reverse gears3correct

Other data

Height3,404.6correct

Where this model stands

Power-to-weight ratio: 6.3 kW/t (162 kW / 25.9 t)

Stronger than 59% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the HBXG SD-7 LGP have?

The HBXG SD-7 LGP delivers 220 hp.

How much does the HBXG SD-7 LGP weigh?

The unladen weight is 25,900 kg.

What engine does the HBXG SD-7 LGP have?

6 cylinders, 14,001 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
