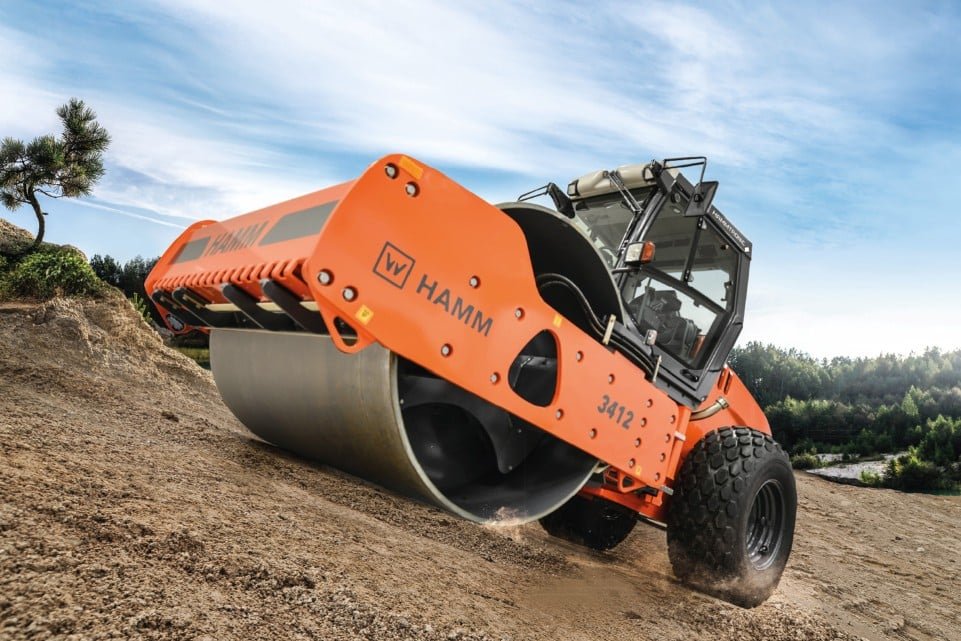

Hamm 3412 HT VIO
Series: Hamm Vibratory Smooth Drum Roller
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hamm H5i, H7i and the 3000 series — what the labels mean
Hamm's range roughly splits into two numbering systems: the four-digit 3000 series (such as 3205, 3410 or 3412) for classic rollers, and the newer H series with a size number and often an added i, as in H5i or H7i.
Read on 4 more paragraphs
The lowercase i marks Hamm's “intelligent” equipment level, such as the optional HCQ (Hamm Compaction Quality) compaction measurement that displays compaction progress on a cab screen. The number after the letter marks the weight class: the H 5i is listed with an operating weight of around 4.5 tonnes, the H 7i around 8 tonnes, both fitted with a 73-horsepower Kubota diesel engine.
The older 3000 series covers a wider field, from compact jobsite rollers to heavy earthwork machines; models such as 3307, 3411 or 3414 mark different weight and drum-width classes within the series.
Within the collective entry the range runs from around 14 kW for small rollers up to operating weights around 24.8 tonnes for the largest machines. When buying used, drum condition, the seal integrity of the vibration bearings and the articulated-steering joint matter as much as the hour meter.
In short: 3000-series numbers mark the classic line, H models with an added i mark the newer, electronically equipped generation — and in both cases the number after the letter shows the weight class.
Sources: Kennwerte der Modelle Hamm Vibratory Smooth Drum Roller, Hamm H 5i / H 7i Vorstellung, Equipment World, HCQ Hamm Compaction Quality, Wirtgen Group
Technical data
Engine
| Engine make | Deutzcorrect |
|---|---|
| Engine model | TCD 2012 L04 2Vcorrect |
| Power | 100.1correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
Dimensions and weights
| Length | 5,705.1correct |
|---|---|
| Wheelbase | 3,015.2correct |
| Ground clearance | 375.2correct |
| Unladen weight | 11,925correct |
Drivetrain and chassis
| Tyre type | AW 23.1-26 12 PRcorrect |
|---|---|
| Top speed | 22.5 km/hcorrect |
Working data
| Fuel tank capacity | 290.3 lcorrect |
|---|
Other data
| Cab height | 2,990.1correct |
|---|
More machines with this engine (DEUTZ TCD 2012 L04 2V, 43)
Where this model stands
Power-to-weight ratio: 8.4 kW/t (100 kW / 11.9 t)
Stronger than 73% of the road construction in the register — out of 667 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hamm 3412 HT VIO have?
The Hamm 3412 HT VIO delivers 100 kW.
How much does the Hamm 3412 HT VIO weigh?
The unladen weight is 11,925 kg.
What engine does the Hamm 3412 HT VIO have?
4 cylinders.
How fast does the Hamm 3412 HT VIO go?
Top speed is 22.5 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
