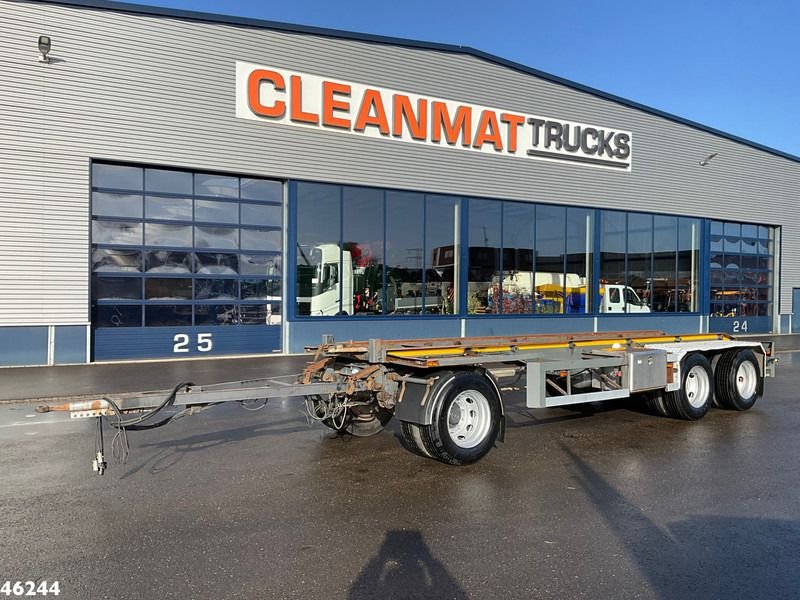

Gs AV-3000 LU
Built: 2005-2023 · Series: AV-3000
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Gs AV-3000 – trailer series from GS Meppel: 30 tonnes gross weight throughout, 4.98 to 8.58 tonnes unladen weight, 9.61 to 10.25 m length
The AV-3000 series from GS Meppel gathers trailers with the code AV-3000, supplemented by letter combinations such as C, DB, LC, LCU, LDB, LRW, LU or LUB for the respective version. The number 3000 in the type designation corresponds to the gross weight of 30,000 kg, which is the same for all models in the series. The large number of letter combinations within the series shows the range of equipment variants GS Meppel offers for the commercial market.
Read on 3 more paragraphs
With a gross weight of 30 tonnes, the series falls into EU vehicle class O4 for trailers over 10 tonnes. The register lists 8 versions with unladen weights of 4,980 to 8,580 kg. Lengths range from 9,610 to 10,250 mm and the width is uniformly 2,550 mm.
Trailers of this series cover a wide range of unladen weights from 4.98 to 8.58 tonnes within the 30-tonne class and are used in European freight transport in exchange with lorries, where they compete with comparable series from other Dutch and German makers.
When buying used, check the drawbar and towing eye for cracks, as well as the axles, brake system and suspension for condition and tightness. Standard checks include tyres, lighting and the load bed coating. Also check the tightness of the air-brake connections, the lashing points and the frame for corrosion at the welds. Spare parts for axles and brake systems are available through the general commercial vehicle parts trade.
Sources: SpecCodex register, model data: Gs AV-3000
Technical data
Dimensions and weights
| Width | 2,550 mmcorrect |
|---|---|
| Unladen weight | 7,620 kgcorrect |
| Gross vehicle weight | 30,000 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Gs AV-3000 LU weigh?
The unladen weight is 7,620 kg.
What is the gross vehicle weight of the Gs AV-3000 LU?
30,000 kg.
Up to what speed is the Gs AV-3000 LU approved?
Approved up to 100 km/h.
When was the Gs AV-3000 LU built?
Production years: 2005-2023.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
