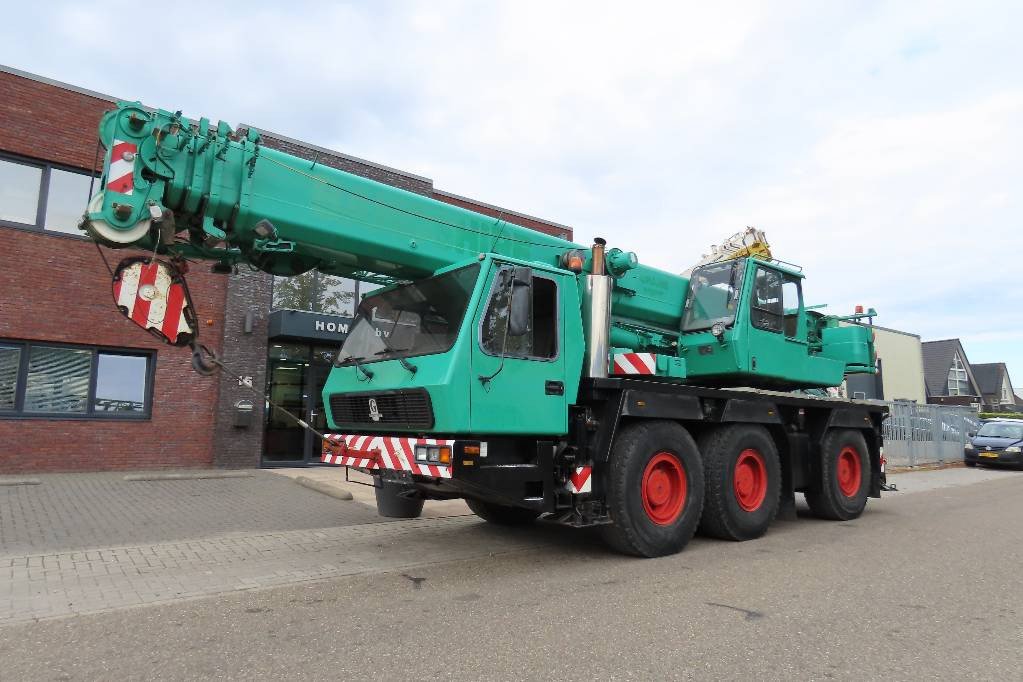

Grove GMK2035E
Built: 2007-2009 · Series: Other models
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Grove – other mobile cranes outside the named ranges from the GMK2035E to the GMK5130-2: engines of 350 to 450 kW, operating weights up to 75.3 tonnes
This page gathers Grove mobile cranes the register could not assign to a named range – all-terrain cranes of the GMK series and telescopic cranes on truck chassis. Grove was founded in 1947 in Shady Grove, Pennsylvania, and built one of the first hydraulic truck cranes in the 1960s; since 2002 the brand has belonged to the crane group Manitowoc. The GMK type designation (Grove Mobile Krane) gives the load class in the first digit and the maximum lifting capacity in tonnes in the following digits, for instance the GMK5130 with a 130-tonne capacity. Some models appear in the Finnish registration data under the collective category for special-purpose vehicles, because mobile cranes are registered there as trucks with a crane superstructure.
Read on 3 more paragraphs
The register lists here 22 versions with outputs from 350 to 450 kW, displacements from 6,370 to 15,930 cm³ from six- and eight-cylinders, operating weights from 23,750 to 75,300 kg, gross weights from 24,000 to 71,930 kg, lengths from 9,290 to 18,060 mm and widths from 2,490 to 3,000 mm.
Alongside Liebherr, Tadano and Terex, Grove is one of the leading makers of all-terrain cranes; the GMK series, thanks to its compact vehicle length combined with high lifting capacity, is a standard on construction sites and in plant engineering.
On a used purchase, engine and crane-superstructure operating hours, the condition of the telescopic boom and hydraulic cylinders, the tightness of the slew ring and the inspection history under the applicable crane testing regulations count; parts run through the Manitowoc network.
Sources: Kennwerte der Modelle Grove (weitere Modelle), Manitowoc (Grove, Hersteller), Traficom (Finnland)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 6,370 cm³correct |
Dimensions and weights
| Length | 10,230 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Wheelbase | 3,780 mmcorrect |
| Unladen weight | 23,750 kgcorrect |
| Gross vehicle weight | 24,000 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the Grove GMK2035E weigh?
The unladen weight is 23,750 kg.
What is the gross vehicle weight of the Grove GMK2035E?
24,000 kg.
What engine does the Grove GMK2035E have?
6 cylinders, 6,370 cm³ displacement.
What are the dimensions of the Grove GMK2035E?
10,230 mm × 2,750 mm.
When was the Grove GMK2035E built?
Production years: 2007-2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
