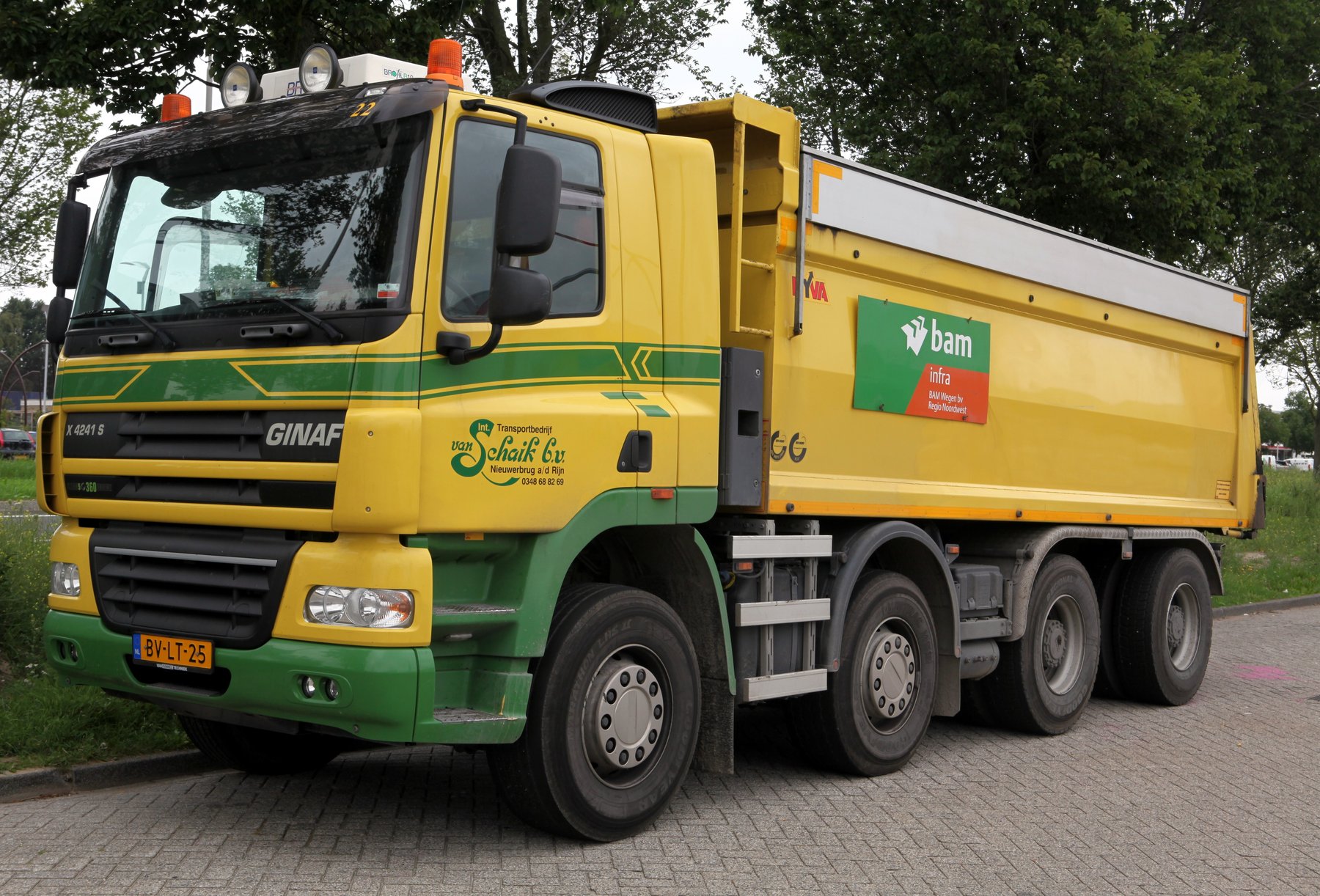

Ginaf E 3123
Built: 2020-2020 · Series: Other models
More machines from model year 2020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ginaf – other trucks: the collective page of Dutch heavy vehicles outside the named ranges, from the C and E through the F, G and K to HD and X, 6.6 to 47.9 tonnes unladen weight, DAF cabs on a reinforced Ginaf chassis
This page gathers Ginaf trucks the register could not assign to a named range. Ginaf, founded in 1948 in Veenendaal, the Netherlands (the name comes from 'Geïmporteerde Isuzu- en Amerikaanse vrachtwagens', later from 'Gebroeders Van Ginkel Automobielfabriek'), builds multi-axle and all-wheel-drive trucks for heavy-haulage, construction, fire-brigade and military use, since the 1970s usually with DAF cabs on its own reinforced chassis with up to four axles and 8X8 drive. The range letters C, E, F, G, K and M historically denoted different weight and axle-configuration classes, the following number the tonnage or engine; HD and X denote newer heavy and special chassis.
Read on 3 more paragraphs
The register lists here 172 versions from six-cylinders of up to 18,131 cm³, unladen weights from 6,630 to 47,900 kg, gross weights from 9,450 to 50,000 kg and widths from 2,200 to 2,970 mm.
Ginaf is the best-known Dutch make of all-wheel-drive and multi-axle trucks outside the volume manufacturers and supplies mainly construction, fire brigades, the military and disaster relief with vehicles combining series-production DAF engineering with axles and drivetrain designed for extreme off-road capability.
On used Ginaf vehicles, the condition of the transfer case and axle differentials, corrosion on the reinforced chassis frame, and the condition of tyres and portal axles on off-road versions count, and since the cabs come from DAF, the usual checkpoints on engine and electrics there as well; chassis parts run exclusively through Ginaf, cab and engine parts through the DAF network.
Sources: Kennwerte der Modelle Ginaf (weitere Modelle), Ginaf Trucks (Hersteller)
Technical data
Dimensions and weights
| Length | 8,450 mmcorrect |
|---|---|
| Width | 2,410 mmcorrect |
| Wheelbase | 4,200 mmcorrect |
| Unladen weight | 13,210 kgcorrect |
| Gross vehicle weight | 22,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 83 km/hcorrect |
Frequently asked questions
How much does the Ginaf E 3123 weigh?
The unladen weight is 13,210 kg.
What is the gross vehicle weight of the Ginaf E 3123?
22,500 kg.
How fast does the Ginaf E 3123 go?
Top speed is 83 km/h.
What are the dimensions of the Ginaf E 3123?
8,450 mm × 2,410 mm.
When was the Ginaf E 3123 built?
Production years: 2020.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
