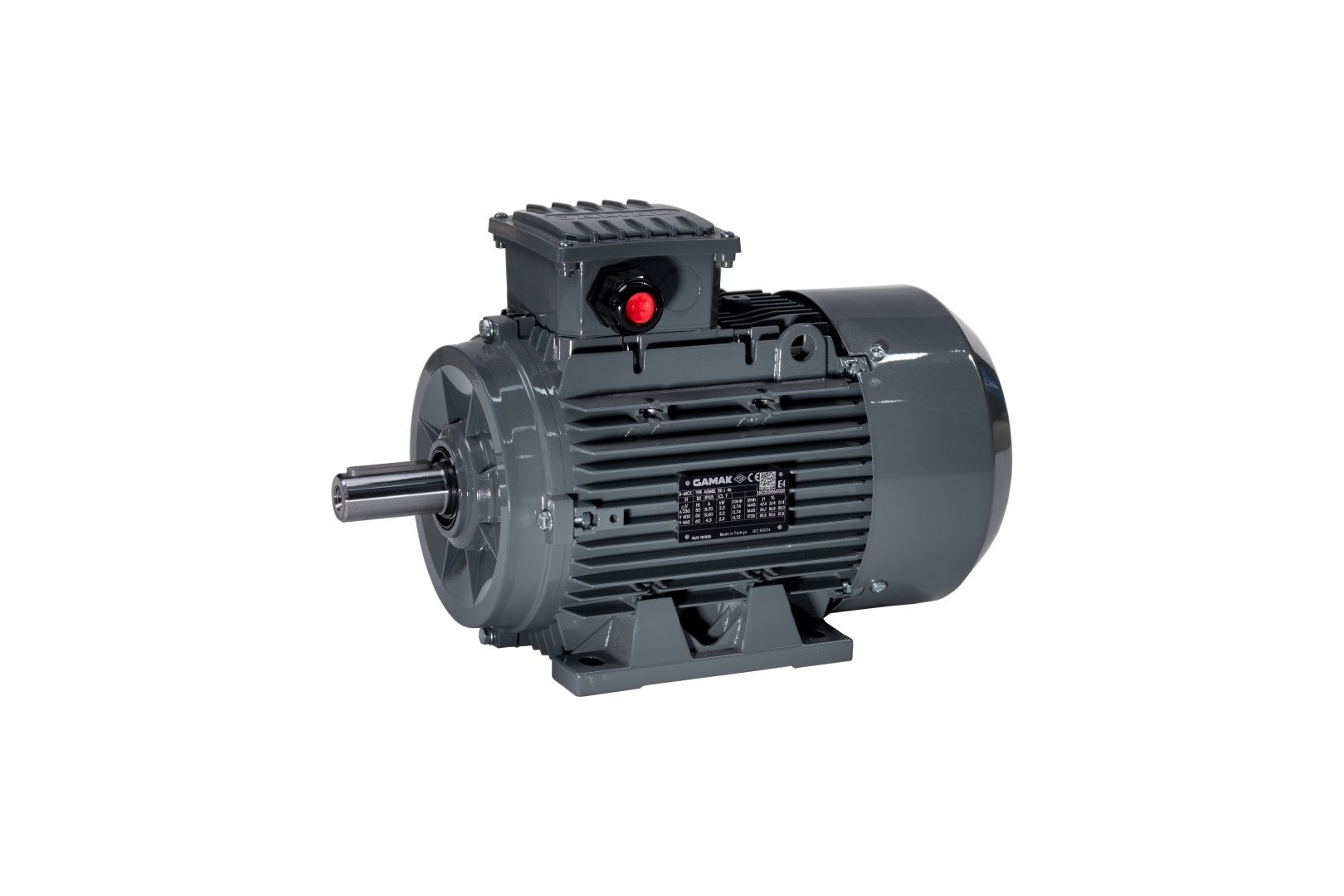

Gamak AGM2E112M6
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Gamak – other models: the collective page of MEPS-registered three-phase motors from the Turkish maker in Istanbul outside the named ranges, frame sizes 112 to 160, 2.2 to 11 kW, four- to six-pole, IP55
Gamak is a Turkish manufacturer of three-phase motors headquartered in Istanbul. This page gathers the versions that the Australian energy-efficiency register (GEMS/MEPS) does not assign to a named range. The four models carry the designations AGM2E112M6, AGM2E132S4, AGM2E132S6 and GM2E160M4.
Read on 3 more paragraphs
The register lists here four versions with 2.2 to 11 kW rated output, four- to six-pole. The supply voltage for the majority of the motors is 400 V. Full-load efficiency ranges from 81.9 to 89.8%, and at 75% load from 81.7 to 89.3%. Frame sizes fall between 112 and 160, the protection class is IP55 throughout, and the mounting code is B3 throughout. Testing followed AS/NZS 1359.5:2004 with test method A.
With a power band from 2.2 to 11 kW and pole counts from four to six, the range covers the medium speed classes of classic three-phase standard motors, used on pumps, fans, conveyors and compressors; IP55 protection also suits dusty or damp industrial halls.
On a used purchase, bearing condition, a tested winding insulation resistance, the seals at the terminal box and shaft lead-through, and a legible nameplate with frame size, pole count and protection class all count. Anyone wanting variable-speed operation should check inverter compatibility. Spare parts run through the Gamak distribution network or general electric-motor suppliers.
Sources: Kennwerte der Modelle Gamak (weitere Elektromotoren, MEPS-Registrierung), Gamak (Hersteller)
Technical data
Engine
| Rated output | 2.2 kWcorrect |
|---|
Dimensions and weights
| Weight | 35 kgcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP55correct |
| Frame size | 112 M (foot)correct |
| Mounting (IEC 60034-7) | B3correct |
| Efficiency at full load | 81.9 %correct |
| Efficiency at 75 % load | 81.7 %correct |
| Efficiency at half load | 80.9 %correct |
Origin and approval
| Country of manufacture | Turkeycorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Gamak AGM2E112M6 have?
The Gamak AGM2E112M6 delivers 2.2 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
