Start › Non-road diesel engines › FPT Industrial › F4HGE414N*V

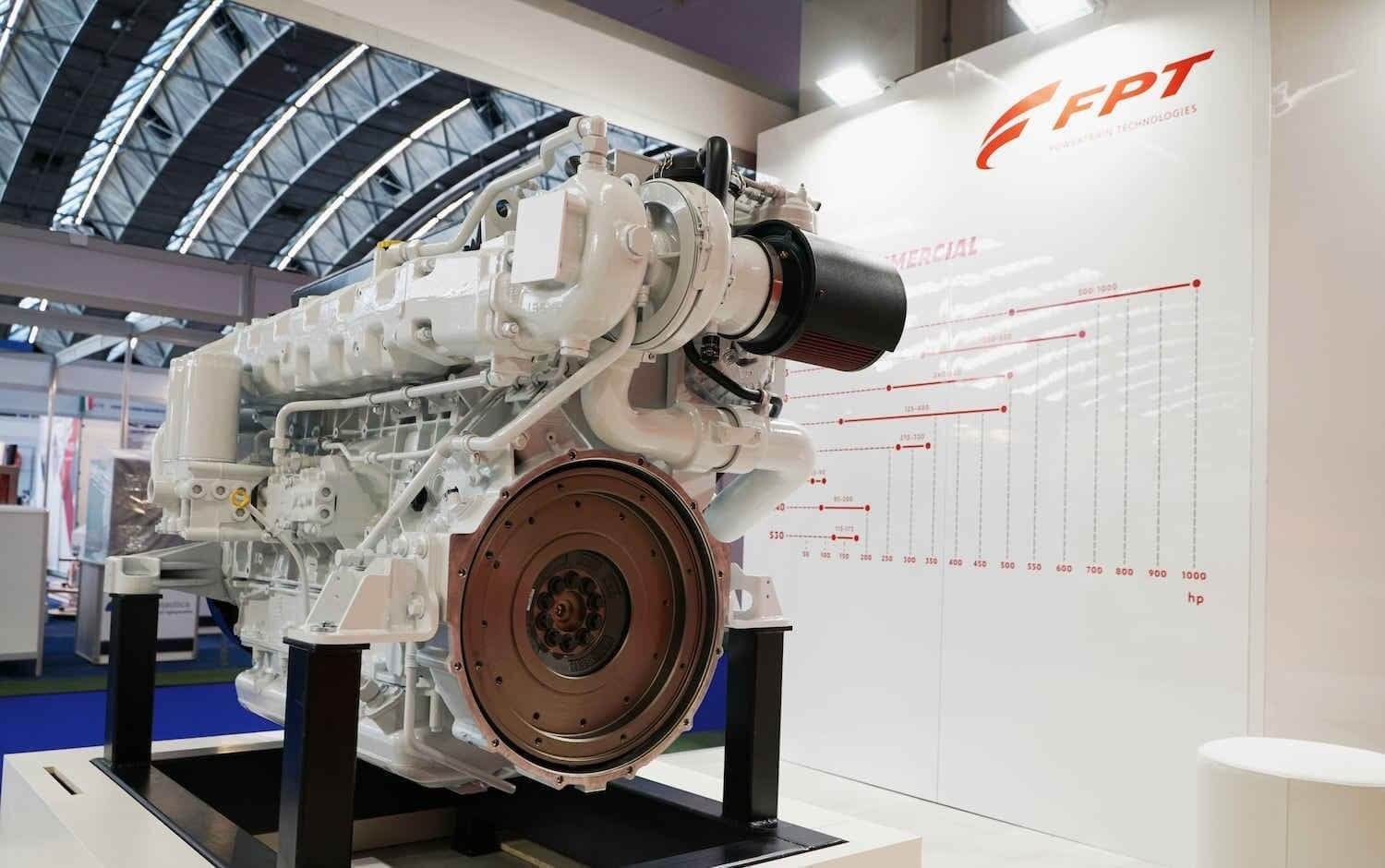

FPT Industrial F4HGE414N*V

Built: 2022-2026 · Series: Other models

Source: https://www.fptindustrial.com/en/engines/Marine/Commercial

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FPT Industrial F4HGE414N*V is a machine built by FPT Industrial. Production: 2022-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 106 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the FPT Industrial range ranges from 37 to 610 kW; the F4HGE414N*V sits at the bottom of that range with 106 kW. Its immediate neighbours are the F4HFE413J*A below it with 105 kW and the F4DFE414E*B above it with 107 kW. 784 FPT Industrial models across 2 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine codeF4HGE414N*Vcorrect
Engine familyNFPXL06.7FR1correct
Engine familiesNFPXL06.7FR1; RFPXL06.7FR1; PFPXL06.7FR1; SFPXL06.7FR1; TFPXL06.7FR1correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output106 kWcorrect
Power band130<=kW<=560correct
Rated speed2,100 rpmcorrect
Maximum torque612 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore104 mmcorrect
Stroke132 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionF4HGE414N*Vcorrect
Built from2022correct
Built to2026correct
Model year from2022correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the FPT Industrial F4HGE414N*V have?

The FPT Industrial F4HGE414N*V delivers 106 kW.

When was the FPT Industrial F4HGE414N*V built?

Production years: 2022-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 27 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
