Ford 330M VAN 100DPF 3.73

Built: 2009-2011 · Series: Transit

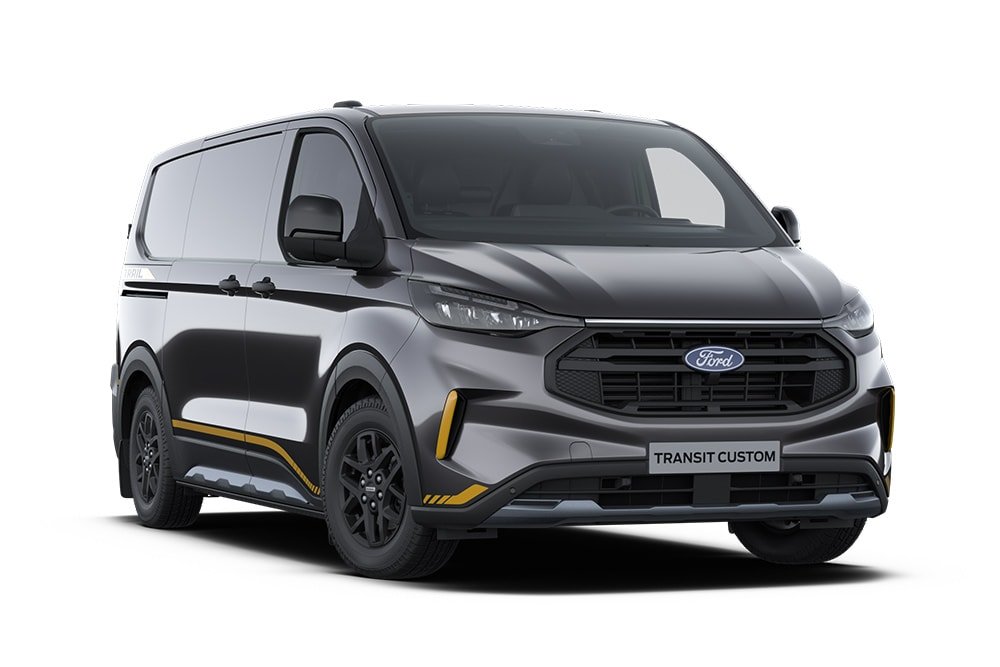

The photo shows the CUSTOM 2,2 TDCI (100H) 310 L2 from the same series. Source: https://www.ford.de/nutzfahrzeuge-modelle/ford-transit-custo

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 330M VAN 100DPF 3.73 from Ford is part of the Transit series. Production: 2009-2011. The engine has 4 cylinders, with a displacement of 2,402 cm³. The machine is 1,970 mm wide. The unladen weight is 1,920 kg. The wheelbase measures 3,300 mm. The gross vehicle weight is 3,300 kg. The machine runs on 4 wheels. The Transit series covers 1060 models. Unladen weight within it ranges from 1,231 to 3,260 kg; the 330M VAN 100DPF 3.73 sits in the lower part of that range with 1,920 kg. Its immediate neighbours are the 260S FD DC 125 MR 4,23 below it with 1,919 kg and the 350M CDCF 90 above it with 1,922 kg. 4082 Ford models across 50 series are on record. The model is listed under Vans. 9 verified figures from 1 source are on file.

Ford Transit — L and H matter more than the engine figure

On a Transit it is not the engine that decides whether the vehicle suits the work but two codes: L for length, H for roof height. L1 is the shortest wheelbase, L4 the longest; H1 the flat roof, H3 the high roof. An L3H2 is therefore long with a medium roof. Anyone who knows their load can read from that, before any viewing, whether it will fit.

Read on 4 more paragraphs

This L/H system is not a Ford peculiarity. Mercedes, Volkswagen, Renault, Peugeot and Citroën use the same codes. It allows vans of different brands to be compared directly — though the centimetres behind them differ by manufacturer. The step is comparable, the measurement is not.

Which steps a given year offers changes across the generations. Not every Transit comes in all four lengths, and the shortest step offered is not called L1 in every generation. Anyone who depends on the centimetre should check the interior measurement of the actual vehicle, not just the code.

The second decision is drive. The Transit comes with front-, rear- and all-wheel drive. Front drive gives a lower loading lip and more traction when empty, rear drive carries heavy loads better and tows more. Anyone regularly running fully loaded or towing should look harder here than at the engine.

Alongside the Transit there are the smaller Transit Custom, the Transit Connect and the Transit Courier. The names are similar, the vehicles are not: these are separate ranges of different sizes. Listings mix them regularly — checking gross vehicle weight and load length separates them more reliably than the name does.

Sources: Van Guide: Ford Transit dimensions, Van Shelves: L/H codes decoded, BAS World

Technical data

Engine

Cylinders4correct
Displacement2,402 cm³correct

Dimensions and weights

Width1,970 mmcorrect
Wheelbase3,300 mmcorrect
Unladen weight1,920 kgcorrect
Gross vehicle weight3,300 kgcorrect

Drivetrain and chassis

Wheels4correct

Frequently asked questions

How much does the Ford 330M VAN 100DPF 3.73 weigh?

The unladen weight is 1,920 kg.

What is the gross vehicle weight of the Ford 330M VAN 100DPF 3.73?

3,300 kg.

What engine does the Ford 330M VAN 100DPF 3.73 have?

4 cylinders, 2,402 cm³ displacement.

When was the Ford 330M VAN 100DPF 3.73 built?

Production years: 2009-2011.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
