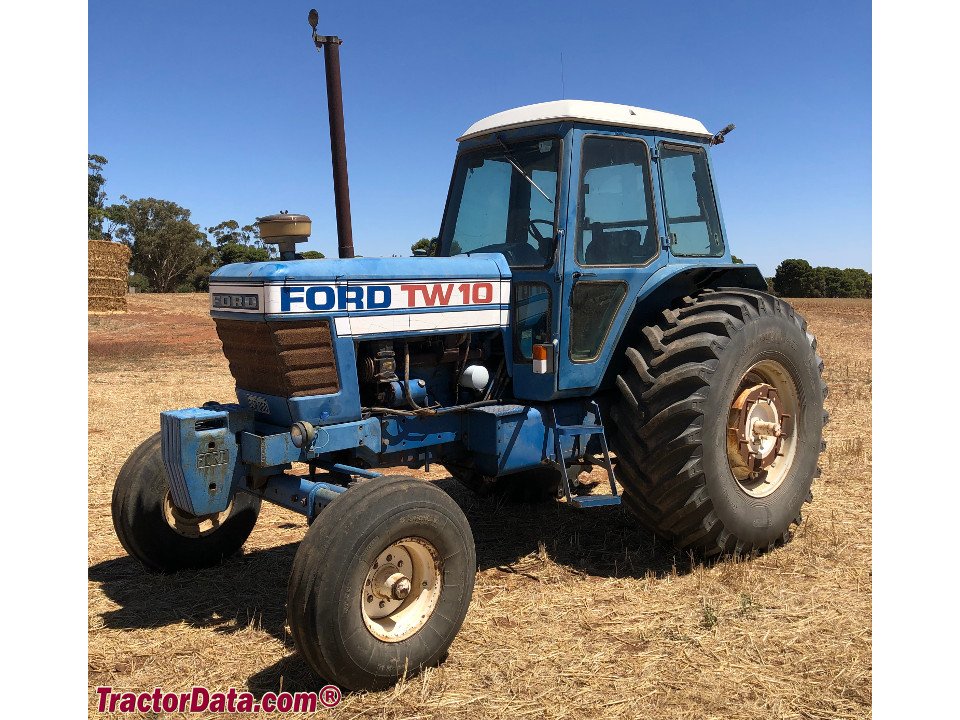

Ford TW10
Built: 1979-1979 · Series: Other models
More machines from model year 1979
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Ford TW10 is a tractor built in 1979. Under the bonnet works a six-cylinder engine displacing 6.6 litres, producing 91 kW.
Power is transmitted through a Dual-power gearbox, drive type: 2-WD or 4-WD versions. Dimensions are 4.50 m by 2.60 m. Empty, it weighs 6,480 kg.
It runs on diesel; the engine is water-cooled. As standard, it runs on 11 x 16 (2-wd); ? x ? (4-wd) tyres at the front and 18.4 x 38 at the rear. The predecessor was the Ford ?. Within the range, rated power spans from 9.7 to 300 kW; with 91 kW, the TW10 sits in the upper third. Directly alongside are the 8340 sle with 89 kW below and the 8340 SLE 4X4 with 92 kW above.
Technical data
Engine
| Engine make | Ford Enginescorrect |
|---|---|
| Engine model | ?correct |
| Fuel | dieselcorrect |
| Power | 94 hp(drawbar) 110 hp(PTO) hp (91 kW)correct |
| Cylinders | 6correct |
| Displacement | 6,600 cm³ (401 cu inches (6.6 litres))correct |
| Bore | 4.4 inches (112 mm)correct |
| Stroke | 4.4 inches (112 mm)correct |
| Turbocharger | yescorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,500 mmcorrect |
|---|---|
| Length | 145 inches (4450 mm)correct |
| Width | 2,600 mmcorrect |
| Width | 104.5 inches (2650 mm)correct |
| Height | 116 inches (2950 mm) (cab)correct |
| Wheelbase | 110 inches (2780 mm)correct |
| Unladen weight | 6,480 kg (11,500 lbs (5,200 kg))correct |
| Gross vehicle weight | 7,770 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | Dual-powercorrect |
| Gearbox make | Fordcorrect |
| Gears | 16correct |
| Forward gears | 16correct |
| Reverse gears | 4correct |
| Front tyres | 11 x 16 (2-wd); ? x ? (4-wd)correct |
| Rear tyres | 18.4 x 38correct |
Working data
| Lifting capacity | 6, 000 lb (2700 kg)correct |
|---|---|
| Fuel tank capacity | 33 gal (124 litres); 25 gal (95 litre) Auxiliary tankcorrect |
| PTO output | 110 hpcorrect |
| Linkage category | Cat IIcorrect |
Origin and approval
| Plant | Basildon, UKcorrect |
|---|---|
| Cab | Ford 'Bubble cab'correct |
| Predecessor | Ford ?correct |
Other data
| Cab make | Fordcorrect |
|---|
Where this model stands
Power-to-weight ratio: 14 kW/t (91 kW / 6.5 t)
Power class: Large (100–180 hp)
Stronger than 77% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford TW10 have?
The Ford TW10 delivers 91 kW.
How much does the Ford TW10 weigh?
The unladen weight is 6,480 kg.
What is the gross vehicle weight of the Ford TW10?
7,770 kg.
What engine does the Ford TW10 have?
6 cylinders, 6,600 cm³ displacement, Diesel.
What is the PTO output of the Ford TW10?
PTO output is 110 hp.
What are the dimensions of the Ford TW10?
4,500 mm × 2,600 mm.
When was the Ford TW10 built?
Production years: 1979.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
