Ford 5000
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

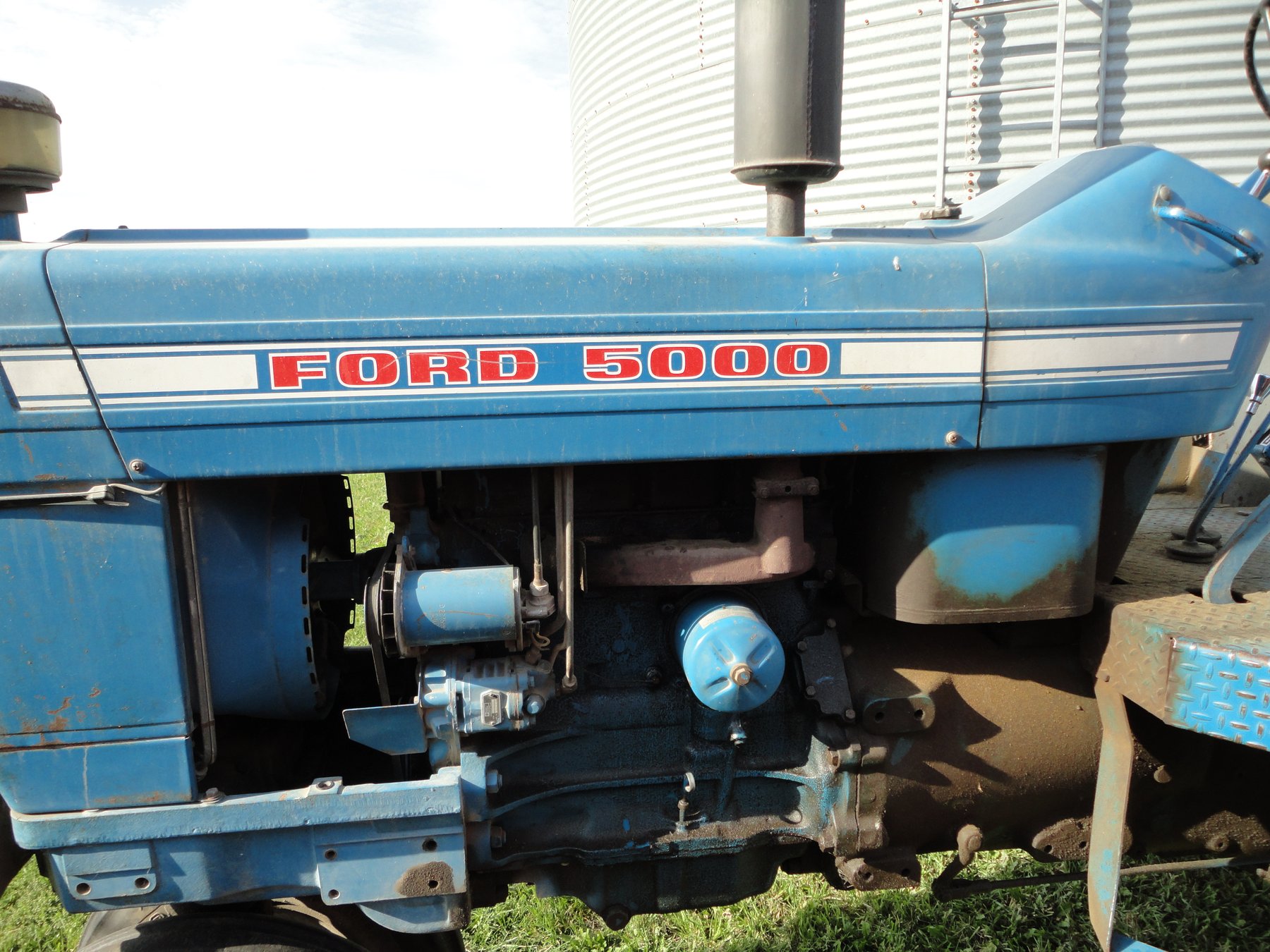

The Ford 5000 is a tractor from Ford. The four-cylinder engine, displacing 4 cm³, produces 74 kW.
Power is transmitted through a Manual 2 range and Select-O-Speed ( gearbox, drive type: takavetoinen.
It runs on 75 l; the engine is water-cooled. As standard, it runs on 6.0 x 16 or 7.5 x 16 Option tyres at the front and 12.4 x 38 or 16.9 x 30 at the rear. This model followed the Fordson Major, before the Ford 5600 took over. Within the range, rated power spans from 9.7 to 300 kW; with 74 kW, the 5000 sits in the mid-field. Directly alongside are the 7710-FC31 with 72 kW below and the 7840-FE6-4x4/262 with 75 kW above.
Technical data
Engine
| Engine make | Ford enginescorrect |
|---|---|
| Engine model | Ford ?; Upgraded from sn ?correct |
| Fuel | 75 lcorrect |
| Power | 65 hp (74DIN hp/2100rpm kW)correct |
| Cylinders | 4correct |
| Displacement | 4 195 cm³correct |
| Displacement | 233/264 cu inches (3.8/4.2 litre)correct |
| Bore | 4.2/4.4 inches (107/112 mm)correct |
| Stroke | 4.2 inches (107 mm)correct |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 142 inches (3600 mm)correct |
|---|---|
| Width | 69 inches (1720 mmcorrect |
| Height | 86 inches (2200 mm) (exhaust)correct |
| Wheelbase | 88 inches (2220 mm)correct |
| Turning circle | 12' 3" (3600 mm)correct |
| Unladen weight | from 5800 lbcorrect |
Drivetrain and chassis
| Drive | takavetoinencorrect |
|---|---|
| Gearbox | manual gearbox 2 range or Select-O-Speed (correct |
| Gearbox make | Fordcorrect |
| Forward gears | 8 or 10 (S-o-S)correct |
| Reverse gears | 2 or 2correct |
| Clutch | Dry Clutch or ?correct |
| Front tyres | 6.0 x 16 or 7.5 x 16 Optioncorrect |
| Rear tyres | 12.4 x 38 or 16.9 x 30correct |
Working data
| Fuel tank capacity | 20 gal (us) 75 ltrcorrect |
|---|---|
| Linkage category | Cat I, Cat IIcorrect |
Origin and approval
| Plant | Basildon, Essex, United Kingdomcorrect |
|---|---|
| Cab | Safetycorrect |
| Predecessor | Fordson Majorcorrect |
| Successor | Ford 5600correct |
| List price when new | ?correct |
Other data
| Cab make | Fordcorrect |
|---|
Frequently asked questions
How much power does the Ford 5000 have?
The Ford 5000 delivers 65 hp.
What engine does the Ford 5000 have?
4 cylinders, 75 l.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
