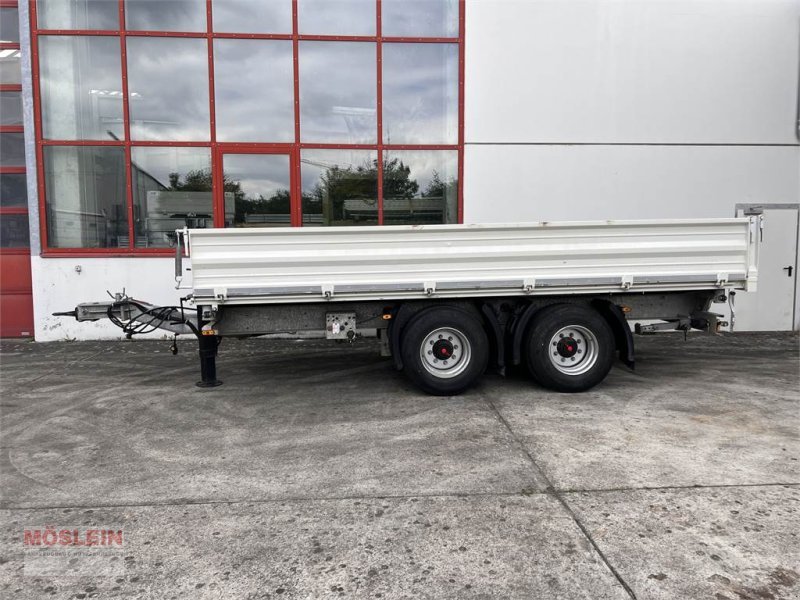

Floor FLO-18-36S2
Built: 2007-2009 · Series: Trailers over 10 t (Class O4)
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Floor trailers over 10 t (Class O4) – the Dutch walking-floor semi-trailer specialist from Reusel: 503 versions for bulk, waste and recycling transport, gross weights up to 70 t
Class O4 groups, according to registration data from the Netherlands and Finland, all trailers with a permissible gross weight over 10 tonnes. Floor of Reusel-De Mierden in North Brabant specialises in walking-floor semi-trailers: a hydraulically driven, segmented load floor discharges bulk material without tipping – a design common in waste, compost, wood-chip and recycling transport, where the load must not or cannot be tipped. The register's type codes (the AXA, AXC, AXD, AXK, AXZ and FL0 ranges) distinguish the individual versions, though Floor does not explain the letters in detail.
Read on 3 more paragraphs
The register lists 503 versions with unladen weights of 2,440 to 20,580 kg and permissible gross weights of 11,000 to 70,000 kg. Lengths are recorded for 259 of the 503 models, ranging from 4,130 to 14,200 mm, and width for all 503 from 2,300 to 2,780 mm.
In the walking-floor segment Floor competes with makers such as Legras and successors to the Fruehauf brand; the register's comparatively narrow weight and width span against other O4 collector pages shows this to be a specialised, little-diversified product line.
On used walking-floor trailers, what counts especially is the condition and free movement of the floor slats and the hydraulic cylinders driving the floor, the tightness of the floor construction, the condition of the axles (BPW/SAF) and EBS braking system, air suspension, frame corrosion, and residual moisture and odour in the load area as a sign of previous cargo; an unbroken inspection history and evidence of the condition of the hydraulic pump round off the check.
Sources: Kennwerte der Modelle Floor, Floor
Technical data
Dimensions and weights
| Length | 13,990 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 10,000 mmcorrect |
| Unladen weight | 9,840 kgcorrect |
| Gross vehicle weight | 50,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Floor FLO-18-36S2 weigh?
The unladen weight is 9,840 kg.
What is the gross vehicle weight of the Floor FLO-18-36S2?
50,000 kg.
Up to what speed is the Floor FLO-18-36S2 approved?
Approved up to 100 km/h.
What are the dimensions of the Floor FLO-18-36S2?
13,990 mm × 2,550 mm.
When was the Floor FLO-18-36S2 built?
Production years: 2007-2009.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
