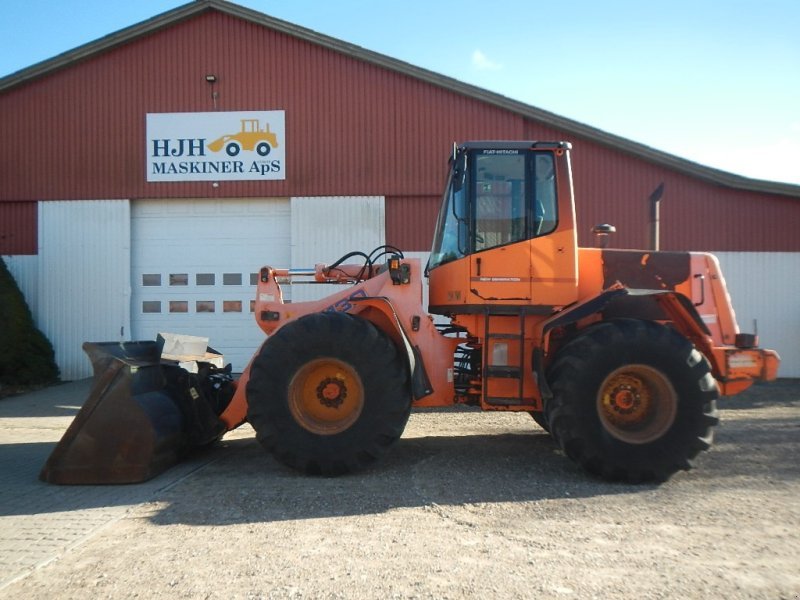

Fiat-Hitachi W130PL

Series: Fiat-Hitachi Integrated Tool Carrier

Source: https://www.technikboerse.com/tr/gebraucht/tekerlekli-yuekle

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fiat-Hitachi W130PL belongs to the Fiat-Hitachi Integrated Tool Carrier series. The engine delivers 141.9 hp (96.9 kW), has 6 cylinders, with a displacement of 5,901 cm³. Torque is 558.1 Nm. Rated speed is 2,200 rpm. The unladen weight is 12,410 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 432.8 mm. The tank holds 170.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 165 l/min. The hydraulic tank holds 105.2 litres. The cooling system holds 28 litres. The oil fill is 12.1 litres. The electrical system runs on 24 V. The engine fitted is the Fiat- 8065T. Tyre size: 20,5 - 25 XTLA / 555/70 - 25 XLD. Rated output across the Fiat-Hitachi range ranges from 100.7 to 238.3 hp; the W130PL sits in the lower part of that range with 141.9 hp. Its immediate neighbours are the FB110.2 below it with 109.5 hp and the W170 above it with 184.5 hp. 13 Fiat-Hitachi models across 4 series are on record. The model is listed under Telehandlers. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFiat- 8065Tcorrect
Power141.9 hp (96.9 kW)correct
Rated speed2,200 rpmcorrect
Torque558.1correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement5,901 cm³correct
Aspirationturbochargedcorrect
Coolant capacity28 lcorrect
Engine oil capacity12.1 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance432.8correct
Unladen weight12,410 kgcorrect

Drivetrain and chassis

Gearbox typePower-Shift Countershaftcorrect
Forward gears4correct
Reverse gears4correct
Tyre size20.5 - 25 XTLA / 555/70 - 25 XLDcorrect
System voltage24 Vcorrect

Working data

Pump flow165 l/mincorrect
Hydraulic oil capacity105.2 lcorrect
Fuel tank capacity170.3 lcorrect

Other data

Height3,252.2correct

Where this model stands

Power-to-weight ratio: 7.8 kW/t (97 kW / 12.4 t)

Stronger than 80% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiat-Hitachi W130PL have?

The Fiat-Hitachi W130PL delivers 142 hp.

How much does the Fiat-Hitachi W130PL weigh?

The unladen weight is 12,410 kg.

What engine does the Fiat-Hitachi W130PL have?

6 cylinders, 5,901 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
