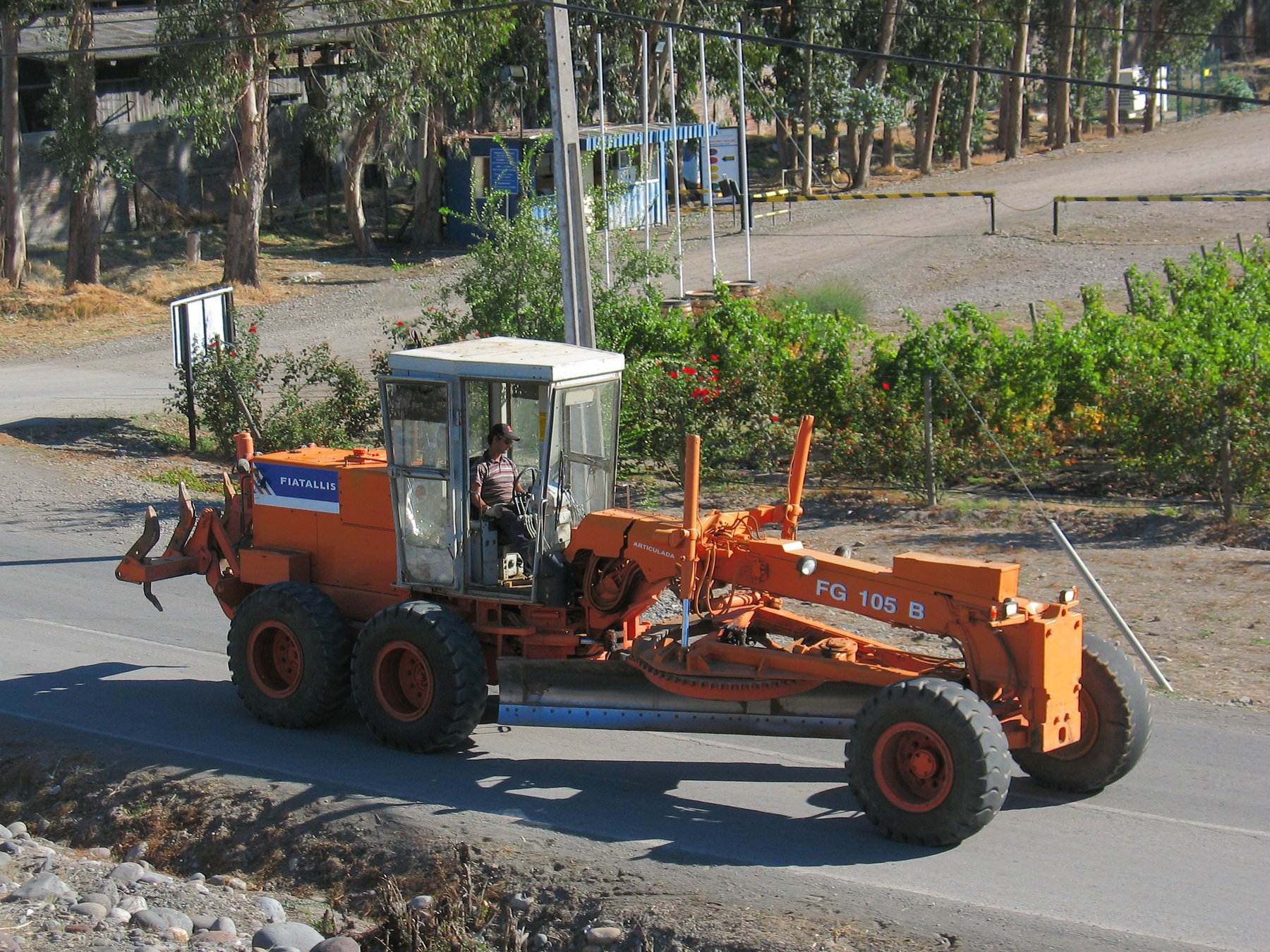

Fiat-Hitachi FG105

Series: Fiat-Hitachi Motor Grader

Source: https://commons.wikimedia.org/wiki/File:Fiatallis_FG_105-B_1

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FG105 from Fiat-Hitachi is part of the Fiat-Hitachi Motor Grader series. The engine delivers 199.9 hp, has 6 cylinders, with a displacement of 8,300 cm³. Rated speed is 2,300 rpm. The unladen weight is 15,600 kg. The wheelbase measures 1,539.2 mm. Ground clearance is 640.1 mm. The tank holds 299 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 94.6 litres. Working pressure is 28.6 bar. The cooling system holds 27.3 litres. The electrical system runs on 24 V. The engine fitted is the 6 CT8,3. Tyre size: 13X24(10PR). Rated output across the Fiat-Hitachi range ranges from 100.7 to 238.3 hp; the FG105 sits in the upper part of that range with 199.9 hp. Its immediate neighbours are the W170 below it with 184.5 hp and the W230 above it with 238.3 hp. 13 Fiat-Hitachi models across 4 series are on record. The model is listed under Motor graders. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model	6 CT8.3correct
Power	199.9 hpcorrect
Rated speed	2,300 rpmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	8,300 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	27.3 lcorrect

Dimensions and weights

Length	8,522.2correct
Wheelbase	1,539.2correct
Ground clearance	640.1correct
Unladen weight	15,600 kgcorrect

Drivetrain and chassis

Gearbox type	full powershift transmissioncorrect
Tyre size	13X24(10PR)correct
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	94.6 lcorrect
Hydraulic pressure	28.6correct
Fuel tank capacity	299 lcorrect

Where this model stands

Power-to-weight ratio: 9.4 kW/t (147 kW / 15.6 t)

Stronger than 64% of the motor graders in the register — out of 186 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiat-Hitachi FG105 have?

The Fiat-Hitachi FG105 delivers 200 hp.

How much does the Fiat-Hitachi FG105 weigh?

The unladen weight is 15,600 kg.

What engine does the Fiat-Hitachi FG105 have?

6 cylinders, 8,300 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
