Ferguson TED 20
Built: 1947-1956 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

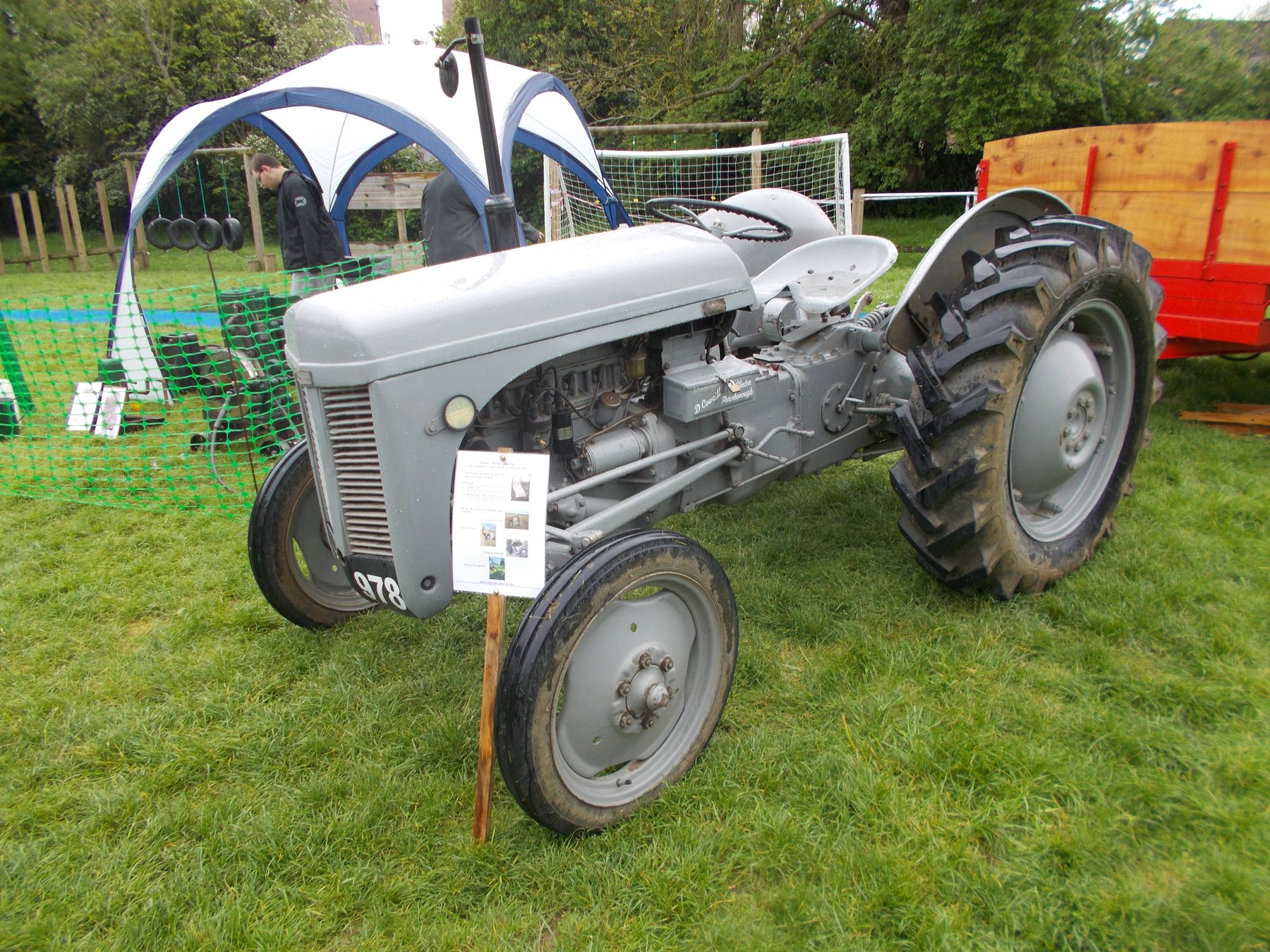

Built in 1947-1956, the Ferguson TED 20 is a tractor from Ferguson. Power comes from a four-cylinder engine; from 2.1 litres it draws 19 kW.
It measures 2.92 m in length and 1.71 m in width. Unladen weight is 1,142 kg.
It runs on petrol; the engine is water-cooled. Within the range, rated power spans from 17.5 to 37.5 kW; with 19 kW, the TED 20 sits at the bottom end. Directly alongside are the TEA20 with 17.5 kW below and the FERGUSON with 19.4 kW above.
Technical data
Engine
| Engine make | Standard Motor Companycorrect |
|---|---|
| Fuel | petrolcorrect |
| Power | 28 hp (19 kW)correct |
| Cylinders | 4correct |
| Displacement | 2,088 cm³correct |
| Displacement | 2,088 cccorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,920 mmcorrect |
|---|---|
| Width | 1,705 mmcorrect |
| Unladen weight | 1,142.5 kgcorrect |
| Gross vehicle weight | 1,150 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gears | 4correct |
Origin and approval
| Plant | Irelandcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.6 kW/t (19 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 13% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ferguson TED 20 have?
The Ferguson TED 20 delivers 28 hp.
How much does the Ferguson TED 20 weigh?
The unladen weight is 1,142 kg.
What is the gross vehicle weight of the Ferguson TED 20?
1,150 kg.
What engine does the Ferguson TED 20 have?
4 cylinders, 2,088 cm³ displacement, gasoline.
What are the dimensions of the Ferguson TED 20?
2,920 mm × 1,705 mm.
When was the Ferguson TED 20 built?
Production years: 1947-1956.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
