Fasco Able MS100L-2

Series: Other models

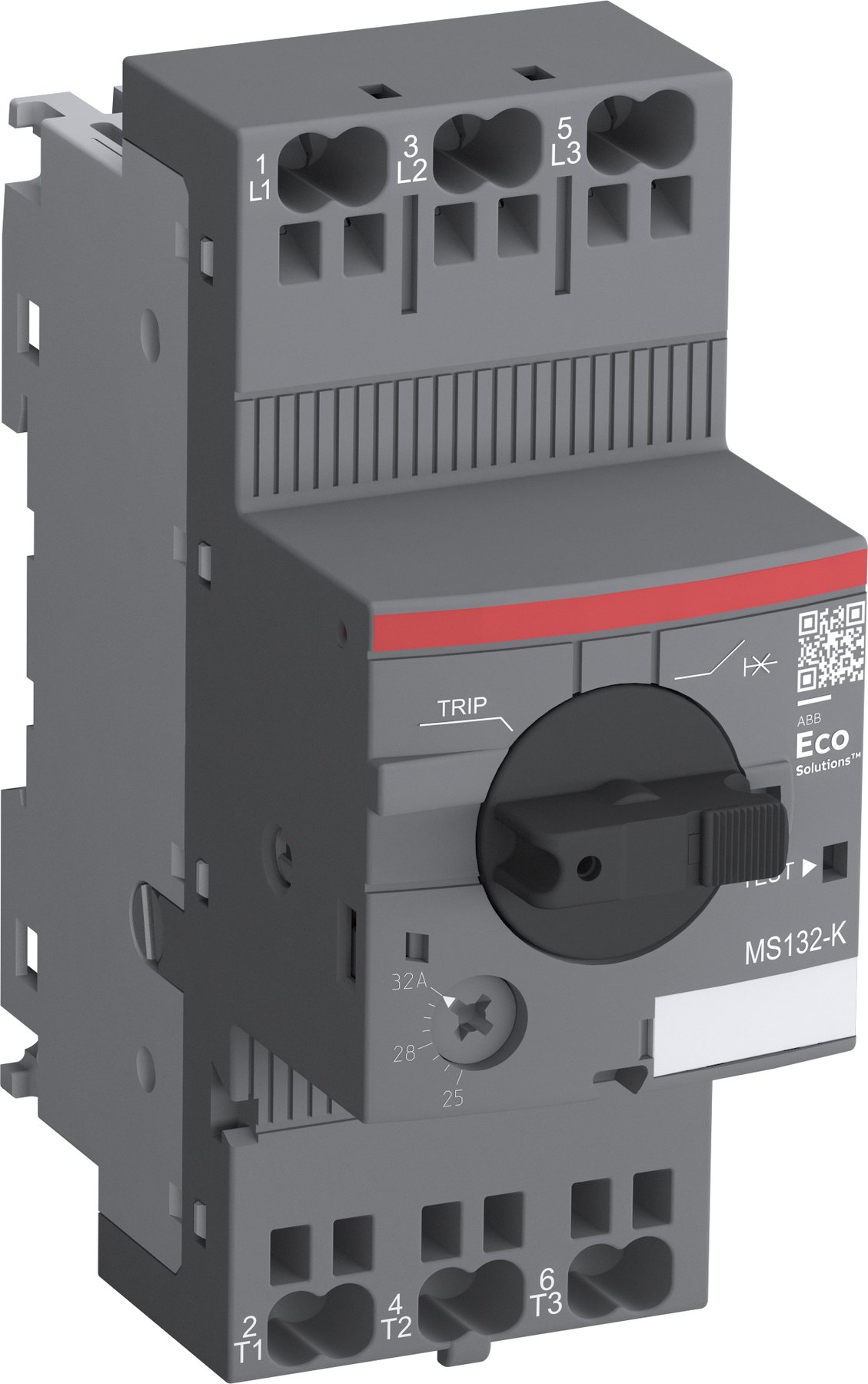

The photo shows the MS132S2-2 from the same series. Source: https://new.abb.com/products/1SAM350010R1002/ms132-0-25k

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fasco Able MS100L-2 is a three-phase induction motor built by Fasco Able. The rated output is 3 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 100 L in foot-mounted form. The protection class is IP55. The efficiency is 83.3 per cent at full load, 85.3 per cent at 75 per cent load and 84.6 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B14. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Fasco Able range ranges from 0.75 to 160 kW; the MS100L-2 sits at the bottom of that range with 3 kW. Its immediate neighbours are the MS90L-2 below it with 2.2 kW and the MS112M-2 above it with 4 kW. 30 Fasco Able models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output3 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14correct
Efficiency at full load83.3 %correct
Efficiency at 75 % load85.3 %correct
Efficiency at half load84.6 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Fasco Able MS100L-2 have?

The Fasco Able MS100L-2 delivers 3 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
