Fantech Y2AE112M-6 B14

Series: Other models

Source: https://www.kleinanzeigen.de/s-anzeige/elektromotor-b3-b5-od

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fantech Y2AE112M-6 B14 is a three-phase induction motor from the Fantech range. The rated output is 2.2 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 112 M in foot-mounted form. The protection class is IP55. The efficiency is 81.4 per cent at full load, 82 per cent at 75 per cent load and 79.9 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B14. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Fantech range ranges from 0.75 to 11 kW; the Y2AE112M-6 B14 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the Y2AE90S-2 B5 below it with 1.5 kW and the Y2AE100L-2 above it with 3 kW. 96 Fantech models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine familyY2AE112M-6correct
Engine familiesY2AE112M-6correct
Rated output2.2 kWcorrect

Electrical data

Number of poles6correct
Protection classIP55correct

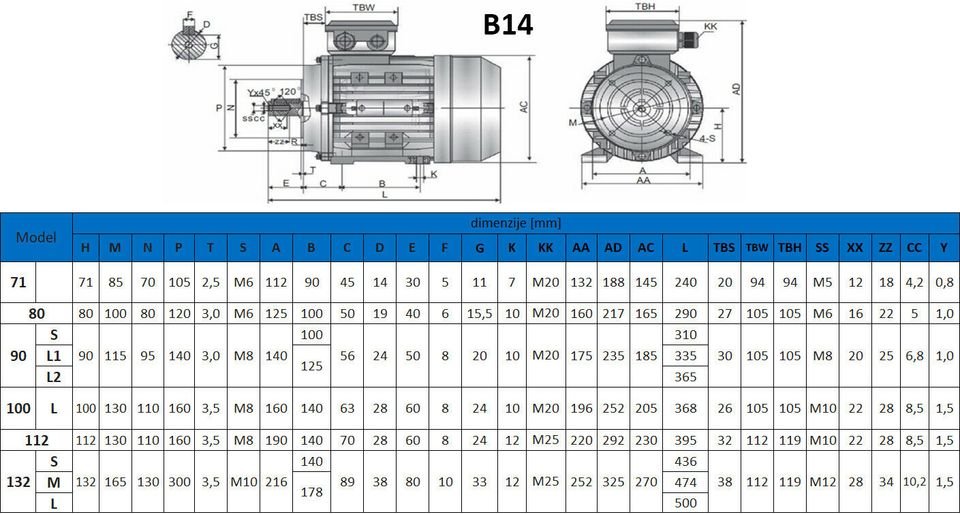

Frame size112 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B14correct
Efficiency at full load81.4 %correct
Efficiency at 75 % load82 %correct
Efficiency at half load79.9 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Fantech Y2AE112M-6 B14 have?

The Fantech Y2AE112M-6 B14 delivers 2.2 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
