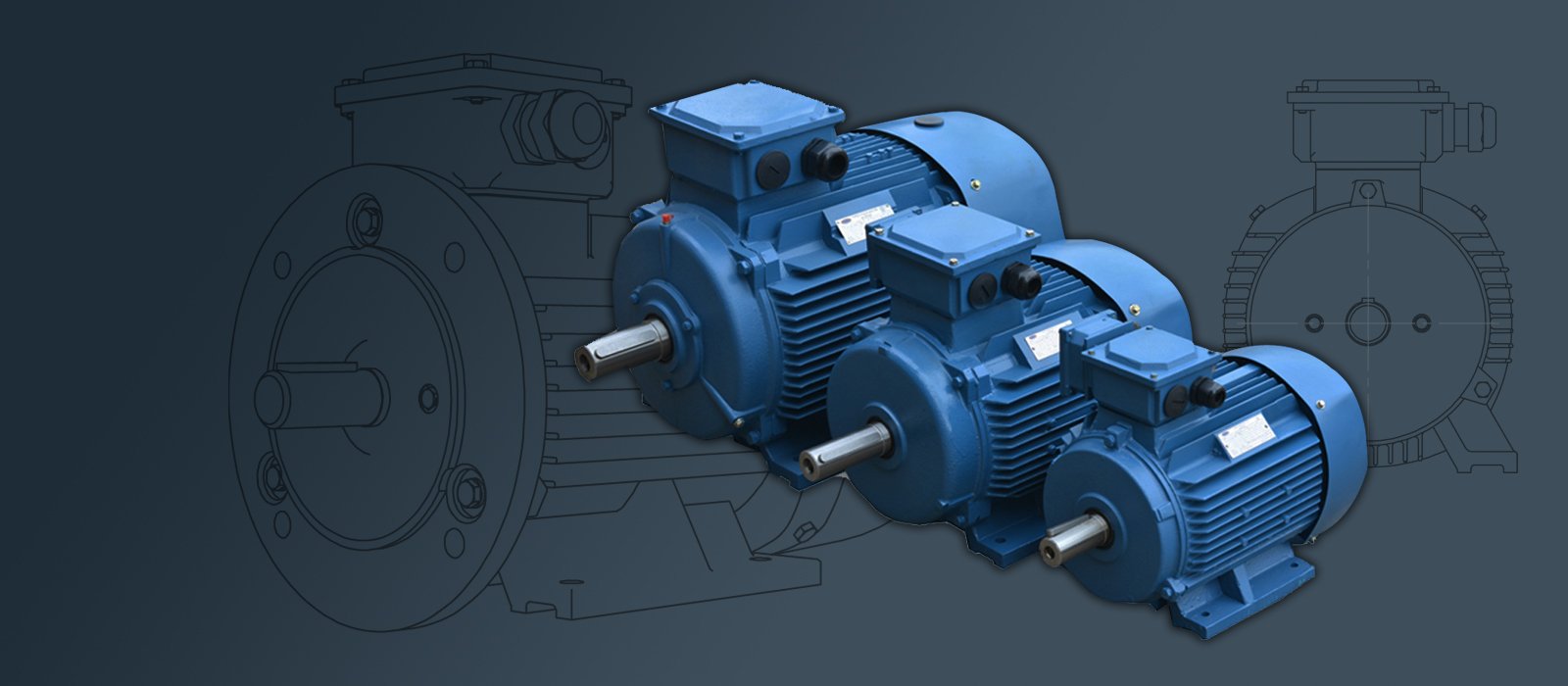

Emtomec PHE250M2
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Emtomec – other models: the collective page of MEPS-registered three-phase motors outside the named ranges, manufactured in China, frame sizes 80 to 355, 0.75 to 160 kW, 2- to 6-pole
This page gathers the Emtomec three-phase motors the Australian energy-efficiency register could not assign to a named range. No confirmed data on the company itself is available; the identifiers in the register, such as HE100L6 or HE160M2, clearly follow the scheme HE<frame size><length><pole count> with no separators.
Read on 3 more paragraphs
The register lists here 69 versions with 0.75 to 160 kW, two- to six-pole, full-load efficiencies from 75.97 to 96.25% and at 75% load from 75.97 to 96.33%. Frame sizes run from 80 to 355, protection ratings from IP54 to IP66, usually recorded as a combination of several classes per range. China is recorded throughout as the manufacturing country. Testing followed only the 2019 GEMS determination, with test methods 2-1-1B (38), A (25) and B (6); of the 69 motors, only 39 carry a High Efficiency Level classification, 26 at the 2005 level (roughly IE2) and 8 at the 2018 level (roughly IE3), 5 unclassified.
Emtomec thus appears as one of many Chinese standard-motor suppliers in the Australian market, offering a broad, value-priced range alongside the established international brands for pumps, fans, conveyors and general drive tasks.
When buying used, what matters is bearing condition and a checked insulation resistance of the winding, the visible condition of the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and, where present, the efficiency class; since more than half the motors carry no High Efficiency classification, the nameplate is worth checking closely before buying. Spares and support depend on the distribution channel.
Sources: Kennwerte der Modelle Emtomec (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 55 kWcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP55, IP56, IP66correct |
| Frame size | 250 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B35, V1, V3, V5correct |
| Efficiency at full load | 94.3 %correct |
| Efficiency at 75 % load | 94.5 %correct |
| Efficiency at half load | 93.9 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 61972correct |
Frequently asked questions
How much power does the Emtomec PHE250M2 have?
The Emtomec PHE250M2 delivers 55 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
