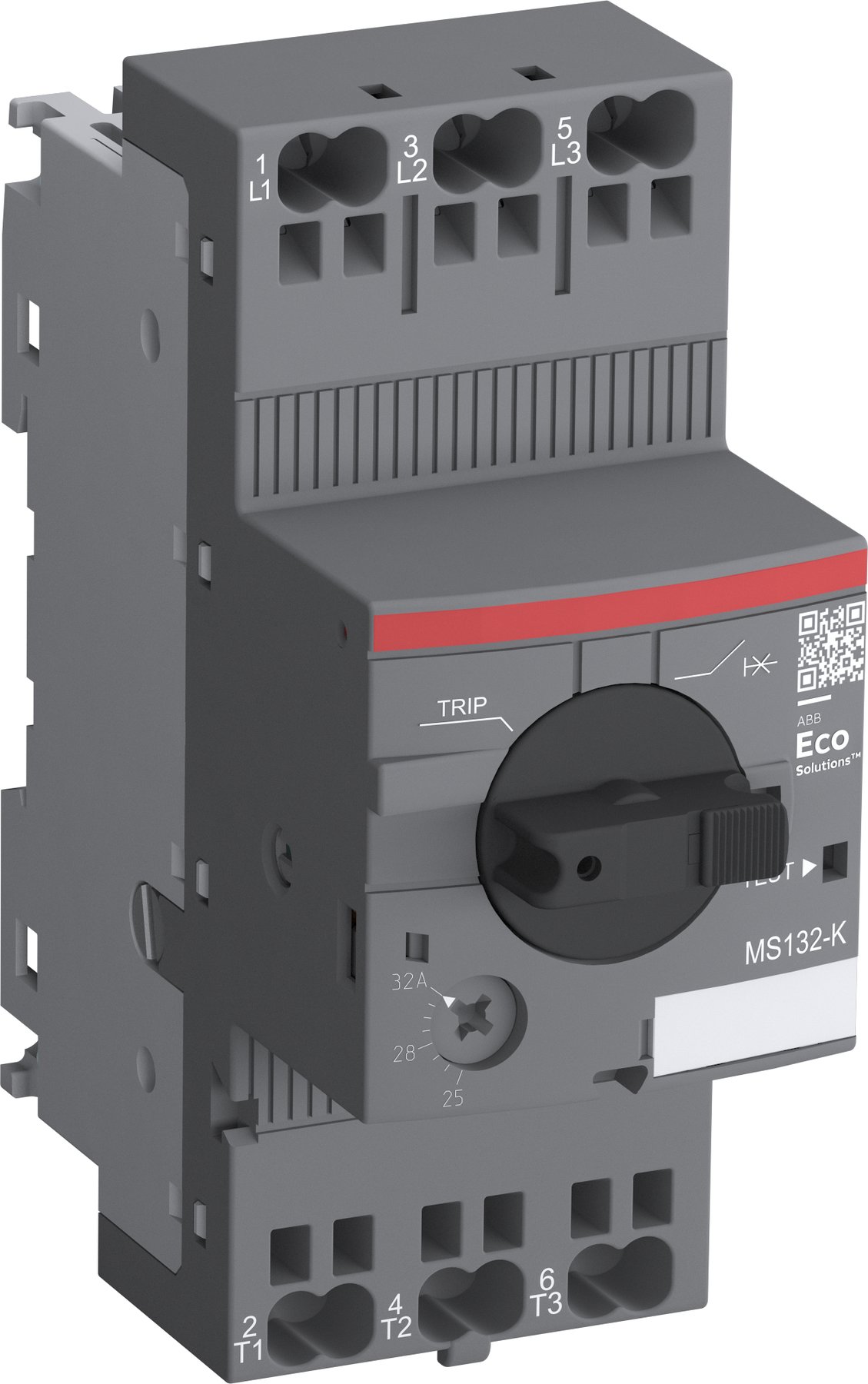

EMT MS132MB6

Series: Other models

Source: https://new.abb.com/products/1SAM350010R1006/ms132-1-6k

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EMT MS132MB6 is a three-phase induction motor from the EMT range. The rated output is 5.5 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 132 M in foot-mounted form. The protection class is IP55. The efficiency is 86.9 per cent at full load, 86.3 per cent at 75 per cent load and 85.1 per cent at half load. The motor weighs 56 kg. At full load it delivers 55 Nm. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEC 60034-2-1 (Edition 2.0). Rated output across the EMT range ranges from 0.75 to 160 kW; the MS132MB6 sits at the bottom of that range with 5.5 kW. Its immediate neighbours are the Y2E 112M4 below it with 4 kW and the e-Drive AHE 132M4 above it with 7.5 kW. 274 EMT models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

EMT – other models: the collective page of MEPS-registered three-phase motors outside the named ranges, frame sizes 80 to 355, 0.75 to 160 kW, 2- to 8-pole

This page gathers the three-phase motors carried in the Australian energy-efficiency register under the EMT brand, which the register does not assign to a named range. No reliable information is available on EMT's headquarters or group ownership. Alongside the core MS designation with frame size and pole count (e.g. MS100L2), the model list also contains individual entries such as Fantech or Powerdrive, which could indicate OEM supply for other brands; exactly how these entries relate to the technical figures in the list cannot be reliably established from the dump.

Read on 3 more paragraphs

The register lists here 92 versions with 0.75 to 160 kW, two- to eight-pole, full-load efficiencies from 71.2 to 95.46% and at 75% load from 72.2 to 95.57%. Frame sizes run from 80 to 355 under IEC, mostly in protection rating IP55, a smaller share additionally with IP56 or IP02. Manufacturing is consistent in China, testing followed mostly the older 2000 Legacy standard, a smaller share the 2019 GEMS determinations, with test method A. Under the Australian High Efficiency Level only one of the 92 motors reaches the 2005 level, the remaining 91 carry no classification. Mounting codes mostly show the broad combination of foot, flange and vertical forms from B3 to V36.

The page thus covers a broad IEC standard-motor programme without significant efficiency certification; the wide spread of frame sizes up to 355 shows that alongside smaller drives, EMT also carries large industrial motors in its programme.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and efficiency class; for versions labelled Fantech or Powerdrive it is also worth checking whether they are indeed identical EMT motors. Spares depend on the distribution channel.

Sources: Kennwerte der Modelle EMT (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output5.5 kWcorrect

Dimensions and weights

Weight56 kgcorrect

Electrical data

Rated voltage415/690 Vcorrect
Number of poles6correct
Protection classIP55correct
Frame size132 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B14, B34, V1, V3, V5, V6, V15, V18, V19, V36correct
Efficiency at full load86.9 %correct
Efficiency at 75 % load86.3 %correct
Efficiency at half load85.1 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the EMT MS132MB6 have?

The EMT MS132MB6 delivers 5.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
