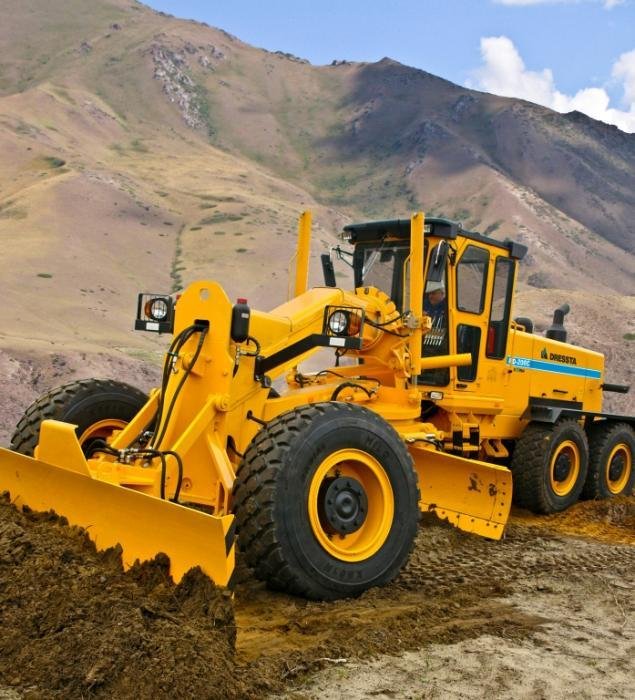

Dressta RD200C

Series: Dressta Motor Grader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Dressta RD200C is a model in the Dressta Motor Grader series. The engine delivers 180.5 hp, has 6 cylinders, with a displacement of 6,702.3 cm³. Rated speed is 2,400 rpm. The wheelbase measures 7,303 mm. Ground clearance is 579.1 mm. The tank holds 380.1 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 130.2 litres. Working pressure is 140 bar. The cooling system holds 40.1 litres. The electrical system runs on 24 V. The engine fitted is the QSB 6,7. Tyre size: 14,00 - 24 G-2 16PR. Rated output across the Dressta range ranges from 81.1 to 552.6 hp; the RD200C sits in the lower part of that range with 180.5 hp. Its immediate neighbours are the TD14M LT below it with 175.4 hp and the 530H above it with 207.8 hp. 32 Dressta models across 3 series are on record. The model is listed under Motor graders. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model	QSB 6.7correct
Power	180.5 hpcorrect
Rated speed	2,400 rpmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	6,702.3 cm³correct
Aspiration	turbocharged and CACcorrect
Coolant capacity	40.1 lcorrect

Dimensions and weights

Length	9,540.2correct
Wheelbase	7,303correct
Ground clearance	579.1correct

Drivetrain and chassis

Gearbox type	powershift transmission transmissioncorrect
Tyre size	14.00 - 24 G-2 16PRcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	130.2 lcorrect
Hydraulic pressure	140correct
Fuel tank capacity	380.1 lcorrect

Frequently asked questions

How much power does the Dressta RD200C have?

The Dressta RD200C delivers 180 hp.

What engine does the Dressta RD200C have?

6 cylinders, 6,702 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
