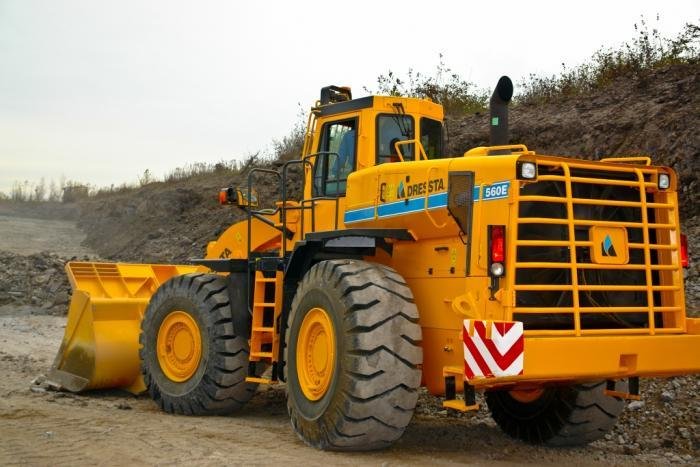

Dressta 560E

Series: Dressta Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Dressta Wheel Loader series from Dressta includes the 560E. The engine delivers 456.2 hp (318.4 kW), has 6 cylinders, with a displacement of 14,945 cm³. Torque is 2,101.5 Nm. Rated speed is 1,400 rpm. The unladen weight is 41,979.5 kg. Ground clearance is 502.9 mm. The tank holds 700.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 2,000 rpm. The pump delivers 530 l/min. The hydraulic tank holds 204.4 litres. The cooling system holds 82.1 litres. The electrical system runs on 12 V. The engine fitted is the QSX15. Tyre size: 29,5x29.34PR(L-3). The Dressta Wheel Loader series covers 5 models. Rated output within it ranges from 207.8 to 456.2 hp; the 560E sits at the top of that range with 456.2 hp. Its immediate neighbours are the 555C below it with 339.6 hp. 32 Dressta models across 3 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine model	QSX15correct
Power	456.2 hp (318.4 kW)correct
Rated speed	1,400 rpmcorrect
Torque	2,101.5correct
Speed at max. torque	2,000 rpmcorrect
Cylinders	6correct
Displacement	14,945 cm³correct
Aspiration	Turbocharged and CACcorrect
Coolant capacity	82.1 lcorrect

Dimensions and weights

Ground clearance	502.9correct
Unladen weight	41,979.5 kgcorrect

Drivetrain and chassis

Gearbox type	Electrically controlled, full soft shift transmission, driven by a double univercorrect
Forward gears	3correct
Reverse gears	3correct
Tyre size	29.5x29, 34PR(L-3)correct
System voltage	12 Vcorrect

Working data

Pump flow	530 l/mincorrect
Hydraulic oil capacity	204.4 lcorrect
Fuel tank capacity	700.3 lcorrect

Other data

Height	4,114.8correct

Where this model stands

Power-to-weight ratio: 7.6 kW/t (318 kW / 42 t)

Stronger than 96% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Dressta 560E have?

The Dressta 560E delivers 456 hp.

How much does the Dressta 560E weigh?

The unladen weight is 41,980 kg.

What engine does the Dressta 560E have?

6 cylinders, 14,945 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
