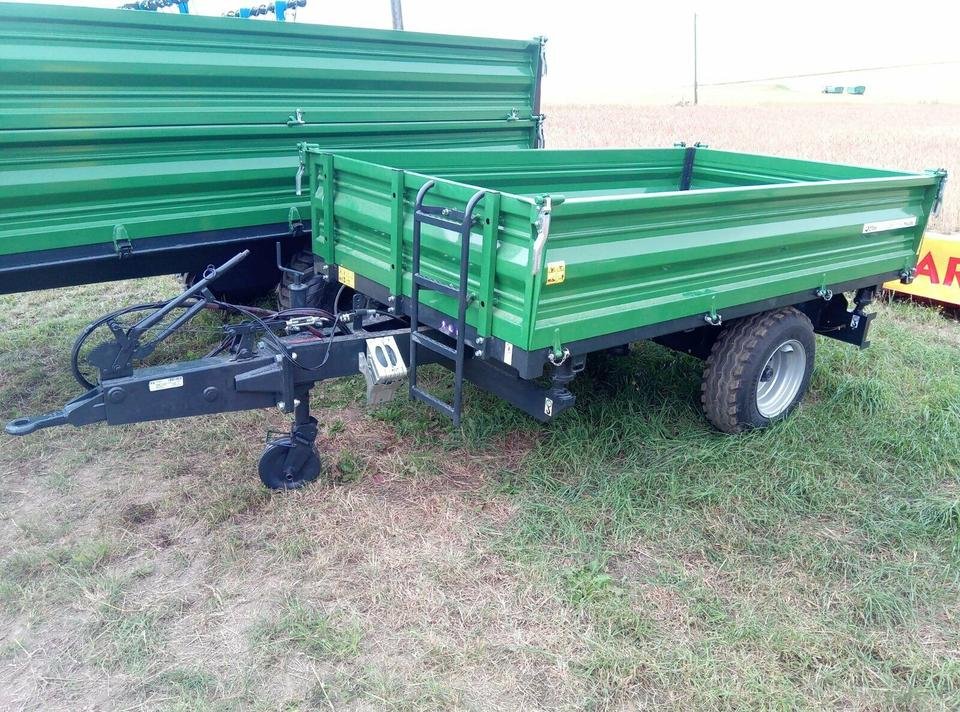

Draf PE 4 - 5,5
Built: 2007-2007 · Series: Other models
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Draf – other models: the collective page of trailers outside the named ranges, with the AD, AF, AV, MD, MT, PE and TEL type series, 2.5 to 8.8 t unladen weight, 5.5 to 41 t gross vehicle weight
This page gathers the Draf trailers the register could not assign to a named range. The model list falls into several type series – AD, AF and AV, MD and MT, and PE, TEL and TT – each with an attached pair of numbers, as in MD 20-20 or AV 12-20.
Read on 3 more paragraphs
The register lists 27 versions here with unladen weights from 2,540 to 8,760 kg and gross vehicle weights from 5,500 to 41,000 kg. Lengths run from 10,000 to 13,950 mm, widths from 2,300 to 2,550 mm.
With a span from light to heavy semi-trailer, Draf covers several fields of commercial vehicle use and so competes with other European builders of tandem and tridem semi-trailers for general cargo and heavy haulage; the consistent length range of roughly 10 to 14 m shows that most of these semi-trailers are built for classic articulated operation.
When buying used, this class calls for checking the condition of the frame and axle mounts, corrosion on load-bearing parts, the function of the brake system and overrun coupling, and tyre and wheel bearing wear; on the long versions the frame is also worth checking for twist. Spare parts come through the manufacturer and workshops specialising in commercial vehicle trailers; on the heaviest versions the condition of the twin tyres and the function of the support legs are also worth a look.
Technical data
Dimensions and weights
| Length | 10,000 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Wheelbase | 6,200 mmcorrect |
| Unladen weight | 3,120 kgcorrect |
| Gross vehicle weight | 5,500 kgcorrect |
Drivetrain and chassis
| Wheels | 2correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Draf PE 4 - 5,5 weigh?
The unladen weight is 3,120 kg.
What is the gross vehicle weight of the Draf PE 4 - 5,5?
5,500 kg.
Up to what speed is the Draf PE 4 - 5,5 approved?
Approved up to 100 km/h.
What are the dimensions of the Draf PE 4 - 5,5?
10,000 mm × 2,300 mm.
When was the Draf PE 4 - 5,5 built?
Production years: 2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
