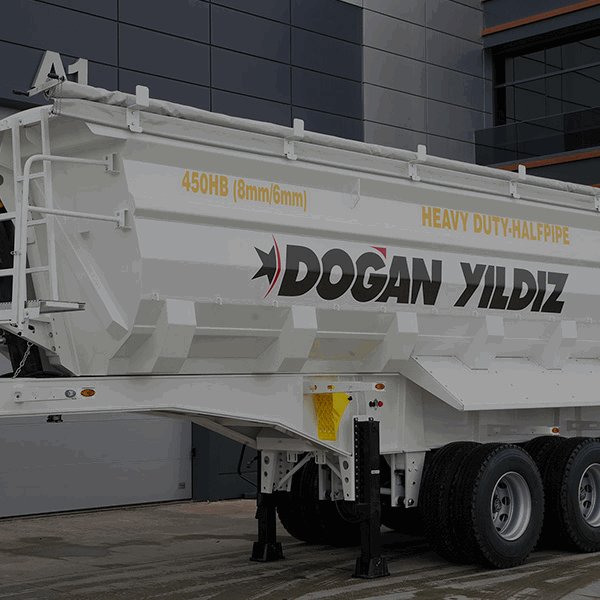

Dogan Yildiz PGS99
Built: 2022-2022 · Series: Other models
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Dogan Yildiz – other models: the semi-trailers with self-supporting body and the PGS99, unladen weight 4.75 to 7 tonnes, gross weight 45 tonnes
This page gathers the semi-trailers of Dogan Yildiz the register could not assign to a range of their own – the versions listed in the register as three-axle semi-trailers with self-supporting body, and the PGS99. The self-supporting body, in which the tank or frame carries the loads without a separate sub-structure, is common on tanker and silo semi-trailers and explains this range's low unladen weight relative to its gross weight.
Read on 3 more paragraphs
The register lists here 3 versions with unladen weights from 4,750 to 7,000 kg, a gross weight of 45,000 kg, lengths from 10,420 to 13,430 mm and a width of 2,550 mm.
With a gross weight of a constant 45 tonnes and lengths up to 13.43 metres, these semi-trailers match the dimensions of European heavy haulage. Towed by tractor units, they are designed for long-distance traffic, where a low unladen weight translates directly into extra payload.
On a used example, the condition of the body itself counts – on self-supporting construction, above all cracks and corrosion in the load-bearing walls – along with the kingpin and landing legs, axles and brake system with ABS or EBS, and suspension, tyres and rims. Maintenance history and inspection plates give further information on the state of preservation.
Sources: Kennwerte der Modelle Dogan Yildiz (weitere Modelle)
Technical data
Dimensions and weights
| Length | 13,430 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 8,610 mmcorrect |
| Unladen weight | 7,000 kgcorrect |
| Gross vehicle weight | 45,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Dogan Yildiz PGS99 weigh?
The unladen weight is 7,000 kg.
What is the gross vehicle weight of the Dogan Yildiz PGS99?
45,000 kg.
Up to what speed is the Dogan Yildiz PGS99 approved?
Approved up to 100 km/h.
What are the dimensions of the Dogan Yildiz PGS99?
13,430 mm × 2,550 mm.
When was the Dogan Yildiz PGS99 built?
Production years: 2022.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
