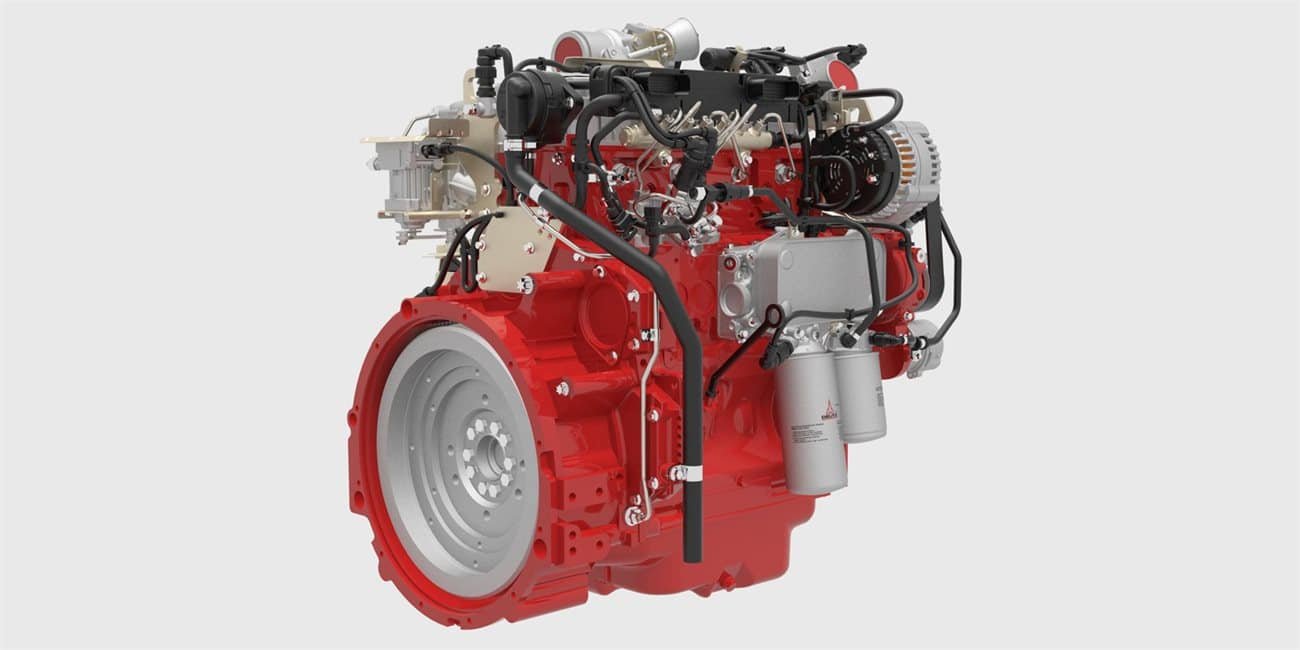

Deutz TCD4.1L4

Built: 2012-2026 · Series: Other models

Source: https://www.deutz.se/product/deutz/tcd-4-1-l4/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Deutz TCD4.1L4 is a machine built by Deutz. Production: 2012-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 80 kW. The engine is turbocharged. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Deutz range ranges from 18 to 520 kW; the TCD4.1L4 sits at the bottom of that range with 80 kW. Its immediate neighbours are the TD2011L04 below it with 56 kW and the TCD2012L04-2V above it with 84 kW. 193 Deutz models across 27 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine codeC4FI80correct
Engine familyCDZXL04.1013correct
Engine familiesDDZXL04.1013; CDZXL04.1013; EDZXL04.1013correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output80 kWcorrect
Power band75<=kW<130correct
Rated speed2,400 rpmcorrect
Maximum torque440 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore101 mmcorrect
Stroke126 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageInterim Tier 4correct

Origin and approval

VersionC4FI80correct
Built from2012correct
Built to2014correct
Model year from2012correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Deutz TCD4.1L4 have?

The Deutz TCD4.1L4 delivers 80 kW.

When was the Deutz TCD4.1L4 built?

Production years: 2012-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
