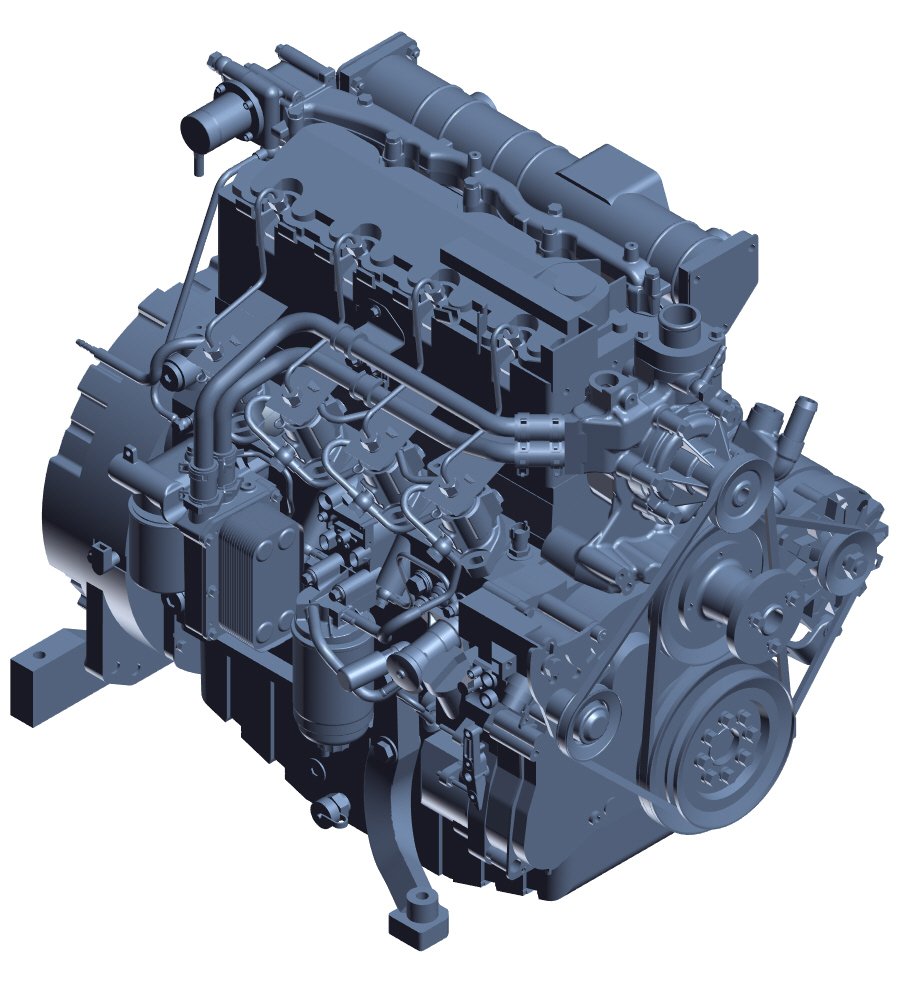

Deutz TCD2011L03

Built: 2012-2012 · Series: Other models

Source: https://www.deutz.com.au/deutz-2011-engine-series/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TCD2011L03 comes from Deutz. Production: 2012. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 45 kW. The engine is turbocharged. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a fixed-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Deutz range ranges from 18 to 520 kW; the TCD2011L03 sits at the bottom of that range with 45 kW. Its immediate neighbours are the D2011L04W below it with 44 kW and the D914L04 above it with 47 kW. 193 Deutz models across 27 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine codeC3UI45correct
Engine familyCDZXL02.7096correct
Engine familiesCDZXL02.7096correct
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output45 kWcorrect
Power band37<=kW<56correct
Rated speed2,300 rpmcorrect
Maximum torque200 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore96 mmcorrect
Stroke125 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeFixed Turbochargercorrect
Charge-air coolingaircorrect
Emissions stageInterim Tier 4correct

Origin and approval

VersionC3UI45correct
Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2012correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Deutz TCD2011L03 have?

The Deutz TCD2011L03 delivers 45 kW.

When was the Deutz TCD2011L03 built?

Production years: 2012.
