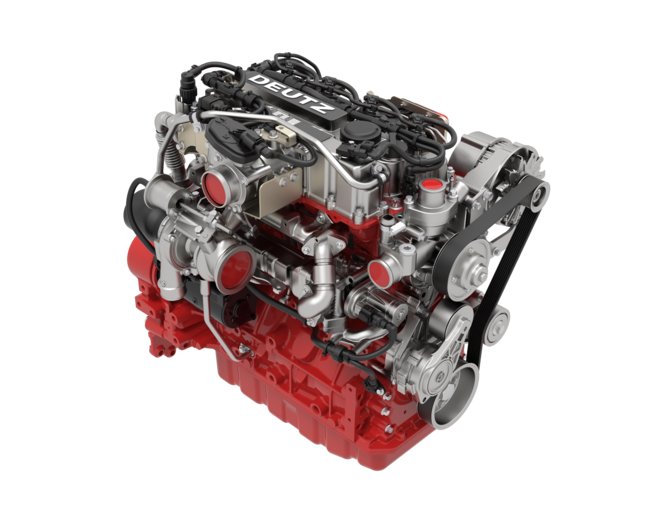

Deutz TCD2.9L4

Built: 2012-2026 · Series: Other models

More machines from model year 2012

Source: https://www.deutz.com/en/products/engine-finder/engine-detai

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Deutz TCD2.9L4 is a machine built by Deutz. Production: 2012-2026. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 55 kW. The engine is turbocharged. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Deutz range ranges from 18 to 520 kW; the TCD2.9L4 sits at the bottom of that range with 55 kW. Its immediate neighbours are the TD2011L04I below it with 54 kW and the TD2011L04 above it with 56 kW. 193 Deutz models across 27 series are on record. The model is listed under Non-road diesel engines. 27 verified figures from 1 source are on file.

Technical data

Engine

Engine codeC3CI55Ccorrect
Engine familyCDZXL02.9045correct
Engine familiesCDZXL02.9045correct
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output55 kWcorrect
Power band37<=kW<56correct
Rated speed2,300 rpmcorrect
Maximum torque260 N·mcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore92 mmcorrect
Stroke110 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageInterim Tier 4correct

Origin and approval

VersionC3CI55Ccorrect
Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Deutz TCD2.9L4 have?

The Deutz TCD2.9L4 delivers 55 kW.

When was the Deutz TCD2.9L4 built?

Production years: 2012-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
