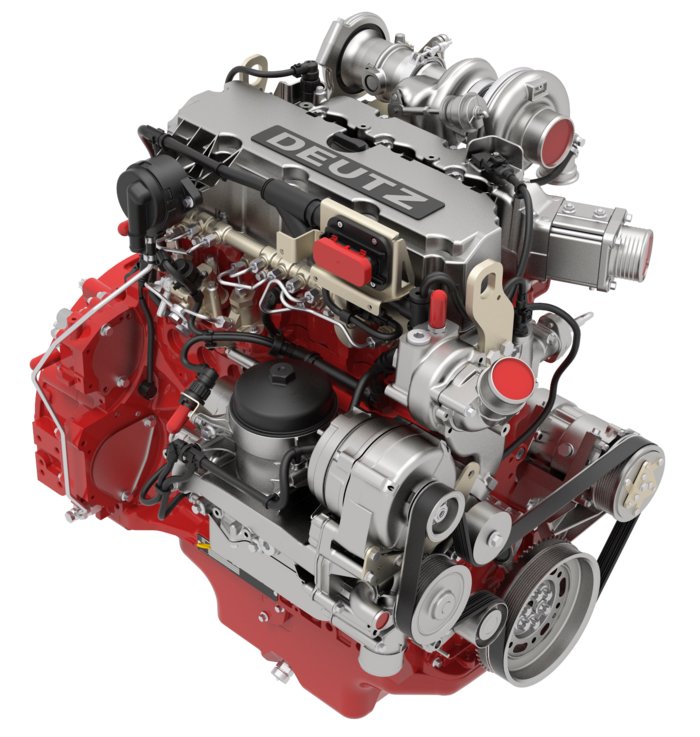

Deutz TAD765VE
Built: 2012-2013 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz – other nonroad diesel engines: the collective page of the D ranges outside the named models, air- and water-cooled, 18 to 520 kW from two- to eight-cylinders, Tier 3 to Tier 4 Final
DEUTZ AG, headquartered in Cologne and founded in 1864 as an engine works, is regarded as the world's oldest engine manufacturer and was a pioneer of the air-cooled diesel engine; the classic D914 range carries on this air-cooled design to this day. This page gathers the engines the register could not assign to a named range, from the two-cylinder D2.2L3 through the water-cooled D3.6DC and D4/D6/D8 ranges to the air-cooled D914 models; the leading D stands for Deutz, the following number gives an approximate displacement in litres, and the final digit marks the cylinder count.
Read on 3 more paragraphs
The register lists here 68 versions with 18 to 520 kW rated output at 1,500 to 2,700 rpm, from two- to eight-cylinders in inline (63) and V (5) configuration, with 90 to 132 mm bore and 90 to 145 mm stroke, all with direct injection. Fuel splits almost evenly between ultra-low-sulphur diesel (35) and the older low-sulphur diesel (33). Among the emission stages Interim Tier 4 leads with 37 ahead of Tier 4 (Final or Phase-in) with 17 and Tier 3 with 14 versions; the 130 to 560 kW power category is the largest with 20 versions, model years run from 2011 to 2026.
Deutz engines of this range drive construction machinery, forklifts, farm machinery and stationary generator sets; as one of the last large independent European engine makers, Deutz supplies numerous construction- and farm-machinery makers without their own engine production, competing with Kohler, Yanmar and Perkins.
On a used purchase, operating hours count, the condition of the turbocharger (waste-gate design on the majority, some of the smaller engines remain naturally aspirated), on the air-cooled D914 models the fan wheel and cooling fins in place of a coolant circuit, the injection pump or injectors, and on Tier 4 Final versions the exhaust aftertreatment; spare parts through the DEUTZ dealer network.
Sources: Kennwerte der Modelle Deutz (weitere Nonroad-Dieselmotoren), DEUTZ AG (Hersteller)
Technical data
Engine
| Engine code | C4SI235correct |
|---|---|
| Engine family | CDZXL07.1005correct |
| Engine families | CDZXL07.1005; DDZXL07.1005correct |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 235 kWcorrect |
| Power band | 130<=kW<=560correct |
| Rated speed | 2,200 rpmcorrect |
| Maximum torque | 1,330 N·mcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 6correct |
| Cylinder layout | in linecorrect |
| Bore | 108 mmcorrect |
| Stroke | 130 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | liquidcorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | C4SI235correct |
|---|---|
| Built from | 2012correct |
| Built to | 2013correct |
| Model year from | 2012correct |
| Model year to | 2013correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Deutz TAD765VE have?
The Deutz TAD765VE delivers 235 kW.
When was the Deutz TAD765VE built?
Production years: 2012-2013.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
