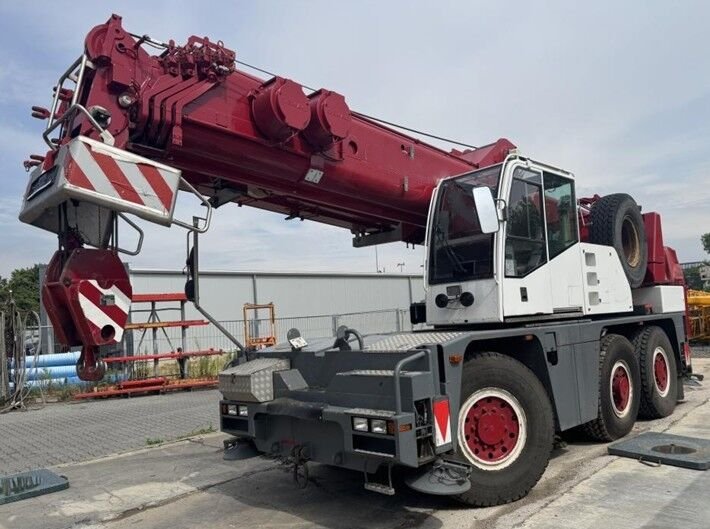

Demag AC 155L
Built: 1994 · Series: AC
More machines from model year 1994
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Demag AC – road-registered all-terrain cranes from the compact City class to large cranes: AC 40 to AC 700, six to eight cylinders, 205 to 480 kW, operating weights up to 95,750 kg
Demag, which grew out of Duisburger Maschinenbau AG, has built mobile cranes since the 1960s and now operates as part of the crane group Tadano; the AC series denotes all-terrain cranes with road registration that, unlike lattice-boom crawler cranes, drive to the site on their own axles. The type number after AC roughly gives the maximum lifting capacity in tonnes, from the AC 40 with about 40 tonnes to the AC 700 with about 700 tonnes; suffixes such as -1, -2 or -5 mark the series generation, CITY the especially compact city cranes.
Read on 3 more paragraphs
The register lists here 26 versions with 205 to 480 kW from six- and eight-cylinders of 6,374 to 15,928 cm³ displacement, operating weights from 32,650 to 95,750 kg, gross weights from 33,000 to 96,000 kg and widths from 2,500 to 3,000 mm.
All-terrain cranes such as the AC series combine the road speed of trucks with the off-road capability of crawler cranes, making them the most versatile construction cranes for changing job sites; alongside Liebherr and Grove, Demag ranks among the established makers of this class and covers the full span with the AC range, from compact city cranes to large cranes for heavy-lift and wind-turbine assembly.
On a used example, the operating hours of the carrier and the superstructure, the condition of the telescopic boom (wear on the slide pads, tightness of the hydraulic cylinders), the operation of the winches and boom extension, and inspection records and maintenance history count, since cranes are subject to regular expert inspections; parts and service run through the Tadano Demag network.
Sources: SpecCodex register, model data: Demag AC
Technical data
Engine
| Power | 213 kWcorrect |
|---|---|
| Displacement | 9,570 cm³correct |
Dimensions and weights
| Length | 11,200 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Unladen weight | 35,900 kgcorrect |
Where this model stands
Power-to-weight ratio: 5.9 kW/t (213 kW / 35.9 t)
Stronger than 46% of the mobile & rough terrain cranes in the register — out of 723 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Demag AC 155L have?
The Demag AC 155L delivers 213 kW.
How much does the Demag AC 155L weigh?
The unladen weight is 35,900 kg.
What engine does the Demag AC 155L have?
9,570 cm³ displacement.
What are the dimensions of the Demag AC 155L?
11,200 mm × 2,500 mm.
When was the Demag AC 155L built?
Production years: 1994.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
