David Brown 1294
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
David Brown – other models: from the VAK1 to the Selectamatic ranges from Meltham, 10.6 to 69.9 kW, two- to six-cylinder engines, diesel, TVO paraffin and petrol

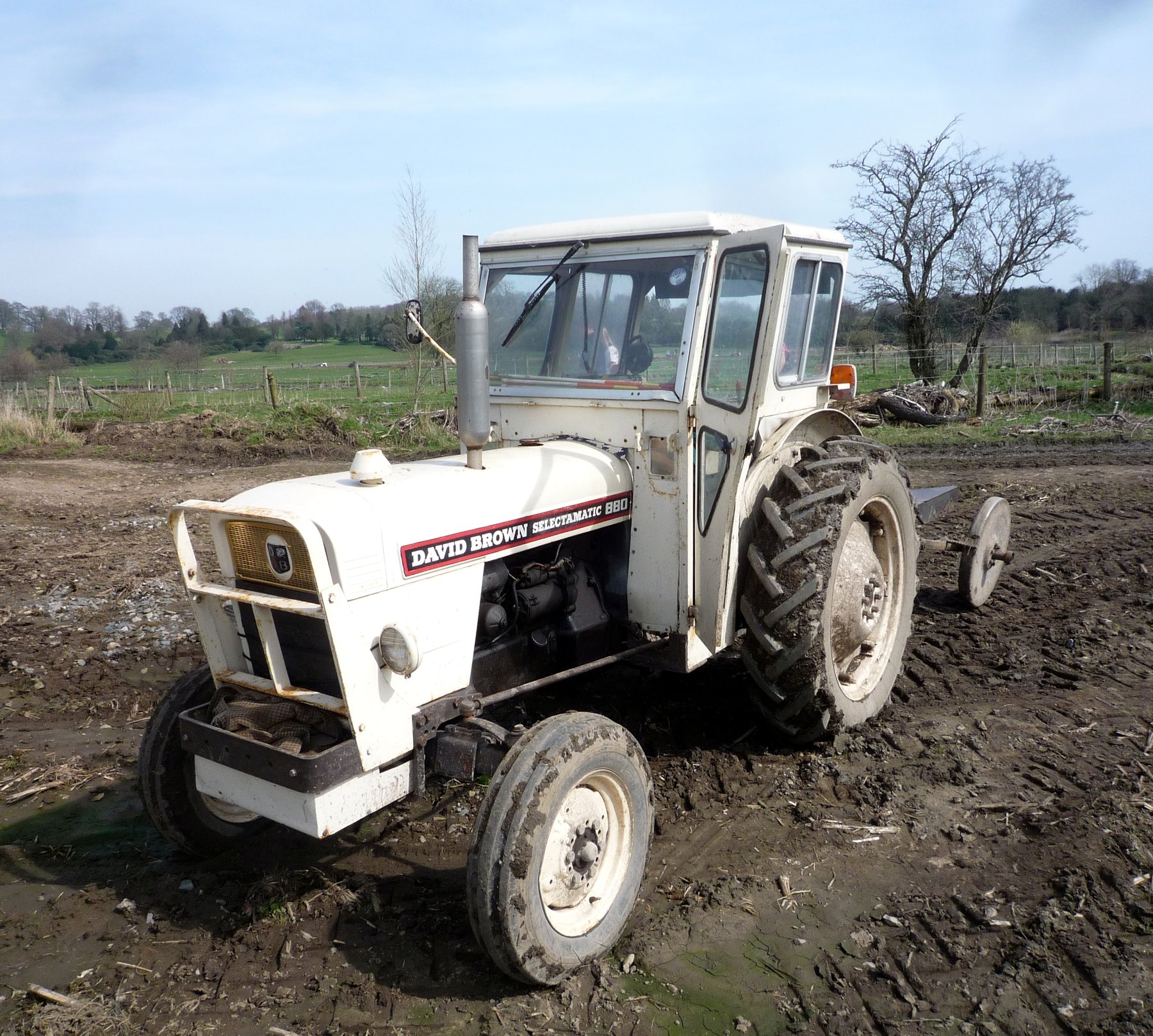

This collective page gathers David Brown tractors outside the named series. From 1936 the company built the Ferguson-Brown Type A jointly with Harry Ferguson, then went it alone from 1939 at Meltham near Huddersfield in England. In 1965 it introduced the Selectamatic range (880, 990, 995) with a new control concept for hydraulics and the power take-off. In 1972 the American group Tenneco took over the marque through Case, and by the 1980s David Brown had been fully absorbed into Case. Alongside diesel, many British models also offered paraffin carburettor engines on the TVO (Tractor Vaporising Oil) principle, or plain petrol.
Read on 3 more paragraphs
The register lists 82 versions from 10.6 to 69.9 kW with two- to six-cylinder engines of 1,262 to 5,392 cm³. Unladen weights range from 950 to 3,356 kg, lengths from 2,230 to 4,250 mm, widths from 1,110 to 2,350 mm, and torque from 156 to 329 Nm.
David Brown ranked among the major British tractor makers alongside Ferguson, Fordson and International Harvester, supplying mainly the domestic and Commonwealth markets. The Selectamatic technology of the 1960s was regarded as advanced and influenced later Case ranges.
When buying older paraffin and TVO models, check the carburettor and pre-heating system; on Selectamatic models, check the hydraulic spool valves and PTO clutch. Rust on wings and gearbox housings is common on post-war British tractors, and spares today come mainly through specialists in classic British farm machinery and the Case IH network.
Sources: Kennwerte der Modelle David Brown (weitere Modelle)
Technical data
Engine
| Power | 62 hp (45.6 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 233 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,598 cm³correct |
Dimensions and weights
| Length | 3,429 mmcorrect |
|---|---|
| Width | 1,778 mmcorrect |
| Height | 2,515 mmcorrect |
Drivetrain and chassis
| Gearbox | 12 V/4 Rcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 100 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the David Brown 1294 have?
The David Brown 1294 delivers 62 hp.
What engine does the David Brown 1294 have?
4 cylinders, 3,598 cm³ displacement.
How fast does the David Brown 1294 go?
Top speed is 30 km/h.
What are the dimensions of the David Brown 1294?
3,429 mm × 1,778 mm × 2,515 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
