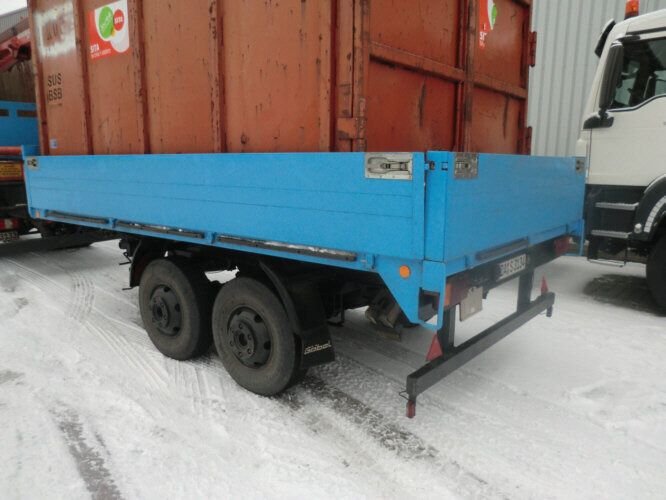

DAF NVW 8 -16
Built: 1972-1972 · Series: NVW
More machines from model year 1972
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
DAF NVW – trailers from the early Aanhangwagen Fabriek era: type numbers from 6-12 to 10-20 denoting gross weight in tonnes, 12 to 20 t
DAF began in 1928 in Eindhoven as Van Doorne's Aanhangwagen Fabriek – a trailer manufacturer, before the company later became the well-known lorry maker. The NVW series comes from that early trailer production: the type designation from NVW 6-12 to NVW 10-20 follows a clear pattern in which the second number states the gross weight in tonnes – NVW 10-20 thus stands for 20 t, NVW 6-12 for 12 t. The NL suffix on several models marks the axle count, VL a further build variant.
Read on 3 more paragraphs
The register lists 12 versions here with unladen weights from 3,800 to 9,310 kg and gross weights from 12,000 to 20,000 kg. Lengths range from 8,830 to 10,400 mm, widths from 2,420 to 2,600 mm.
As evidence of DAF's early history, the NVW trailers mark the transition from pure trailer builder to commercial-vehicle manufacturer; the 12 to 20 tonne weight class places them in the classic lorry-trailer traffic of the post-war decades, running behind medium and heavy tractor units.
When buying one of these older chassis, check above all the frame and main beams for corrosion and cracks, the condition of the axle assemblies and suspension, the brake system with its linkage, and the towing eye and drawbar. On surviving examples, a proper restoration of the braking system to current regulations is essential; spare parts for this era are generally only available through specialist historic commercial-vehicle workshops.
Sources: Kennwerte der Modelle DAF NVW, DAF Trucks N.V. (Hersteller)
Technical data
Dimensions and weights
| Length | 9,060 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 5,120 mmcorrect |
| Unladen weight | 5,560 kgcorrect |
| Gross vehicle weight | 16,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the DAF NVW 8 -16 weigh?
The unladen weight is 5,560 kg.
What is the gross vehicle weight of the DAF NVW 8 -16?
16,000 kg.
Up to what speed is the DAF NVW 8 -16 approved?
Approved up to 100 km/h.
What are the dimensions of the DAF NVW 8 -16?
9,060 mm × 2,500 mm.
When was the DAF NVW 8 -16 built?
Production years: 1972.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
