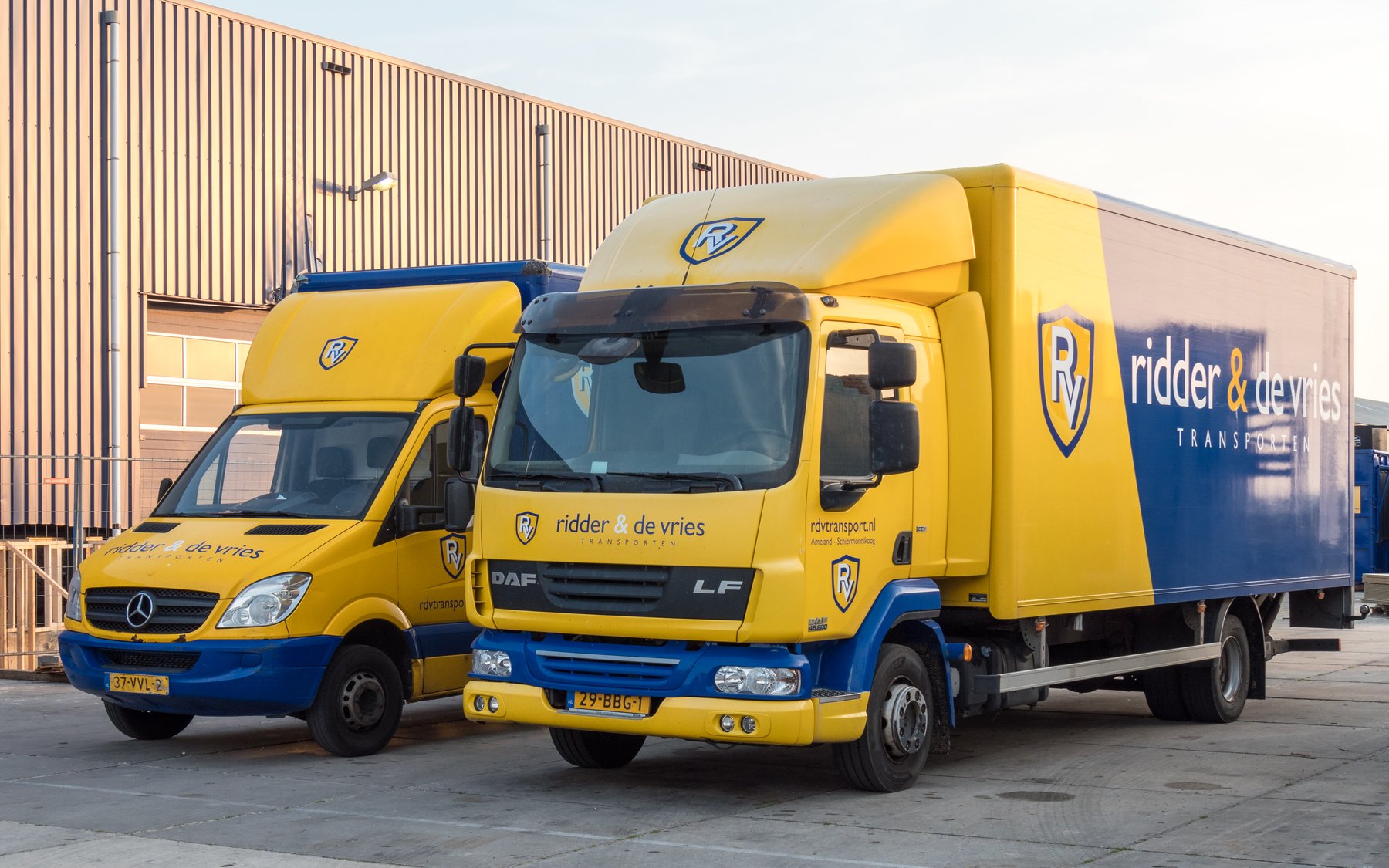

DAF LF 45.220

Built: 2005-2011 · Series: LF

More machines from model year 2005

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The LF series from DAF includes the LF 45.220. Production: 2005-2011. The engine delivers 162.5 kW, has 6 cylinders, with a displacement of 6,693 cm³. The machine is 9,100 mm long and 2,520 mm wide. The unladen weight is 5,165 kg. The wheelbase measures 5,000 mm. Top speed is 90 km/h. The gross vehicle weight is 12,000 kg. The machine runs on 6 wheels. The gearbox offers 6 gears. The LF series covers 64 models. Rated output within it ranges from 133 to 239 kW; the LF 45.220 sits in the lower part of that range with 162.5 kW. Its immediate neighbours are the LF 220 FA below it with 162 kW and the LF 230 above it with 172 kW. Unladen weight within it ranges from 5,165 to 14,958 kg; here the LF 45.220 sits at the bottom of that range with 5,165 kg. 3352 DAF models across 109 series are on record.

DAF LF — the distribution truck with British roots: from the Leyland Roadrunner through the 45/55 range to the standalone LF chassis for distribution work

The LF is DAF's distribution range, and its ancestry is unusual: it descends from the Leyland Roadrunner. From that came the DAF 45/55 range, revised and extended in 1994 after Leyland DAF's bankruptcy in 1993 and the takeover by Paccar. It ran until 2001, when the newly developed LF, engineered in the United Kingdom, replaced it.

Read on 4 more paragraphs

The change brought a change of engines. The 45 and 55 ranges used Cummins units of 5.88 litres producing up to 235 hp. The successor LF received Paccar engines of the PX family, more compactly built and quieter in operation thanks to the integration of several components into block and cylinder head.

The LF range was expressly developed for distribution work and is graded accordingly: a wide choice of wheelbases, load ratings and engine versions. That is exactly what makes used comparison demanding — two vehicles of the same designation can differ markedly in wheelbase and body.

Anyone examining an older vehicle should therefore first establish whether it is still a 45/55 or already an LF. The transition around 2001 separates not just two names but two engine families — and with them two different worlds of spare parts.

With gross vehicle weights from 3,500 to 29,500 kg, the LF range spans from the boundary of EU class N1 well into class N3 (over 12 t); depending on version, this requires a category C1, C or CE driving licence, together with a tachograph, driving and rest times and, in most countries, a distance-based toll. From Euro 5 onward the emissions stage required SCR catalysis with AdBlue, whereas the earlier Cummins engines of the preceding 45/55 range handled this solely through exhaust-gas recirculation.

Sources: Kennwerte der Modelle DAF LF

Technical data

Engine

Power162.5 kWcorrect
Cylinders6correct
Displacement6,693 cm³correct

Dimensions and weights

Length9,100 mmcorrect
Width2,520 mmcorrect
Wheelbase5,000 mmcorrect
Unladen weight5,165 kgcorrect
Gross vehicle weight12,000 kgcorrect

Drivetrain and chassis

Gears6correct
Wheels6correct
Top speed90 km/hcorrect

Where this model stands

Power-to-weight ratio: 31.5 kW/t (162 kW / 5.2 t)

Stronger than 22% of the trucks in the register — out of 25,242 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the DAF LF 45.220 have?

The DAF LF 45.220 delivers 162 kW.

How much does the DAF LF 45.220 weigh?

The unladen weight is 5,165 kg.

What is the gross vehicle weight of the DAF LF 45.220?

12,000 kg.

What engine does the DAF LF 45.220 have?

6 cylinders, 6,693 cm³ displacement.

How fast does the DAF LF 45.220 go?

Top speed is 90 km/h.

What are the dimensions of the DAF LF 45.220?

9,100 mm × 2,520 mm.

When was the DAF LF 45.220 built?

Production years: 2005-2011.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
