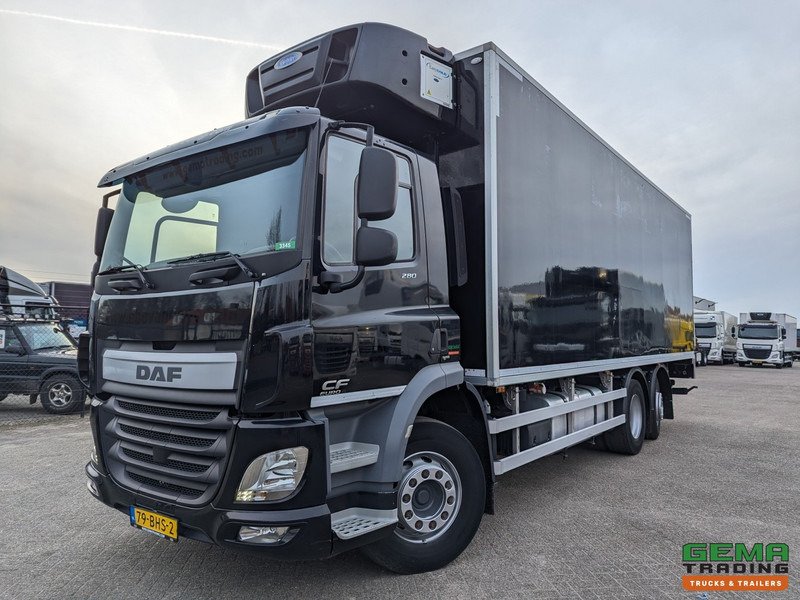

DAF CF 280 FAN
Built: 2016-2016 · Series: CF
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
DAF CF – medium-to-heavy series since 1998 between the LF and XF: three-digit horsepower number plus body codes FA/FT/FAN, in-line six-cylinder engines 6.7 to 12.9 litres, 162 to 390 kW
The CF replaced the older DAF 65/75/85 series in 1998 as the medium-to-heavy range between the lighter LF and the long-haul flagship XF; larger facelifts followed in 2013 and 2017. The type designation consists of the CF series and a three-digit number for engine output in horsepower (220 to 530 in the register), followed by codes for the body type – FA and FT denote tractor-unit or chassis variants, and FAN, FAR, FAS and FAG equipment or cab variants under DAF's factory nomenclature.
Read on 3 more paragraphs
The register lists 248 versions with 162 to 390 kW output, displacements of 6,693 to 12,907 cm³ across a consistent 6 cylinders (DAF's own PACCAR MX in-line engines), unladen weights of 6,851 to 36,560 kg, gross weights of 11,990 to 50,000 kg and lengths of 5,800 to 12,090 mm at 2,500 to 2,600 mm width.
Within DAF's range the CF covers everything from distribution work to long-haul and construction transport, competing with the Mercedes-Benz Actros/Antos, Scania P/G, Volvo FM and MAN TGM/TGS; DAF, part of PACCAR since 1996, has consistently used its own engines in the CF, Cummins-derived early on and later PACCAR units.
On used examples, check rust on the frame and air-suspension bellows, condition of the clutch and automated AS-Tronic gearbox, sealing of the cab mounting, the brake system including the retarder, and a documented service history through the DAF workshop network.
Sources: Kennwerte der Modelle DAF CF, DAF Trucks (Hersteller)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 6,700 cm³correct |
Dimensions and weights
| Length | 10,100 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Wheelbase | 6,200 mmcorrect |
| Unladen weight | 11,925 kgcorrect |
| Gross vehicle weight | 26,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|
Frequently asked questions
How much does the DAF CF 280 FAN weigh?
The unladen weight is 11,925 kg.
What is the gross vehicle weight of the DAF CF 280 FAN?
26,000 kg.
What engine does the DAF CF 280 FAN have?
6 cylinders, 6,700 cm³ displacement.
What are the dimensions of the DAF CF 280 FAN?
10,100 mm × 2,600 mm.
When was the DAF CF 280 FAN built?
Production years: 2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
