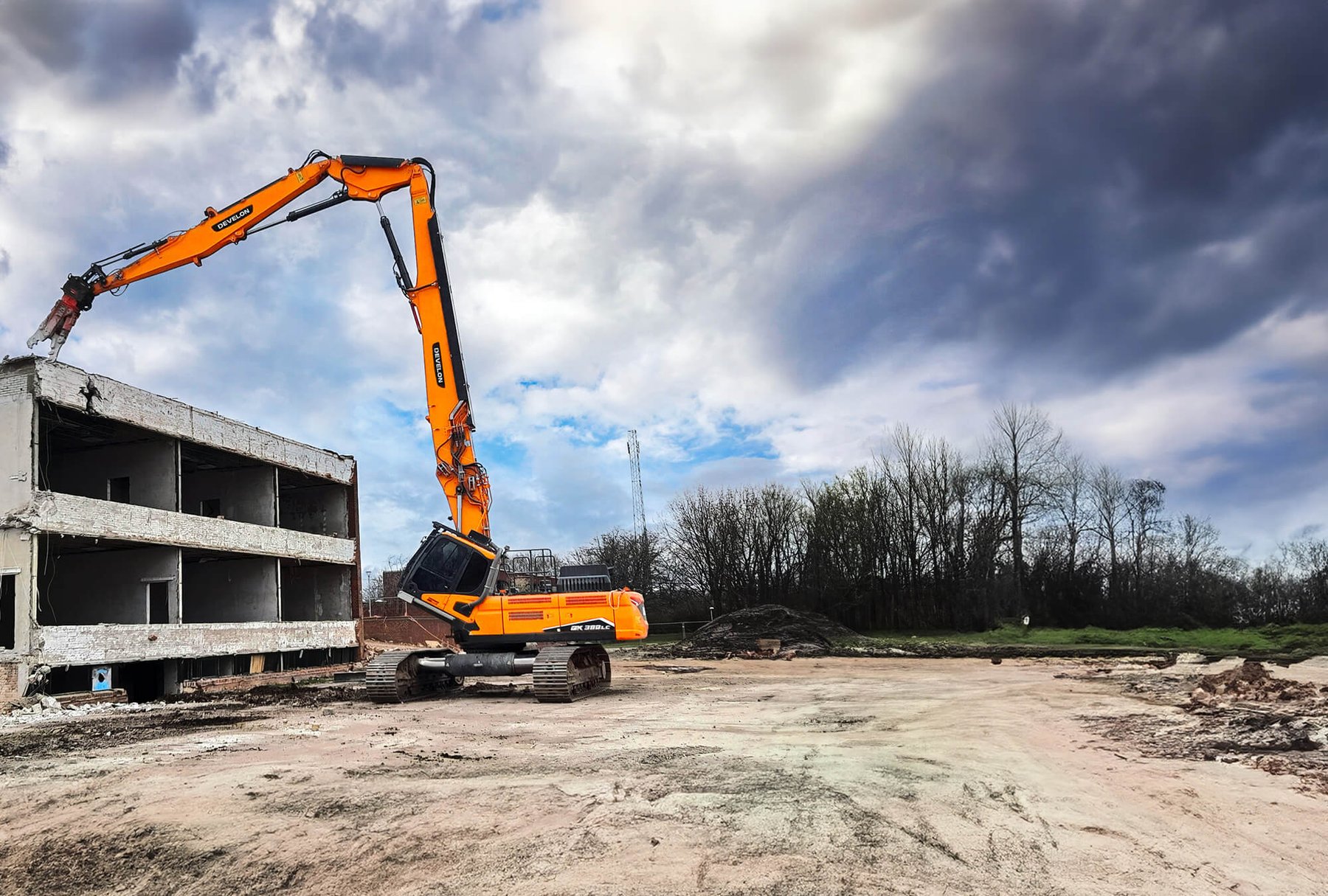

Daewoo DD80L Crawler

Series: Pozostałe modele

Source: https://www.intrac.lt/demolition-excavators/en

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DD80L from Daewoo is part of the Daewoo Crawler Tractor series. The engine delivers 66.4 kW, has 6 cylinders, with a displacement of 5,784.6 cm³. Torque is 324 Nm. Rated speed is 1,800 rpm. The unladen weight is 8,400 kg. Ground clearance is 417.6 mm. The tank holds 265.4 litres. Maximum torque is reached at 1,600 rpm. Working pressure is 191 bar. The cooling system holds 14.4 litres. The oil fill is 12.1 litres. The engine fitted is the DB58. Rated output across the Daewoo range ranges from 7 to 337.8 kW; the DD80L sits in the lower part of that range with 66.4 kW. Its immediate neighbours are the DSL902 below it with 47.7 kW and the MEGA160 above it with 77 kW. 34 Daewoo models across 12 series are on record. The model is listed under Mining equipment. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine model	DB58correct
Power	66.4 kWcorrect
Rated speed	1,800 rpmcorrect
Torque	324correct
Speed at max. torque	1,600 rpmcorrect
Cylinders	6correct
Displacement	5,784.6 cm³correct
Coolant capacity	14.4 lcorrect
Engine oil capacity	12.1 lcorrect

Dimensions and weights

Ground clearance	417.6correct
Unladen weight	8,400 kgcorrect

Drivetrain and chassis

Gearbox type	hydrostatic transmissioncorrect

Working data

Hydraulic pressure	191correct
Fuel tank capacity	265.4 lcorrect

Other data

Height	2,731correct

Where this model stands

Power-to-weight ratio: 7.9 kW/t (66 kW / 8.4 t)

Stronger than 25% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Daewoo DD80L have?

The Daewoo DD80L delivers 66.4 kW.

How much does the Daewoo DD80L weigh?

The unladen weight is 8,400 kg.

What engine does the Daewoo DD80L have?

6 cylinders, 5,785 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
