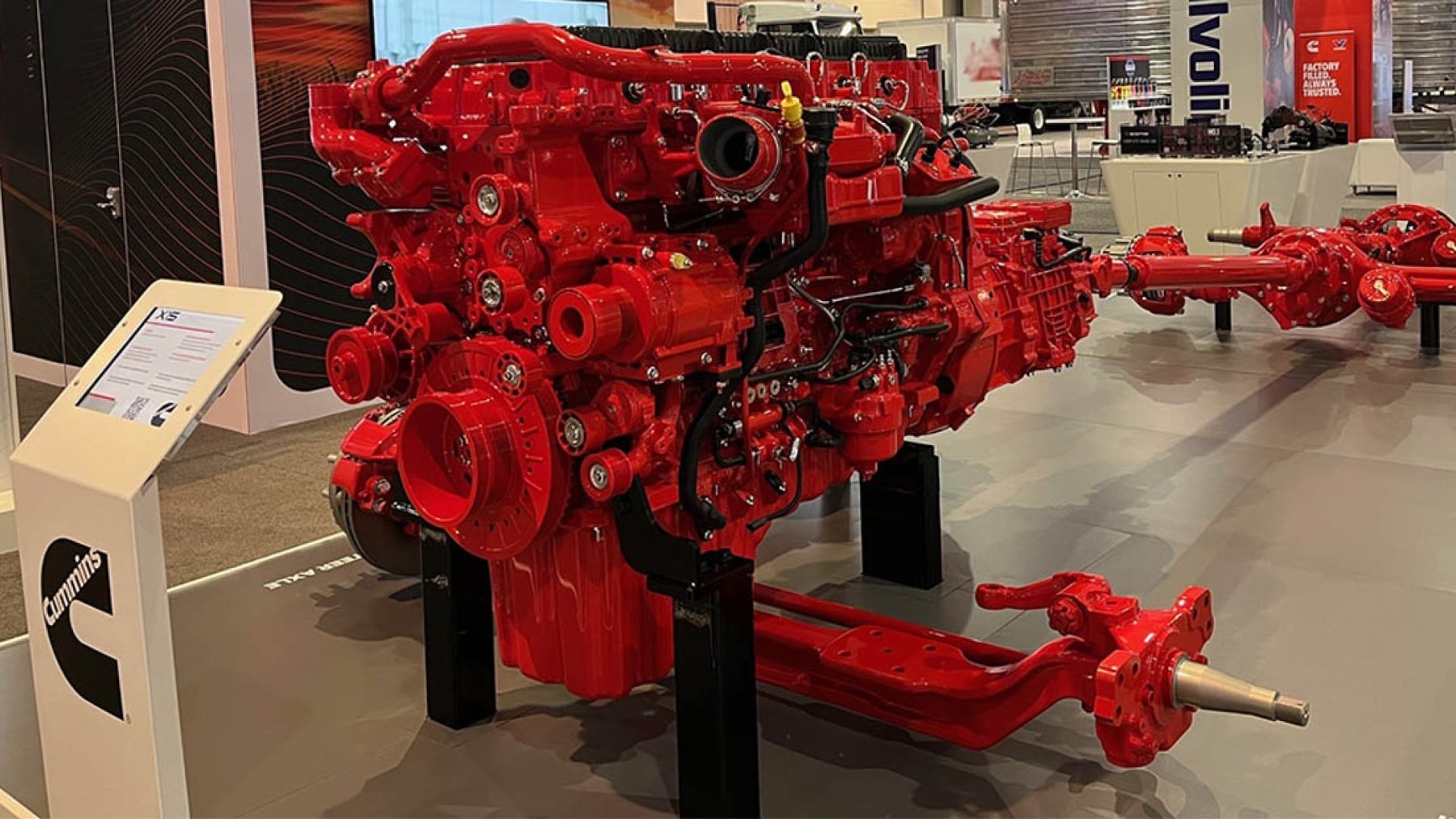

Cummins X15 565EV
Built: 2020-2026 · Series: X15
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The X15 565EV comes from Cummins. Production: 2020-2026. The fuel is 7-15 ppm ultra low sulfur diesel. The rated output is 565 hp. The engine is turbocharged. It is a diesel engine. Rated output across the Cummins range ranges from 46 to 3,245 kW; the X15 565EV sits in the lower part of that range with 565 kW. Its immediate neighbours are the X15 555V below it with 563 kW and the QSK23-C above it with 567 kW. 517 Cummins models across 3 series are on record. The model is listed under Heavy-duty on-road engines. 21 verified figures from 1 source are on file.
Technical data
Engine
| Engine code | XHE1correct |
|---|---|
| Engine family | TCEXH0912XEEcorrect |
| Engine families | LCEXH0912XAXcorrect |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 565 hpcorrect |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 1,850 ft·lbfcorrect |
| Speed at max. torque | 1,000 rpmcorrect |
| Displacement | 14.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | XHE1correct |
|---|---|
| Built from | 2020correct |
| Built to | 2020correct |
| Model year from | 2020correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Anwendungsbereich | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Cummins X15 565EV have?
The Cummins X15 565EV delivers 565 kW.
When was the Cummins X15 565EV built?
Production years: 2020-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
X15 400
X15 400EX
X15 400SA
X15 400ST
X15 430ST
X15 430V
X15 450
X15 450EX
X15 450SA
X15 450ST
X15 450V
X15 470V
Sources: [1]
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Teile zu diesem Motor (121)
Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 4384561 | Aftertreatment Temperature Sensor | Cummins |
| 4384562 | Aftertreatment Temperature Sensor | Cummins |
| 4384563 | Aftertreatment Temperature Sensor | Cummins |
| 4384564 | Aftertreatment Temperature Sensor | Cummins |
| 4384565 | Aftertreatment Temperature Sensor | Cummins |
| 4384566 | Aftertreatment Temperature Sensor | Cummins |
| 4384567 | Aftertreatment Temperature Sensor | Cummins |
| 4384568 | Aftertreatment Temperature Sensor | Cummins |
| 4384569 | Aftertreatment Temperature Sensor | Cummins |
| 4384570 | Aftertreatment Temperature Sensor | Cummins |
| 4384571 | Aftertreatment Temperature Sensor | Cummins |
| 4384572 | Aftertreatment Temperature Sensor | Cummins |
| 4384573 | Aftertreatment Temperature Sensor | Cummins |
| 4384574 | Aftertreatment Temperature Sensor | Cummins |
| 4384575 | Aftertreatment Temperature Sensor | Cummins |
| 4384576 | Aftertreatment Temperature Sensor | Cummins |
| 4384577 | Aftertreatment Temperature Sensor | Cummins |
| 4384578 | Aftertreatment Temperature Sensor | Cummins |
| 4384579 | Aftertreatment Temperature Sensor | Cummins |
| 4384580 | Aftertreatment Temperature Sensor | Cummins |
| 5594132 | Aftertreatment Temperature Sensor | Cummins |
| 5594679 | Aftertreatment Temperature Sensor | Cummins |
| 5654165 | Aftertreatment Temperature Sensor | Cummins |
| 5654166 | Aftertreatment Temperature Sensor | Cummins |
| 5654167 | Aftertreatment Temperature Sensor | Cummins |
| 5654168 | Aftertreatment Temperature Sensor | Cummins |
| 5654169 | Aftertreatment Temperature Sensor | Cummins |
| 5654170 | Aftertreatment Temperature Sensor | Cummins |
| 5654171 | Aftertreatment Temperature Sensor | Cummins |
| 5654172 | Aftertreatment Temperature Sensor | Cummins |
| 5654173 | Aftertreatment Temperature Sensor | Cummins |
| 5654174 | Aftertreatment Temperature Sensor | Cummins |
| 5654175 | Aftertreatment Temperature Sensor | Cummins |
| 5654176 | Aftertreatment Temperature Sensor | Cummins |
| 5654177 | Aftertreatment Temperature Sensor | Cummins |
| 5654178 | Aftertreatment Temperature Sensor | Cummins |
| 5654179 | Aftertreatment Temperature Sensor | Cummins |
| 5654180 | Aftertreatment Temperature Sensor | Cummins |
| 5654181 | Aftertreatment Temperature Sensor | Cummins |
| 5654182 | Aftertreatment Temperature Sensor | Cummins |
| 5654183 | Aftertreatment Temperature Sensor | Cummins |
| 5698545 | Aftertreatment Temperature Sensor | Cummins |
| 5698546 | Aftertreatment Temperature Sensor | Cummins |
| 5698548 | Aftertreatment Temperature Sensor | Cummins |
| 5698551 | Aftertreatment Temperature Sensor | Cummins |
| 5698557 | Aftertreatment Temperature Sensor | Cummins |
| 5698559 | Aftertreatment Temperature Sensor | Cummins |
| 4354149 | Ammonia Slip Catalyst | Cummins |
| 5512583 | Ammonia Slip Catalyst | Cummins |
| 5698453 | Barometric Pressure Sensor | Cummins |
| 2897331 | Barometric Pressure Sensor 2;Barometric Pressure Sensor | Cummins |
| 4307110 | Compressor Inlet Temperature | Cummins |
| 2897334 | Compressor Outlet Pressure Sensor;Comp out pressure sensor | Cummins |
| 5698456 | Compressor Outlet Pressure Sensor;BarometricPressureSensor;Comp out pressure sensor | Cummins |
| 4954905 | Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor | Cummins |
| 5511172 | DEF Doser | Cummins |
| 4354144 | Diesel Oxidation Catalyst | Cummins |
| 5512586 | Diesel Oxidation Catalyst | Cummins |
| 4354146 | Diesel Particulate Filter | Cummins |
| 5512162 | Diesel Particulate Filter | Cummins |
| 2871960 | Diesel Particulate Filter Pressure | Cummins |
| 5492073 | Diesel Particulate Filter Pressure | Cummins |
| 5509448 | Doser Pump | Cummins |
| 3693370 | EGR Cooler | Cummins |
| 5486674 | EGR Cooler | Cummins |
| 5679607 | EGR Cooler | Cummins |
| 4928594 | Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor | Cummins |
| 5461596 | EGR Out Temperature Sensor | Cummins |
| 4336675 | EGR Valve | Cummins |
| 5411635 | EGR Valve | Cummins |
| 2872277 | Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 5594276 | Engine Crankshaft;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft;Engine Crankshaft;Engine Camshaft Position Sensor;Engine Camshaft | Cummins |
| 4384412 | Engine Control Module | Cummins |
| 5572391 | Engine Control Module | Cummins |
| 6316221 | Engine Control Module | Cummins |
| 6316224 | Engine Control Module | Cummins |
| 6393601 | Engine Control Module | Cummins |
| 6449953 | Engine Control Module | Cummins |
| 2872279 | Crankshaft Position Sensor;Camshaft Position Sensor;Crankshaft Position Sensor;Crankshaft Position Sensor;Camshaft Position Sensor;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft Position Sensor;Engine Crankshaft | Cummins |
| 5594275 | Engine Crankshaft;Camshaft Position Sensor;Engine Camshaft;Engine Crankshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft;Engine Crankshaft Position Sensor;Engine Crankshaft;Engine Camshaft | Cummins |
| 3687930 | Engine Out NOx Sensor | Cummins |
| 5679700 | Engine Out NOx Sensor | Cummins |
| 6304160 | Engine Out NOx Sensor | Cummins |
| 4358939 | Exhaust Gas Recirculation Pressure | Cummins |
| 6419885 | Exhaust Gas Recirculation Pressure | Cummins |
| 3683870 | Exhaust Manifold Pressure | Cummins |
| 3685999 | Exhaust Manifold Pressure | Cummins |
| 3692604 | Exhaust Manifold Pressure | Cummins |
| 5491909 | Exhaust Pressure Sensor;EMP Sensor;Exhaust Manifold sensor | Cummins |
| 4384387 | Fuel Injection Pump | Cummins |
| 5572108 | Fuel Injection Pump | Cummins |
| 5594313 | Fuel Injection Pump | Cummins |
| 5594625 | Fuel Injection Pump | Cummins |
| 5594630 | Fuel Injection Pump | Cummins |
| 4327147 | Fuel Injector | Cummins |
| 2897581 | Fuel Pressure | Cummins |
| 4326869 | Tailpipe NOx Sensor | Cummins |
| 4326871 | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326872¿ | NOx Sensor Selective Catalytic Reduction | Cummins |
| 4326874 | Tailpipe NOx Sensor | Cummins |
| 4384740 | NOx Sensor Selective Catalytic Reduction | Cummins |
| 5593955 | NOx Sensor Selective Catalytic Reduction | Cummins |
| 5461550 | PM Sensor | Cummins |
| 5461551 | PM Sensor | Cummins |
| 5461552 | PM Sensor | Cummins |
| 5461553 | PM Sensor | Cummins |
| 5461554 | PM Sensor | Cummins |
| 5461555 | PM Sensor | Cummins |
| 5461556 | PM Sensor | Cummins |
| 5461557 | PM Sensor | Cummins |
| 5358483 | Turbocharger | Cummins |
| 5358484 | Turbocharger | Cummins |
| 5550895 | Turbocharger | Cummins |
| 6317897 | Turbocharger | Cummins |
| 6454199 | Turbocharger | Cummins |
| 6463612 | Turbocharger | Cummins |
| 6467772 | Turbocharger | Cummins |
| 5353726 | Turbocharger Speed Sensor | Cummins |
| 5491609 | Turbocharger Speed Sensor | Cummins |
| 5654213 | Turbocharger Speed Sensor | Cummins |
| 5677775 | Turbocharger Speed Sensor | Cummins |
Quelle: EPA HD Engines 2015–Present
