Crompton Greaves T2.2D4NDEX

Series: Other models

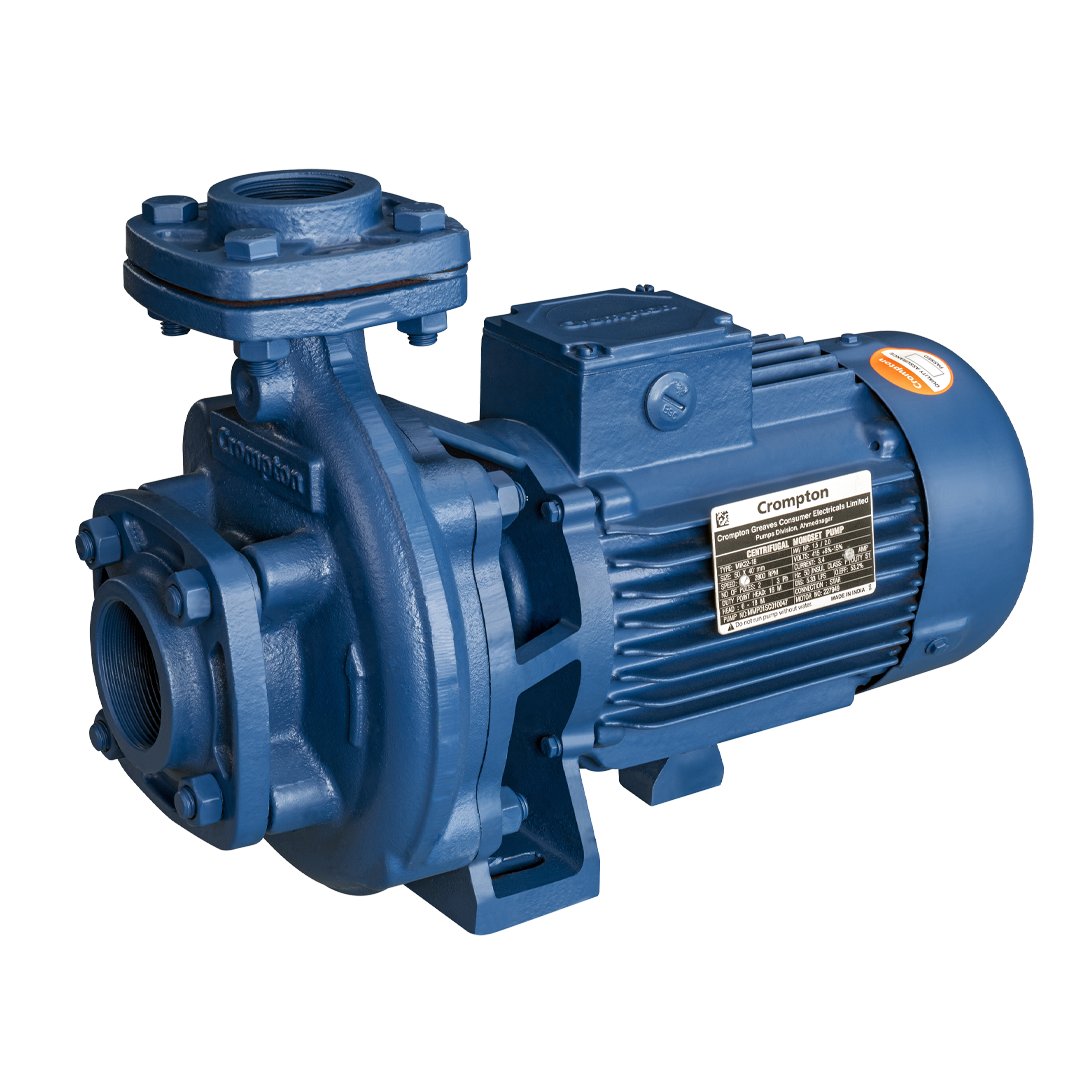

The photo shows the 2.20KG2_MEPS from the same series. Source: https://www.crompton.co.in/products/mik22-18 crompton.co.in

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Crompton Greaves T2.2D4NDEX is a three-phase induction motor built by Crompton Greaves. The rated output is 2.2 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 100 L in foot-mounted form. The protection class is IP55. The efficiency is 86.4 per cent at full load, 86.4 per cent at 75 per cent load and 84.4 per cent at half load. The mounting arrangement to IEC 60034-7 is B3. The motor is built in India. The figures come from the Australian MEPS register under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the Crompton Greaves range ranges from 0.75 to 180 kW; the T2.2D4NDEX sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the T1.5D4NDEX below it with 1.5 kW and the 3.00KG2_MEPS above it with 3 kW. 124 Crompton Greaves models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output2.2 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection classIP55, IP55correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3correct
Efficiency at full load86.4 %correct
Efficiency at 75 % load86.4 %correct
Efficiency at half load84.4 %correct

Origin and approval

Country of manufactureIndiacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Crompton Greaves T2.2D4NDEX have?

The Crompton Greaves T2.2D4NDEX delivers 2.2 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
