CMG PPC280M-2

Series: Other models

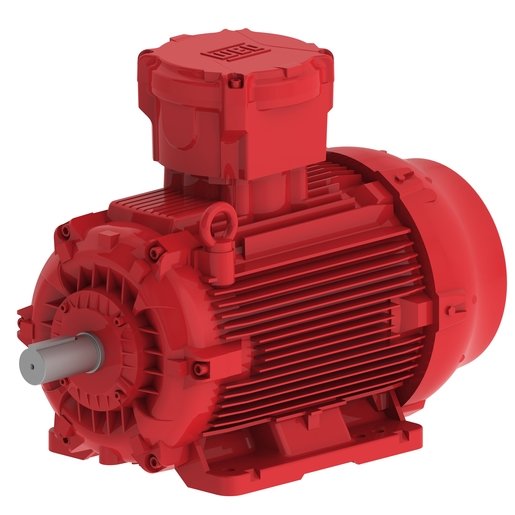

The photo shows the XPA200LA-2 from the same series. Source: https://storage.googleapis.com/dcddrylhpctfxe/electric-motor

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The CMG PPC280M-2 is a three-phase induction motor from the CMG range. The rated output is 90 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 280 M in foot-mounted form. The protection class is IP66. The efficiency is 95.3 per cent at full load, 95.2 per cent at 75 per cent load and 94.5 per cent at half load. At full load it delivers 292.3 Nm. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to AS 1359.102.1:1997. Rated output across the CMG range ranges from 0.75 to 160 kW; the PPC280M-2 sits in the middle of that range with 90 kW. Its immediate neighbours are the XPA280M-6 below it with 75 kW and the HGA315LA above it with 110 kW. 815 CMG models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output90 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP66correct
Frame size280 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B35, V1, V3, V5, V6correct
Efficiency at full load95.3 %correct
Efficiency at 75 % load95.2 %correct
Efficiency at half load94.5 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the CMG PPC280M-2 have?

The CMG PPC280M-2 delivers 90 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
