Clear YC315M-4

Series: Other models

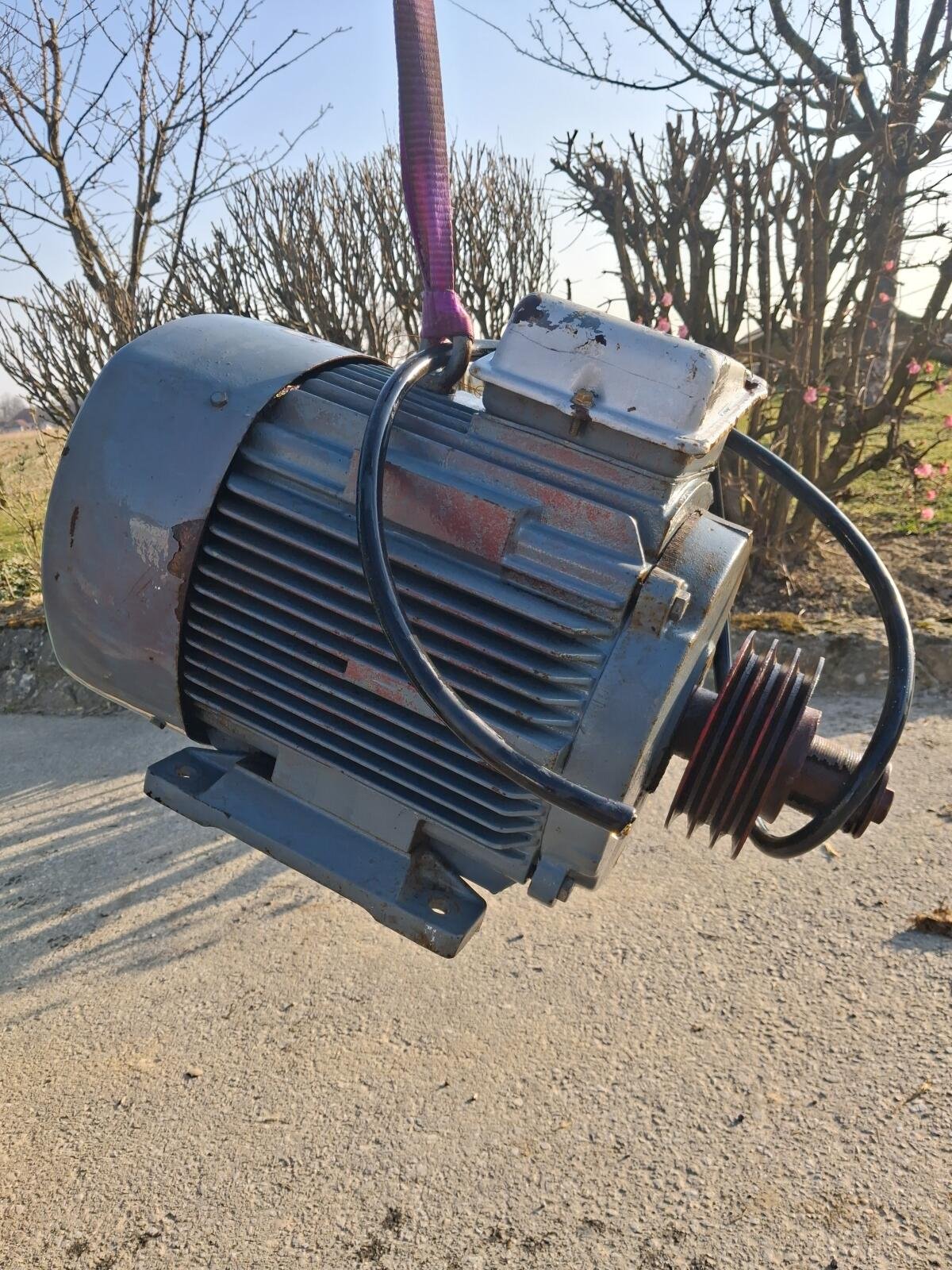

The photo shows the YC315La-2 from the same series. Source: https://www.landwirt.com/kleinanzeigen/detail/elektromotor-2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Clear YC315M-4 is a three-phase induction motor built by Clear. The rated output is 132 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 315. The protection class is IP55. The efficiency is 94.9 per cent at full load, 95.1 per cent at 75 per cent load and 94 per cent at half load. The motor weighs 1,060 kg. Mounting arrangements to IEC 60034-7: B3, B5, B35 and B14. The motor is built in China. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to IEEE 112-B(USA). Rated output across the Clear range ranges from 0.75 to 160 kW; the YC315M-4 sits in the upper part of that range with 132 kW. Its immediate neighbours are the YC315S-4 below it with 110 kW and the YC315La-2 above it with 160 kW. 110 Clear models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output132 kWcorrect

Dimensions and weights

Weight1,060 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size315correct
Mounting (IEC 60034-7)B3, B5, B35, B14correct
Efficiency at full load94.9 %correct
Efficiency at 75 % load95.1 %correct
Efficiency at half load94 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the Clear YC315M-4 have?

The Clear YC315M-4 delivers 132 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
