Clear YC132M-4

Series: Other models

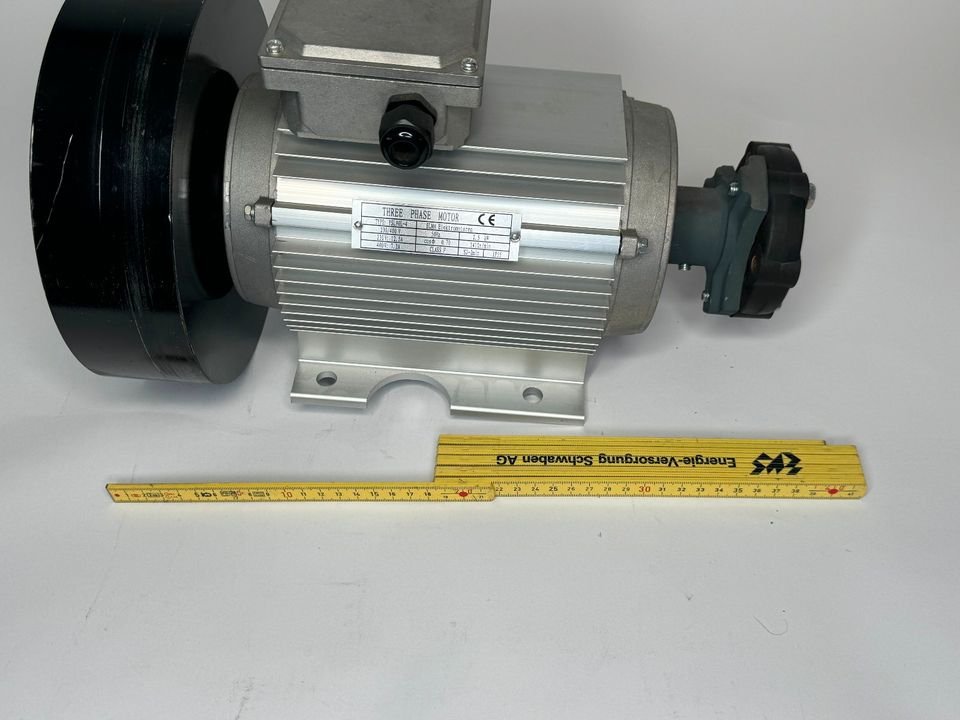

The photo shows the YSS90L-4 from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/drehstrommotor-2-5kw-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Clear YC132M-4 is a three-phase induction motor from the Clear range. The rated output is 7.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 132. The protection class is IP55. The efficiency is 88.9 per cent at full load, 89.3 per cent at 75 per cent load and 88.7 per cent at half load. The motor weighs 87.5 kg. Mounting arrangements to IEC 60034-7: B3, B5, B35 and B14. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEEE 112-B(USA). Rated output across the Clear range ranges from 0.75 to 160 kW; the YC132M-4 sits at the bottom of that range with 7.5 kW. Its immediate neighbours are the YSS132Sa-2 below it with 5.5 kW and the YC160L-6 above it with 11 kW. 110 Clear models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output7.5 kWcorrect

Dimensions and weights

Weight87.5 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size132correct
Mounting (IEC 60034-7)B3, B5, B35, B14correct
Efficiency at full load88.9 %correct
Efficiency at 75 % load89.3 %correct
Efficiency at half load88.7 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the Clear YC132M-4 have?

The Clear YC132M-4 delivers 7.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
