Start › Electric motors › CEM › D200L2-2

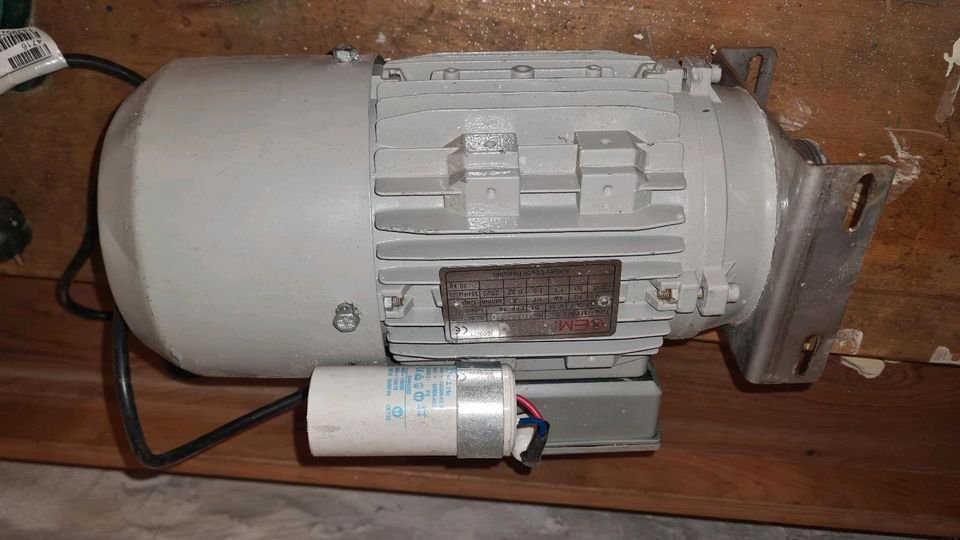

CEM D200L2-2

Series: Other models

Source: https://www.kleinanzeigen.de/s-anzeige/cem-elektromotor-1-1-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The CEM D200L2-2 is a three-phase induction motor. The rated output is 37 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 220L. The protection class is IP55. The efficiency is 92 per cent at full load, 92.4 per cent at 75 per cent load and 91.1 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in China. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEEE 112-B(USA). Rated output across the CEM range ranges from 0.75 to 90 kW; the D200L2-2 sits in the middle of that range with 37 kW. Its immediate neighbours are the D225M-6 below it with 30 kW and the D225M-2 above it with 45 kW. 54 CEM models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output37 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size220Lcorrect
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load92 %correct
Efficiency at 75 % load92.4 %correct
Efficiency at half load91.1 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the CEM D200L2-2 have?

The CEM D200L2-2 delivers 37 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
