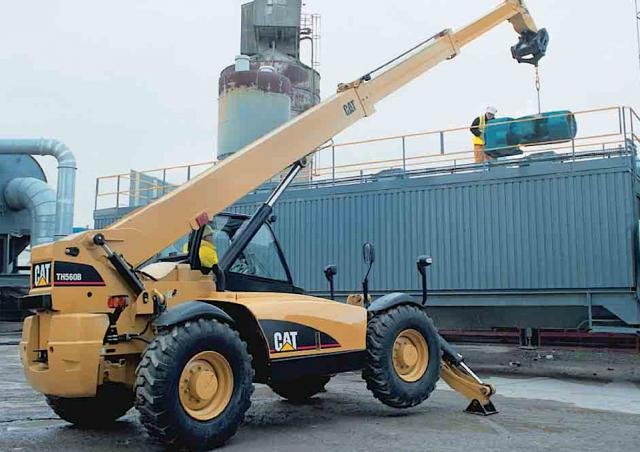

Caterpillar TH560B

Series: Caterpillar Telescopic Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/telehandler

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar TH560B is a model in the Caterpillar Telescopic Forklift series. The engine delivers 101.4 hp (70.8 kW), has 4 cylinders, with a displacement of 4,391.7 cm³. Torque is 402 Nm. Rated speed is 2,200 rpm. The unladen weight is 11,997.5 kg. The wheelbase measures 3,252.2 mm. Ground clearance is 509 mm. The tank holds 120.4 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 113.2 l/min. The hydraulic tank holds 90.1 litres. Working pressure is 250 bar. The electrical system runs on 12 V. The engine fitted is the Cat 3054E. Tyre size: 14,00-24. The Caterpillar Telescopic Forklift series covers 28 models. Rated output within it ranges from 85.2 to 144 hp; the TH560B sits in the lower part of that range with 101.4 hp. Its immediate neighbours are the TH340B below it with 101.3 hp and the TH406 above it with 102.4 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Telehandlers. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCat 3054Ecorrect
Power101.4 hp (70.8 kW)correct
Rated speed2,200 rpmcorrect
Torque402correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,391.7 cm³correct

Dimensions and weights

Wheelbase3,252.2correct
Ground clearance509correct
Unladen weight11,997.5 kgcorrect

Drivetrain and chassis

Gearbox typePower shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size14.00-24correct
System voltage12 Vcorrect

Working data

Pump flow113.2 l/mincorrect
Hydraulic oil capacity90.1 lcorrect
Hydraulic pressure250correct
Fuel tank capacity120.4 lcorrect

Where this model stands

Power-to-weight ratio: 5.9 kW/t (71 kW / 12 t)

Stronger than 29% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar TH560B have?

The Caterpillar TH560B delivers 101 hp.

How much does the Caterpillar TH560B weigh?

The unladen weight is 11,998 kg.

What engine does the Caterpillar TH560B have?

4 cylinders, 4,392 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
