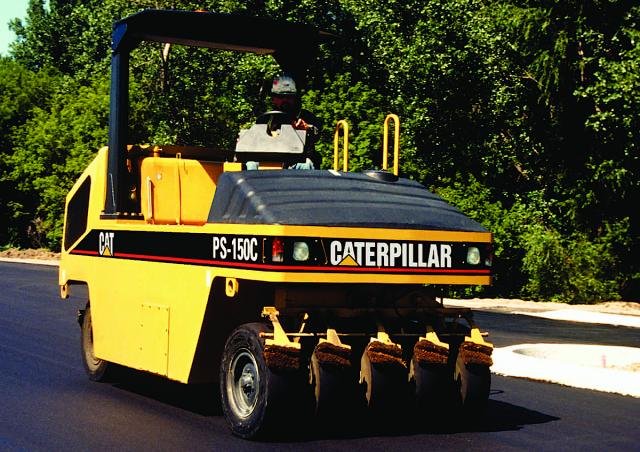

Caterpillar PS150C

Series: Caterpillar Pneumatic Roller

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The PS150C from Caterpillar is part of the Caterpillar Pneumatic Roller series. The engine delivers 101.4 hp (72 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Rated speed is 2,200 rpm. The wheelbase measures 3,340.6 mm. Ground clearance is 268.2 mm. Top speed is 25.7 km/h. The tank holds 173.4 litres. The hydraulic tank holds 55.3 litres. The cooling system holds 16.3 litres. The oil fill is 7.6 litres. The electrical system runs on 24 V. The engine fitted is the 3054C. The Caterpillar Pneumatic Roller series covers 15 models. Rated output within it ranges from 66.9 to 152.1 hp; the PS150C sits in the middle of that range with 101.4 hp. Its immediate neighbours are the PS130 below it with 78.1 hp and the PF300 above it with 104.4 hp. 1091 Caterpillar models across 47 series are on record. The model is listed under Road construction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model3054Ccorrect
Power101.4 hp (72 kW)correct
Rated speed2,200 rpmcorrect
Cylinders4correct
Displacement4,401.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity16.3 lcorrect
Engine oil capacity7.6 lcorrect

Dimensions and weights

Length4,292.6correct
Width1,728.2correct
Wheelbase3,340.6correct
Ground clearance268.2correct

Drivetrain and chassis

Top speed25.7 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity55.3 lcorrect
Fuel tank capacity173.4 lcorrect

Frequently asked questions

How much power does the Caterpillar PS150C have?

The Caterpillar PS150C delivers 101 hp.

What engine does the Caterpillar PS150C have?

4 cylinders, 4,402 cm³ displacement.

How fast does the Caterpillar PS150C go?

Top speed is 25.7 km/h.

What are the dimensions of the Caterpillar PS150C?

4,293 mm × 1,728 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
