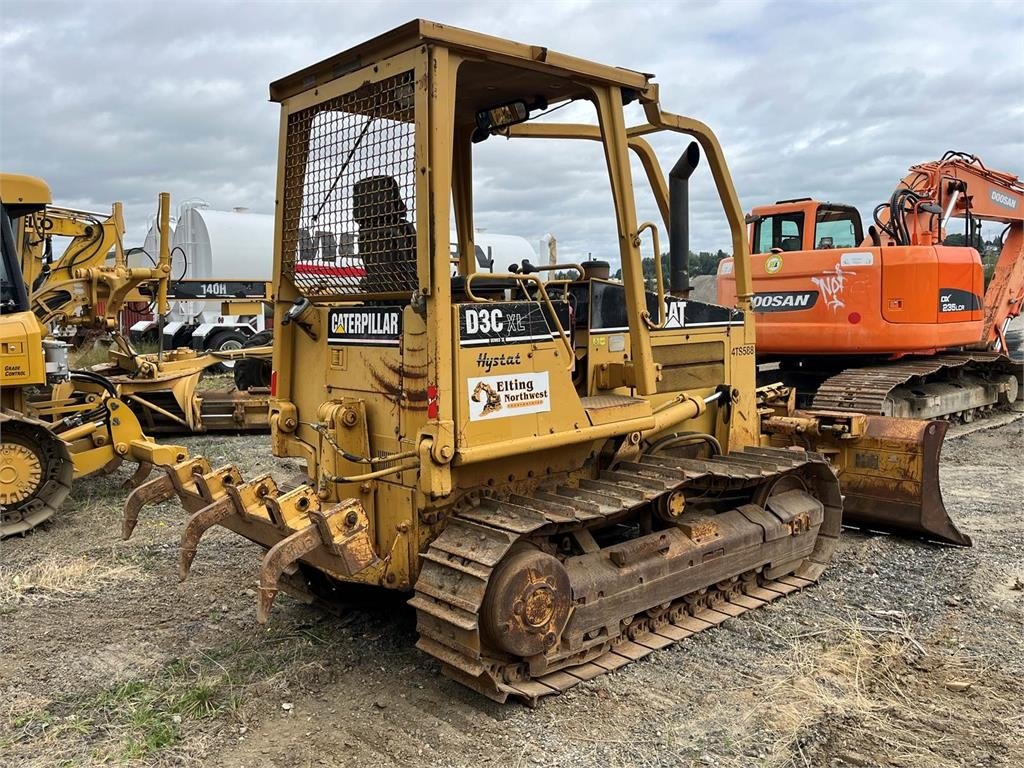

Caterpillar D3C XL Series III Crawler
Series: D3C
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Caterpillar D3C — the smallest dozer in the C-series line
At 52 kW, 7.0 to 8.6 tonnes operating weight and 5.0 to 5.2 litres of displacement, the D3C is the smallest class in Caterpillar's C-series dozer programme. Six live models are on record in the database, differing mainly by suffix: D3C Series II and Series III, plus the LGP (Low Ground Pressure) and XL wide/narrow track variants.
Read on 4 more paragraphs
These suffixes mark technical revision steps within the same base machine. None of the sources checked offer reliable figures on the exact market introduction or on predecessor/successor models outside the C-series, so year figures are deliberately left out here.
The D3C serves as a compact dozer for smaller earthworks sites, in grounds maintenance, and anywhere the heavier D5-through-D9 classes would be too large and too costly to run.
For a used machine in this class, the condition of the track chain links, rollers and final drives matters most. The LGP variant is worth an extra look at its wider but more delicate track shoes.
In short: the D3C is Cat's entry class among C-series dozers, built as Series II and Series III and in standard, LGP and XL form.
Sources: Kennwerte der Modelle Caterpillar D3C, — Caterpillar D3C Series III Crawler Tractor (RitchieSpecs)
Technical data
Engine
| Engine model | Cat 3046correct |
|---|---|
| Power | 79.1 hp (52.9 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,998.1 cm³correct |
| Coolant capacity | 9.1 lcorrect |
| Engine oil capacity | 13.2 lcorrect |
Dimensions and weights
| Height | 2,730 mmcorrect |
|---|---|
| Ground clearance | 301.8correct |
| Unladen weight | 7,231 kgcorrect |
Drivetrain and chassis
| Gearbox type | Power Shiftcorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
Working data
| Pump flow | 54.1 l/mincorrect |
|---|---|
| Hydraulic pressure | 172.4correct |
| Fuel tank capacity | 121.9 lcorrect |
Other data
| Cab height | 2,667correct |
|---|---|
| System voltage | 12 Vcorrect |
More machines with this engine (Cat 3046, 13)
Where this model stands
Power-to-weight ratio: 7.3 kW/t (53 kW / 7.2 t)
Stronger than 14% of the mining equipment in the register — out of 944 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Caterpillar D3C XL Series III have?
The Caterpillar D3C XL Series III delivers 79.1 hp.
How much does the Caterpillar D3C XL Series III weigh?
The unladen weight is 7,231 kg.
What engine does the Caterpillar D3C XL Series III have?
6 cylinders, 4,998 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
