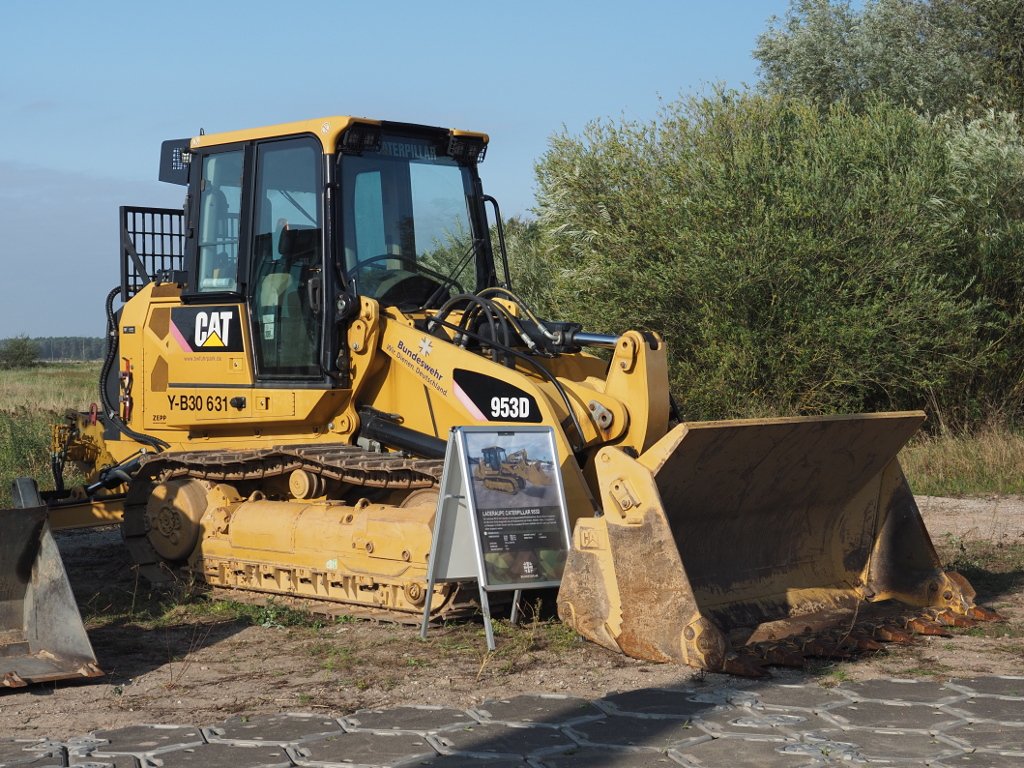

Caterpillar 953D

Series: Caterpillar Crawler Loader

Source: https://commons.wikimedia.org/w/index.php?curid=175818317

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Caterpillar 953D is a model in the Caterpillar Crawler Loader series. The engine delivers 110.4 kW, has 6 cylinders, with a displacement of 6,600.7 cm³. Rated speed is 2,000 rpm. The unladen weight is 15,576.8 kg. Ground clearance is 411.5 mm. Top speed is 9.3 km/h. The tank holds 316.1 litres. The pump delivers 116.6 l/min. The hydraulic tank holds 70 litres. Working pressure is 275.1 bar. The cooling system holds 30.3 litres. The oil fill is 16.7 litres. The electrical system runs on 24 V. The engine fitted is the C6,6 ACERT. The Caterpillar Crawler Loader series covers 31 models. Rated output within it ranges from 46.2 to 205.1 kW; the 953D sits in the middle of that range with 110.4 kW. Its immediate neighbours are the 955L below it with 96.9 kW and the 963 above it with 111.9 kW. 1091 Caterpillar models across 47 series are on record. The model is listed under Wheel loaders. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC6.6 ACERTcorrect
Power110.4 kWcorrect
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement6,600.7 cm³correct
Coolant capacity30.3 lcorrect
Engine oil capacity16.7 lcorrect

Dimensions and weights

Ground clearance411.5correct
Unladen weight15,576.8 kgcorrect

Drivetrain and chassis

Top speed9.3 km/hcorrect
System voltage24 Vcorrect

Working data

Pump flow116.6 l/mincorrect
Hydraulic oil capacity70 lcorrect
Hydraulic pressure275.1correct
Fuel tank capacity316.1 lcorrect

Other data

Height3,102.9correct

Where this model stands

Power-to-weight ratio: 7.1 kW/t (110 kW / 15.6 t)

Stronger than 56% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Caterpillar 953D have?

The Caterpillar 953D delivers 110 kW.

How much does the Caterpillar 953D weigh?

The unladen weight is 15,577 kg.

What engine does the Caterpillar 953D have?

6 cylinders, 6,601 cm³ displacement.

How fast does the Caterpillar 953D go?

Top speed is 9.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
